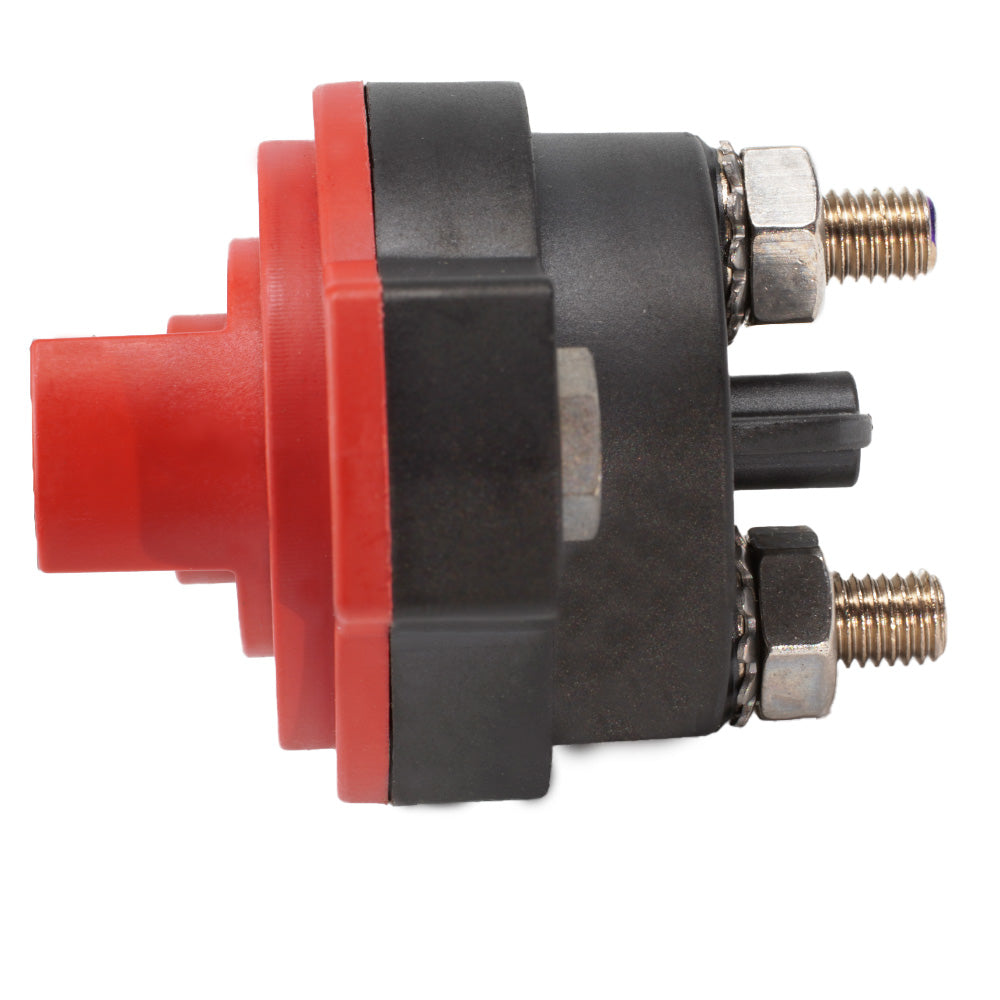

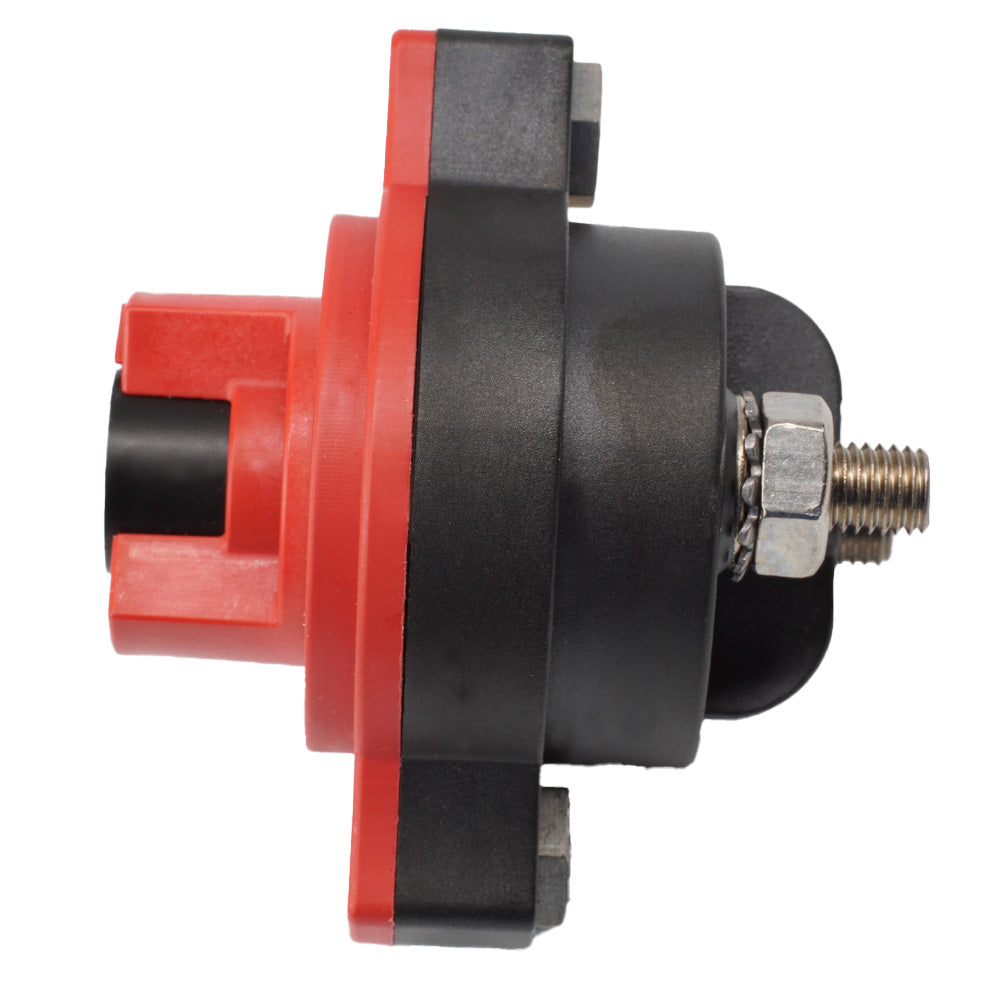

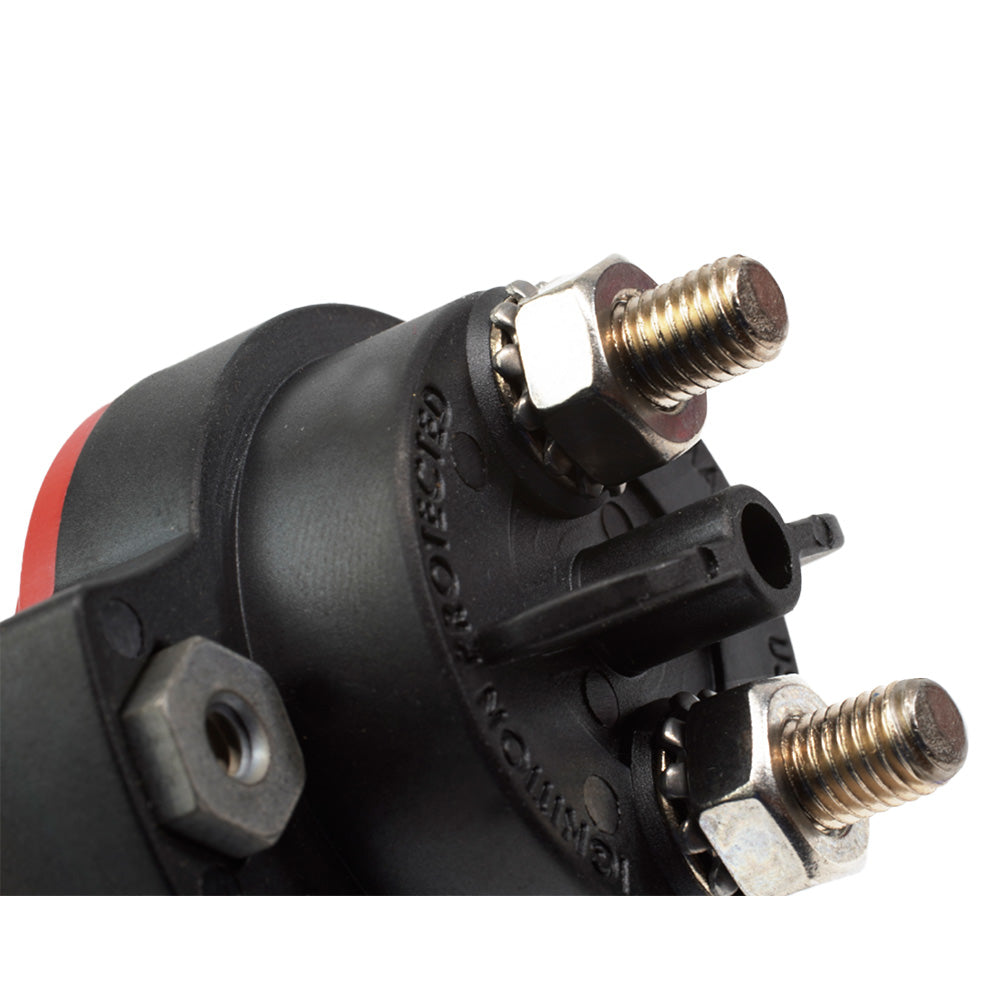

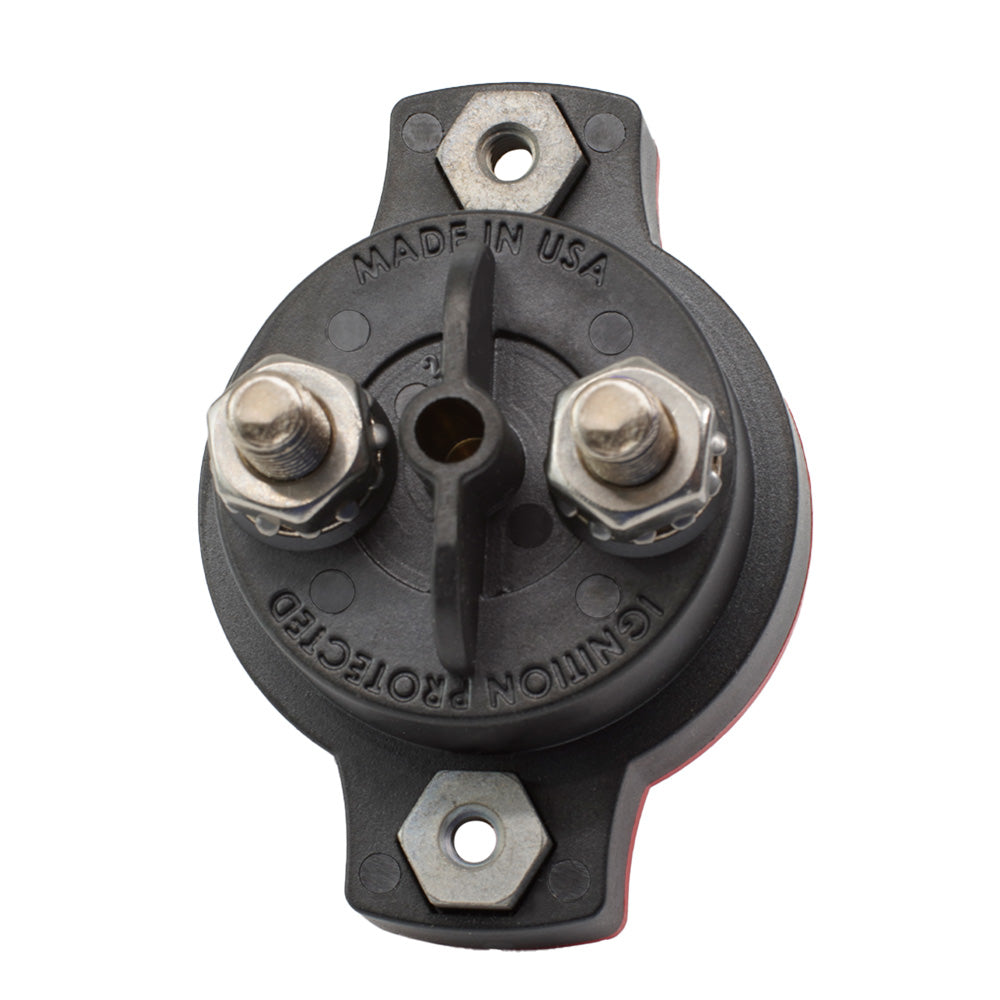

Egis Mobile Electric 4701-40 Mini Circuit Breaker (40A Panel Mount)

This Egis Mobile Electric 4701-40 Mini Circuit Breaker is a versatile 2-in-1 circuit breaker/disconnect switch designed for trolling motor circuit switching applications. It provides both automatic circuit protection and manual on/off switching in one compact and reliable solution.

Applications:

• Protects electrical circuits from short-circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction
• Automatic Circuit Protection and Manual On/Off Switching combine dual functionality in one reliable and compact solution
• Allows for circuit isolation and maintenance of load circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems regardless of the location

Features:

• IP66 sealed against dust and water Intrusion to ensure reliable circuit protection for the life of the electrical system installation
• 42 Vdc rating - easily supports 12, 24, and 36V DC applications. Ideal for trolling motor switching applications
• High electrical and manual switching endurance delivers 2,000 cycles at full current
• High interrupt current - safely protects circuits connected to large paralleled battery banks with significant available power
• 4-year warranty - Egis stands behind its product's ability to meet the user's needs

Specifications:

• Continuous Current Amps: 40
• Max Voltage: 42
• CE Marked: Yes
• Interrupt Current at 14 VDC (Amps): 3,000
• Cycle Switching Endurance: 4,000
• Ingress Protection Rating: IP66

Focal Features:

Easy ON/OFF Rotary Switch: Easy to operate and visually recognize switch position.

Stainless Steel Self-Locking Hardware: Corrosion and vibration resistance for harsh environment applications.

Weatherproof Construction: Sealed against dust and moisture penetration. High temp rated for all installation locations.

Compact Size: Fit more circuit switching/protection on a smaller panel!

Proudly Made in the USA: Made in the USA of high-quality components.

Ignition Protected: Protects against inadvertent shorts from positive terminals to adjacent grounded surfaces

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to .

Learn More:

• Learn more about Circuit Breakers on Wikipedia

Product: Egis Mobile Electric 4701-40 Mini Circuit Breaker (40A Panel Mount)

Brand: Egis Mobile Electric

Model: 4701-40

Shipping Weight: 0.30 lb

Shipping Height: 3.00 in

Shipping Width: 3.00 in

Shipping Length: 5.00 in
