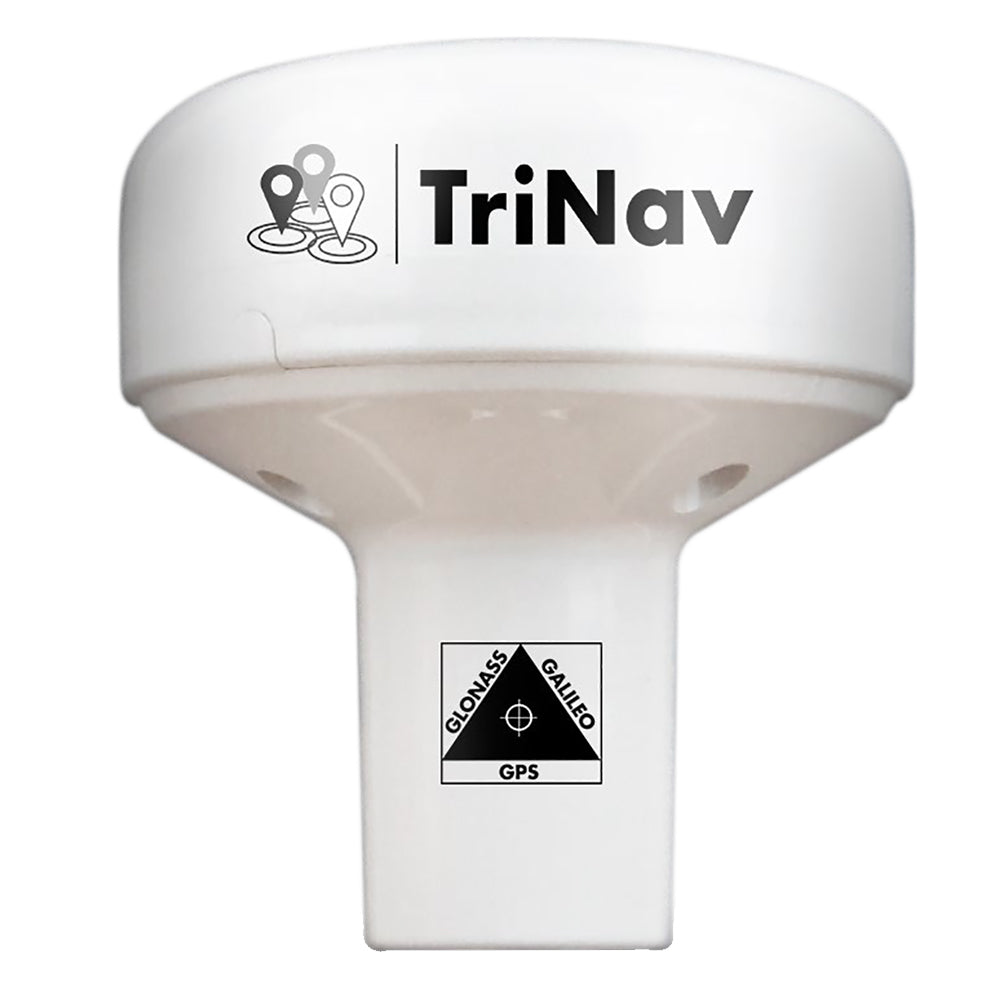

Digital Yacht GPS160 TriNav Sensor - DIY NMEA0183 GPS, GLONASS & Galileo Receiver

The Digital Yacht GPS160 TriNav Sensor is a high-performance positioning sensor that utilizes GPS, GLONASS, and Galileo satellite systems to provide exceptional accuracy and redundancies. With typical accuracy better than 1m, this sensor is ideal for various applications that require precise positioning data.

Product Features:

• 72 channel GPS, GLONASS, and Galileo GNSS positioning receiver
• TriNavT technology combines all satellite data for optimum accuracy
• Can be configured as a dedicated GPS, GLONASS, or Galileo only device
• Sophisticated anti-spoofing algorithm for robust positioning performance and interference rejection
• User/field selectable 4800, 38400, and 115200 baud operation through simple internal DIP switches
• Multiple formats of NMEA data output including datum information, user-configurable through internal DIP switches
• Up to 18Hz update rate (user selectable)
• Ultra-low (<20mA) power consumption at 12V DC
• 10m cable for flexible installation
• Input for MOB switch/system - activates synthetic AIS MOB NMEA output to activate MOB position on plotter
• Professional system (ECDIS) support with datum sentence structure (DTM/GBS/GNS/GRS/GSA/GST)
• Puck installation or fits 3rd party industry standard 1" x 14TPI threaded mount

Product Specifications:

• Model: ZDIGGPS160
• Supported Satellite Systems: GPS, GLONASS, Galileo
• Accuracy: Typically sub 1m
• Update Rate: Up to 18Hz
• Power Consumption: <20mA at 12V DC
• Output: NMEA 0183 (4800, 38400, and 115200 baud programmable)
• Cable Length: 10m
• Compatibility: PC, MAC, Linux (USB variant available)

Description:

The Digital Yacht GPS160 TriNav Sensor is a high-performance positioning sensor that combines GPS, GLONASS, and Galileo satellite systems for exceptional accuracy and redundancies. With TriNavT technology, it offers sub 1m accuracy by utilizing all available satellite data.

This sensor can be easily configured as a dedicated GPS, GLONASS, or Galileo only device, providing flexibility for different applications. Its sophisticated anti-spoofing algorithm ensures robust positioning performance and interference rejection.

With user-selectable update rates of up to 18Hz, the GPS160 provides smoother plotter track displays. It consumes ultra-low power, making it an efficient choice for various installations. The included 10m cable offers flexibility during setup.

The GPS160 supports multiple formats of NMEA data output, including datum information, which can be easily configured through internal DIP switches. It also features an input for MOB switch/system, generating synthetic AIS MOB NMEA output to activate the MOB position on a plotter.

This sensor is compatible with professional systems (ECDIS) and offers support for datum sentence structure (DTM/GBS/GNS/GRS/GSA/GST). It can be installed as a puck or can fit a 3rd party industry standard 1" x 14TPI threaded mount.

Learn More:

• Learn more about GPS on Wikipedia
• Learn more about GLONASS on Wikipedia
• Learn more about Galileo on Wikipedia

Product: Digital Yacht ZDIGGPS160 GPS160 Trinav GPS Sensor

Brand: Digital Yacht

Model: ZDIGGPS160

Shipping Weight: 1.20 lb

Shipping Height: 4.00 in

Shipping Width: 7.00 in

Shipping Length: 10.00 in
