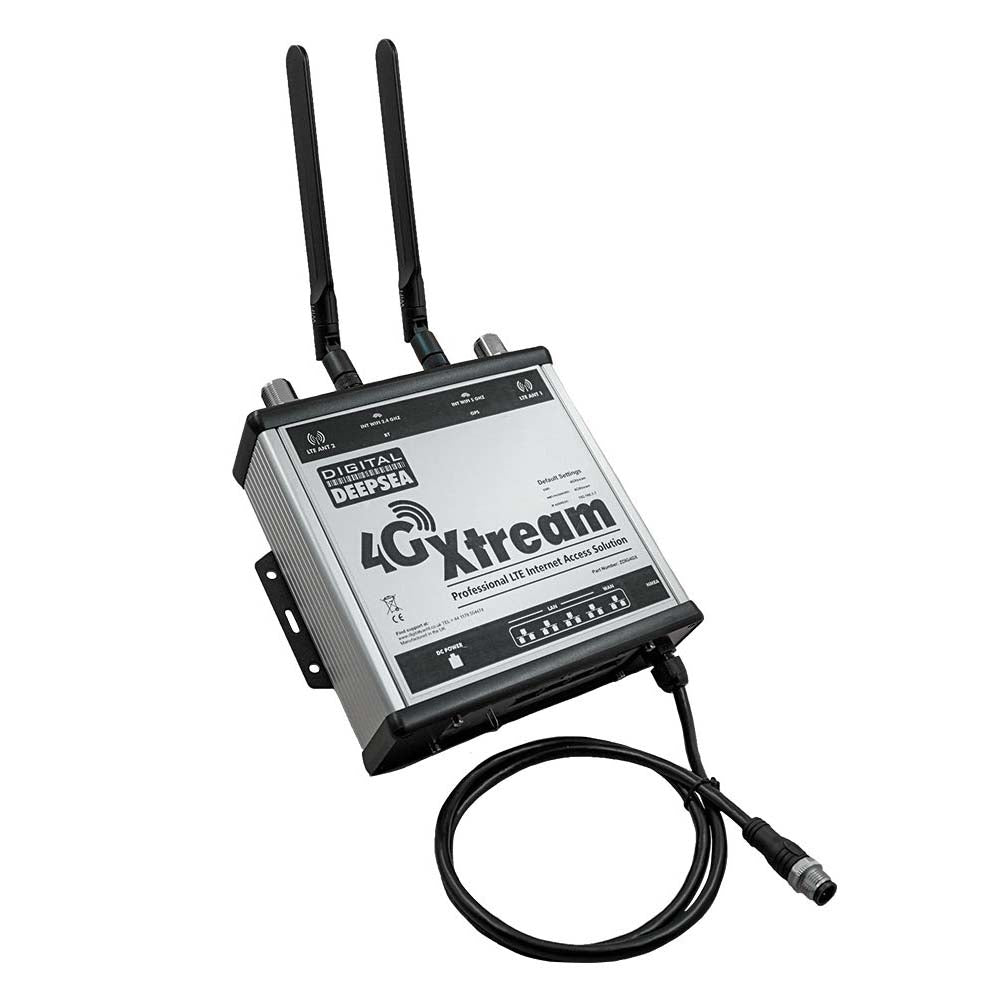

Digital Yacht 4G Extreme Internet & NMEA 2000 Solution - ZDIG4GX-US

The Digital Yacht 4G Extreme Internet & NMEA 2000 Solution - ZDIG4GX-US is a premium LTE (cellular) internet access product that comes with a NMEA 2000 interface. It features the latest Cat 6 LTE MIMO technology and has a range of up to 25NM offshore (network dependent). It is equipped with dual SIM slots that have auto failover or manual selection and two external, high gain, wide bandwidth antennas. The product also has a dual-band integrated wifi router (2.4 & 5 GHz) that is independently configurable.

With a built-in NMEA 2000 interface, the Digital Yacht 4G Extreme Internet & NMEA 2000 Solution - ZDIG4GX-US can transmit NMEA 2000 data over the wireless and wired network to compatible apps. It also has a built-in GPS with an external patch antenna for IOT and tracking applications, as well as a built-in Bluetooth with an antenna for future applications. The product has 3 x LAN ports, 1 x WAN port for additional internet connectivity (e.g., WL510 high power wifi system), and digital input/output connectivity for IOT/control applications (Available Q3 2021). The product is SMS addressable.

The Digital Yacht 4G Extreme Internet & NMEA 2000 Solution - ZDIG4GX-US ships as a complete package with dual external antennas, deck mounting hardware, and cabling. It uses MIMO technology and two external wideband LTE antennas to offer fast connectivity at up to 300 MBs (network dependent). It is ideal for use on large yachts, workboats, tugs, and commercial ships where reliable, low-cost coastal internet and in-port connectivity are required.

The product features independent dual-band (2.4 & 5GHz) wifi for interconnection to mobile devices. This also provides the connectivity for NMEA data so apps on mobile devices can utilize the boat's navigation and instrumentation data. For external hi-power wifi (to access shoreside hotspots), the WL510 is recommended, which connects to the WAN port. The Digital Yacht 4G Extreme Internet & NMEA 2000 Solution - ZDIG4GX-US can then act as a router for this connection and allow the user to switch from wifi to LTE.

Features:

• Latest Cat 6 LTE MIMO technology with range up to 25NM offshore (network dependent)
• Dual SIM slots with auto failover or manual selection
• Two external, high gain, wide bandwidth antennas
• Dual-band integrated wifi router (2.4 & 5 GHz) — independently configurable
• Built-in NMEA 2000 interface to transmit NMEA 2000 data over the wireless and wired network to compatible apps
• Built-in GPS with external patch antenna for IOT and tracking applications
• Built-in Bluetooth with antenna for future applications
• 3 x LAN ports
• 1 x WAN port for additional internet connectivity — eg: WL510 high power wifi system
• Digital input/output connectivity for IOT/control applications (Available Q3 2021)
• SMS addressable

Specifications:

• Product Model: ZDIG4GX-US
• Range: up to 25NM offshore (network dependent)
• Technology: Cat 6 LTE MIMO
• SIM Slots: Dual with auto failover or manual selection
• Antennas: Two external, high gain, wide bandwidth antennas
• Wifi Router: Dual-band integrated wifi router (2.4 & 5 GHz) — independently configurable
• NMEA 2000 Interface: Built-in to transmit NMEA 2000 data over the wireless and wired network to compatible apps
• GPS: Built-in with external patch antenna for IOT and tracking applications
• Bluetooth: Built-in with antenna for future applications
• LAN Ports: 3 x LAN ports
• WAN Port: 1 x WAN port for additional internet connectivity — eg: WL510 high power wifi system
• Digital Input/Output Connectivity: Available Q3 2021
• SMS Addressable: Yes

Learn More:

• LTE (telecommunication)
• NMEA 2000
• Dual SIM
• MIMO

Product: Digital Yacht Zdig4Gx-Us 4G Extreme Internet And Nmea 2000 Solution

Brand: Digital Yacht

Model: ZDIG4GX-US

Shipping Weight: 8.55 lb

Shipping Height: 5.00 in

Shipping Width: 10.00 in

Shipping Length: 27.00 in
