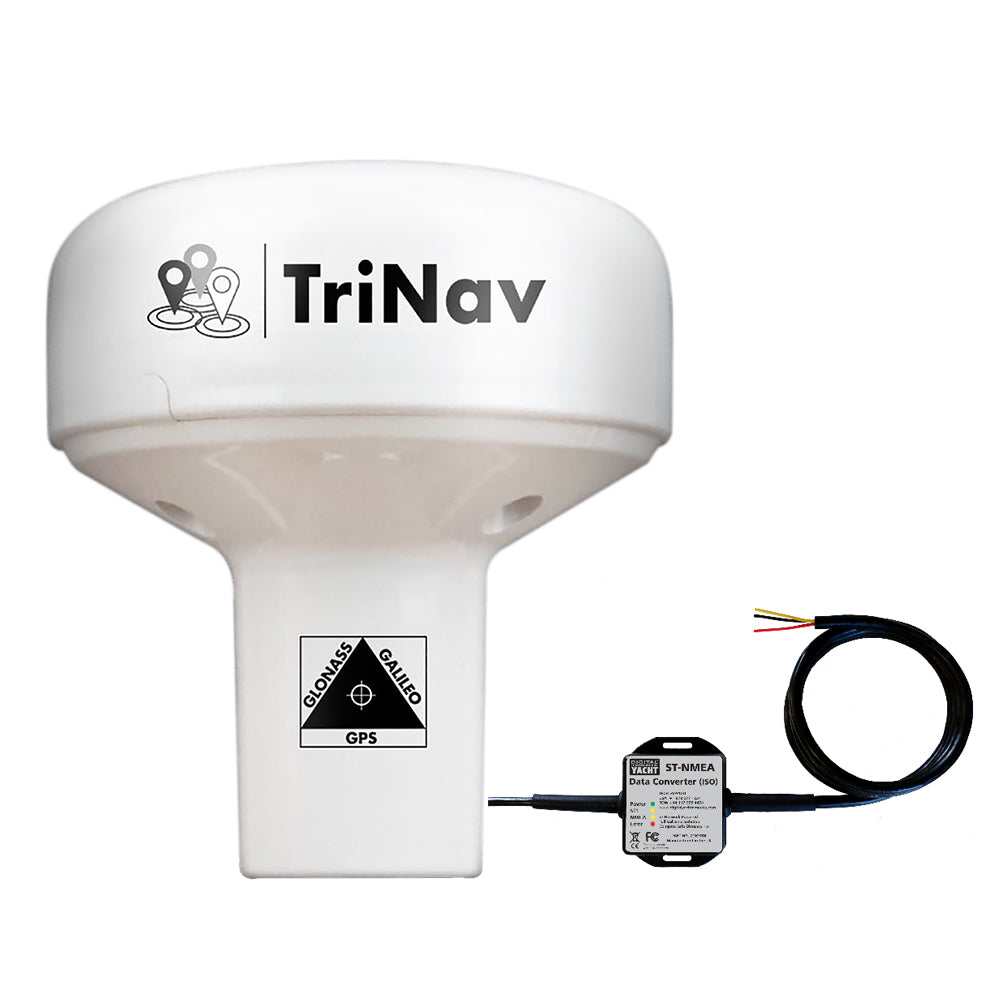

Digital Yacht GPS160 TriNav Sensor Bundle - SeaTalk Interface & ZDIGGPS160ST

The GPS160 TriNav Sensor Bundle with SeaTalk Interface is a high-performance positioning sensor that utilizes GPS, Galileo, and Glonass satellite systems for exceptional positioning accuracies and redundancies. The TriNav technology allows all three systems to be simultaneously utilized for navigation. The GPS160 is field-programmable for a variety of modes such as single GNSS operation (e.g. Galileo only) as well as output configurations such as update rate, NMEA sentence structure, etc.

The GPS160 is available with a NMEA 0183 output (4800, 38400, and 115200 baud programmable) and a USB variant for PC, MAC, and Linux. For NMEA 2000 systems, a bundle is available with iKonvert allowing easy and flexible NMEA 2000 installation without the need for cumbersome drop cables.

The GPS160 supports GPS, Glonass, and Galileo positioning. Our TriNav technology combines signals from all three systems to compute the best possible fix accuracy and reliability. The sophisticated anti-spoofing algorithm provides robust positioning performance and interference rejection.

The GPS160 also supports an external MOB switch or device. When activated, it creates a "synthesized" AIS SART MOB message on the NMEA output which can be interfaced with a local plotter for MOB identification.

Features:

• 72 channel GPS, Glonass, and Galileo GNSS positioning receiver
• Typically sub 1m accuracy thanks to TriNav technology
• Can be configured as dedicated GPS, Glonass, or Galileo only device
• Sophisticated anti-spoofing algorithm for robust positioning performance and interference rejection
• Available in NMEA 0183, NMEA 2000 (with iKonvert interface), and wireless (with WLN10SM) variants
• GPS160USB also available with USB connection for PC/MAC
• User/field selectable 4800, 38400, and 115200 baud operation through simple internal DIP switches
• Multiple formats of NMEA data output including datum information
• Up to 18Hz update rate (user selectable)
• Ultra low (<20mA) power consumption at 12V DC
• Input for MOB switch/system
• Professional system (ECDIS) support with datum sentence structure (DTM/GBS/GNS/GRS/GSA/GST)
• Puck installation or fits 3rd party industry standard 1" x 14TPI threaded mount

Specifications:

• Dimensions: 75mm diameter x 80mm height
• Weight: 0.3kg
• Operating voltage: 10-32V DC
• Operating temperature: -25&degC to +70&degC
• Waterproof rating: IPx6
• GPS receiver channels: 72
• Position accuracy: Typically sub 1m
• Update rate: Up to 18Hz
• Power consumption: <20mA at 12V DC
• Interface: SeaTalk (NMEA 0183, NMEA 2000, and USB variants available)

Learn More:

• GPS Navigation Device
• Galileo Satellite Navigation
• GLONASS
• NMEA 0183
• NMEA 2000

Product: Digital Yacht GPS160 TriNav Sensor Bundle - SeaTalk Interface & ZDIGGPS160ST

Brand: Digital Yacht

Model:

Shipping Weight: 1.40 lb

Shipping Height: 4.00 in

Shipping Width: 7.00 in

Shipping Length: 10.00 in
