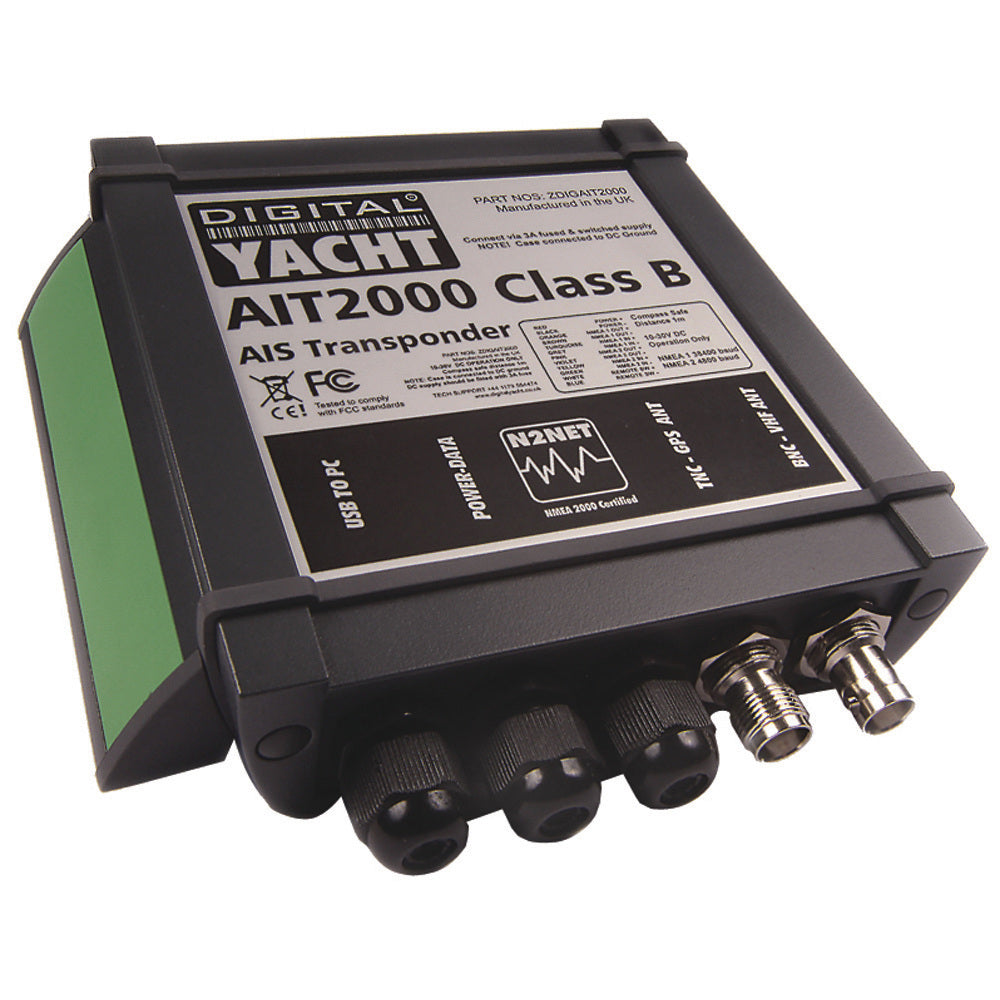

Digital Yacht AIT2000 Class B Transponder with GPS Antenna

The Digital Yacht AIT2000 Class B Transponder with GPS Antenna is a state-of-the-art AIS transponder designed for marine vessels. It features the latest generation AIS technology, offering improved performance and a compact design. This transponder is ideal for use with existing plotter and radar systems, providing seamless integration and enhancing safety on the water.

Product Features:

• Latest generation AIS technology — featuring a brand new AIS transponder (Class B) design
• Ideal for use with existing plotter and radar systems
• Built-in high-performance 50 channel GPS receiver (ideal also as a backup GPS)
• USB Interface for simple plug and play connection to a PC or Mac
• Includes N2Net interface and cable for connection to NMEA 2000 network
• High-speed NMEA output (38,400 baud) — compatible with industry-standard plotters
• Comes complete with GPS antenna with integral 1"x14TPI thread mount
• Requires VHF antenna or dedicated AIS antenna (available as an optional accessory) or splitter (SPL2000)
• Remote Silence Switch option
• Supplied with programming software for user programming*
• Easy to install black box solution

Product Specifications:

• Model: ZDIGAIT2000
• Three outputs: NMEA 0183, NMEA 2000, and USB connection
• Remote silence button option
• Two NMEA 0183 Inputs and Outputs
• Four status LEDs
• Rugged vibration-proof mounting brackets
• Dimensions: Compact and half the size of previous generation transponder
• Weight: Lightweight for easy installation

Product Description:

The AIT2000 uses the latest AIS Transponder technology to squeeze more performance and interfacing options into a housing that is half the size of our previous generation transponder. This ultra-compact Class B AIS Transponder has three outputs; NMEA 0183, NMEA 2000, and USB connection, allowing it to work with every AIS compatible chart plotter or software package on the market today.

Featuring a remote silence button option, two NMEA 0183 Inputs and Outputs, four status LEDs, and rugged vibration-proof mounting brackets, the AIT2000 is the third generation of Digital Yacht AIS transponder and replaces the very popular AIT1000.

For permanent USB connection to a PC or MAC, we recommend adding one of our NMEA to USB Adaptor cables, which provides an extra level of electrical isolation/protection against ground differences and static discharge.

Configuration of your vessel's fixed data, such as MMSI, call sign, boat name, dimensions, etc. is made easy with the included Windows and Mac compatible proAIS2 software*. Once configured, the unit will provide AIS data to a PC or Mac running suitable navigation software or a dedicated chart plotter, such as the latest Garmin, Raymarine, Navico, Standard Horizon, and Furuno units.

As well as transmitting your vessel's position so that other AIS equipped vessels know where you are, the AIT2000, when connected to an existing VHF antenna (via a splitter) or dedicated AIS antenna, will receive all AIS targets within the range of your boat, typically up to 30NM.

With two industry-standard NMEA 0183 outputs, our own N2Net connector for plugging into an NMEA 2000 network, and a simple plug and play USB connection to a PC, the AIT2000 is the perfect AIS transponder solution for all light marine vessels up to 300 tons.

For optimum AIS performance on sailing yachts, we recommend our SPL2000 Splitter featuring "Zero Loss" technology, which allows you to use your boat's existing VHF antenna at the top of the mast for maximum range.

* Except US where dealer programming is required

Learn More:

• Automatic Identification System (AIS) on Wikipedia

Product: Digital Yacht AIT2000 Class B Transponder with GPS Antenna

Brand: Digital Yacht

Model: ZDIGAIT2000

Shipping Weight: lb

Shipping Height: in

Shipping Width: in

Shipping Length: in
