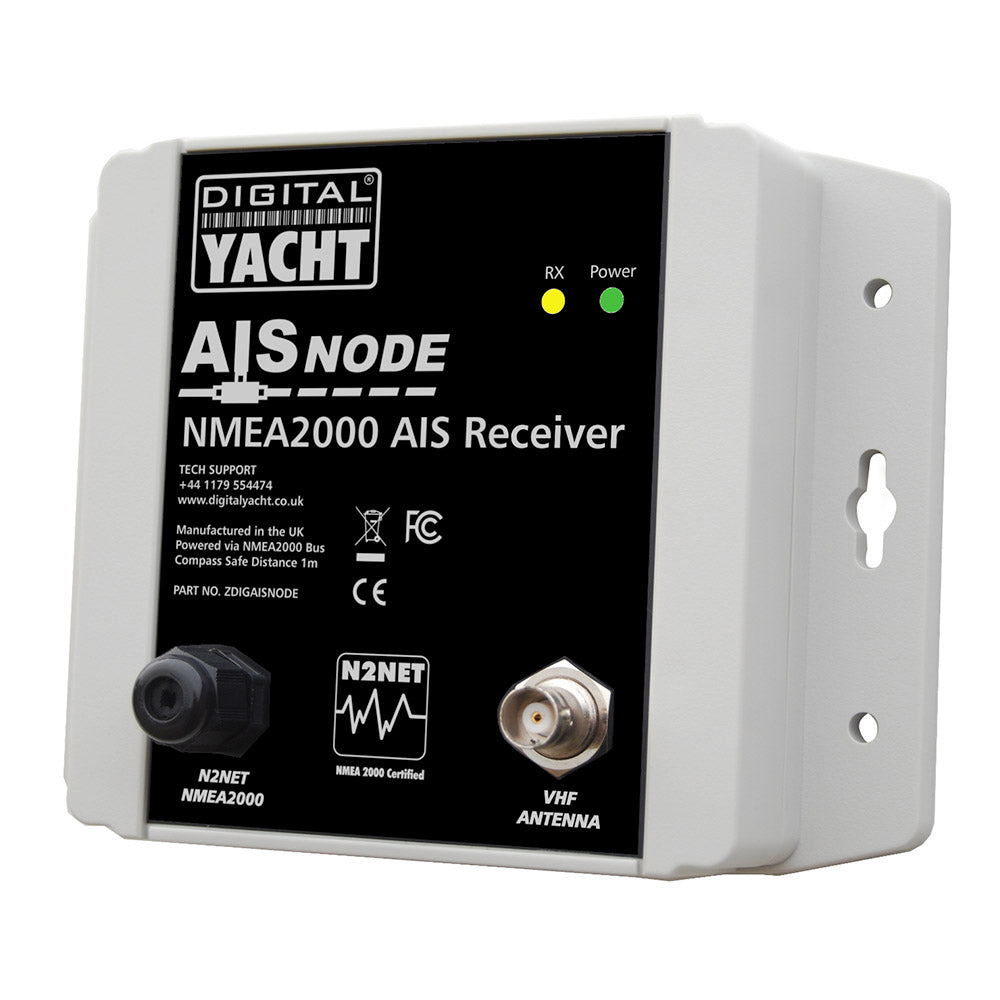

Digital Yacht AISnode Class B Receiver - NMEA 2000 Boat AIS Solution

The Digital Yacht AISnode Class B Receiver is a high-performance AIS receiver designed exclusively for NMEA 2000. With its easy plug-and-play installation and reliable connectivity, this receiver is ideal for boats of all sizes.

Features:

• Application Domain: For Boats
• Type: Class B Receiver
• Single, integral 0.75m NMEA 2000 cable
• Easy installation with spare NMEA 2000 "T Piece"
• Supports all NMEA 2000 AIS message types
• Utilizes high-performance, true dual channel receiver
• Never misses or drops a single target
• Full compatibility with all AIS enabled chart plotters

The AISnode Class B Receiver utilizes the same high-performance, true dual channel receiver as the latest Class B Transponders. This ensures that the receiver will receive every AIS equipped vessel within VHF range and never miss or drop a single target. Additionally, all of the latest NMEA 2000 AIS message types are supported, including AIS SARTs, AtoNs, and Class B static data, ensuring full compatibility with all of the latest AIS enabled chart plotters.

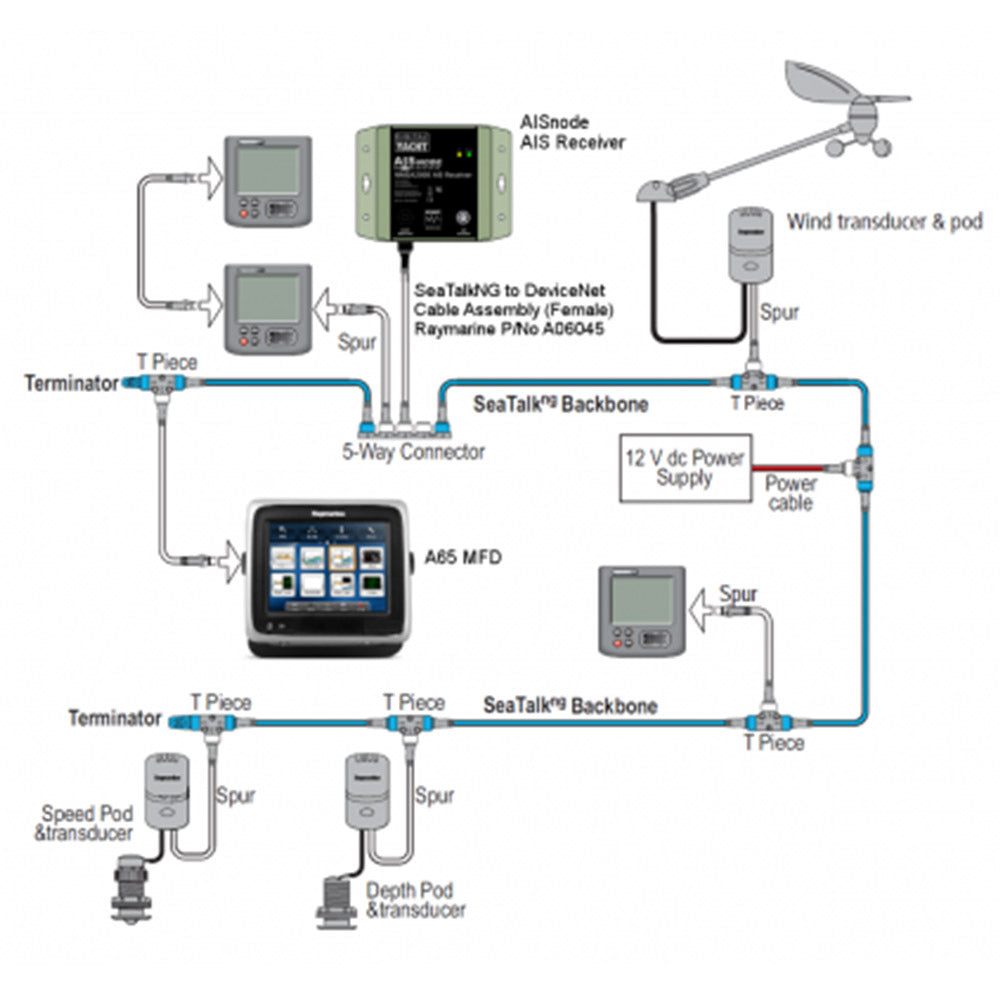

The Digital Yacht AISnode Class B Receiver is incredibly easy to install. With a single, integral 0.75m NMEA 2000 cable that takes power from the network and outputs the AIS data on to the network, the AISnode is incredibly easy to install. Simply find or fit a spare NMEA 2000 "T Piece", screw the AISnode cable to the connection, connect a VHF antenna and the installation is complete.

NMEA 2000 is becoming more and more popular on new boats, and nearly all new chart plotters have an NMEA 2000 interface. With its reliability, easy plug and play connectivity, and industry-standard compatibility, it is not surprising why NMEA 2000 is gradually replacing the older NMEA0183 standard.

The AIT2000 and AIT3000 Class B Transponders already provide NMEA 2000 connectivity, but not all customers want the extra expense of purchasing and installing a transponder. For small chart plotters, an AIS receiver is still a popular choice.

Specifications:

• Dimensions: 125mm x 95mm x 38mm
• Weight: 0.3kg
• Power: 12/24V DC
• NMEA 2000 Connectivity: Single integral 0.75m cable
• AIS Reception: Dual channel receiver, AIS Class B

Product: Digital Yacht AISnode Class B Receiver - NMEA 2000 Boat AIS Solution

Brand: Digital Yacht

Model: ZDIGAISNODE

Shipping Weight: 1.00 lb

Shipping Height: 4.00 in

Shipping Width: 7.00 in

Shipping Length: 10.00 in
