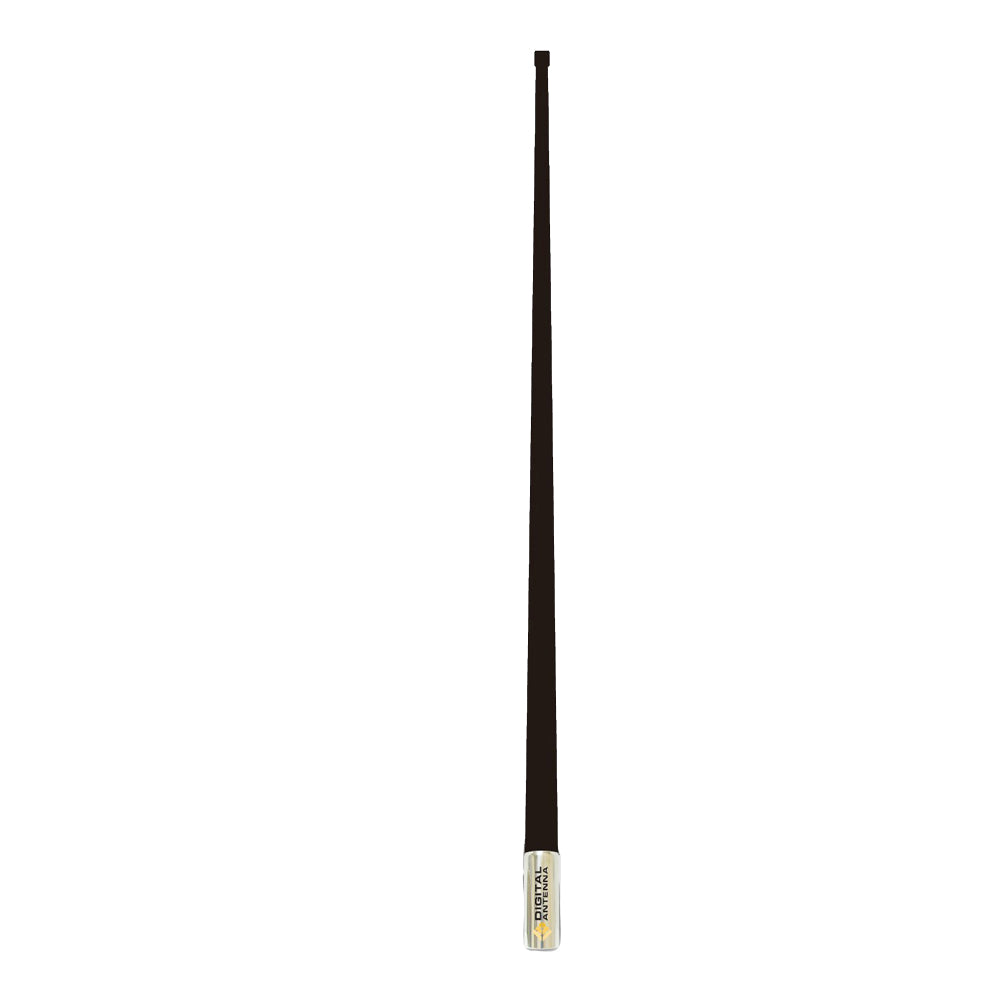

Digital ANT 529-VB-S 8ft 6dB VHF Antenna - Black Cable

The Digital ANT 529-VB-S 8ft 6dB VHF Antenna - Black Cable is the ultimate, award-winning VHF antenna that combines 6 dB gain, ruggedness, and a pristine finish to give you the most superior antenna available. Built to withstand high speeds, these antennas are ideal for radar arches and T-tops on speedboats, yachts, and commercial vessels. Even in the harshest conditions, these antennas will maintain their beautiful glossy finish for years.

Product Features:

• Powerful brass radiators
• Soldered connections
• Power directing ferrite choke bead
• High gloss urethane finish
• 316 stainless steel ferrule
• 6dB gain

Customers and installers love the 500 GOLD Series easy installation connector system. The gold factory-attached mini-UHF female connector with PL-259 (UHF) adapter makes connecting to the radio easy, eliminating the need to solder connectors. All of our antennas are made in the USA, assembled, tested, and tuned by hand for maximum performance, quality, and durability.

Specifications:

• Length: 94.75"
• Mount: Standard 1" - 14 threaded base
• Connector: Gold factory-attached mini-UHF female with mini-UHF male to UHF male (PL259) adapter
• Cable: Includes 20' of our low-loss, tinned braid, foil shielded, UV stable RG-8X marine cable
• Gain: 6dBi
• VSWR: <2.0:1 = 152.8-160.8 MHz (8 MHz)
• Impedance: 50 ohms
• Maximum input power: 100 watts
• Exterior finish: Black, UV stable poly-urethane coating
• Ferrule: 316 Stainless Steel
• Wind Rating: 105 mph
• RF Connector: Mini-UHF female (factory attached) and PL-259 adapter

What's in the Box:

• Antenna - Black with 20' cable
• PL-259 Adapter

Learn More:

• VHF Antenna on Wikipedia
• Radar Arch on Wikipedia
• T-Top on Wikipedia

Product: Digital ANT 529-VB-S 8ft 6dB VHF Antenna - Black Cable

Brand: Digital Antenna

Model: 529-VB-S

Shipping Weight: 5.60 lb

Shipping Height: 3.00 in

Shipping Width: 3.00 in

Shipping Length: 95.00 in
