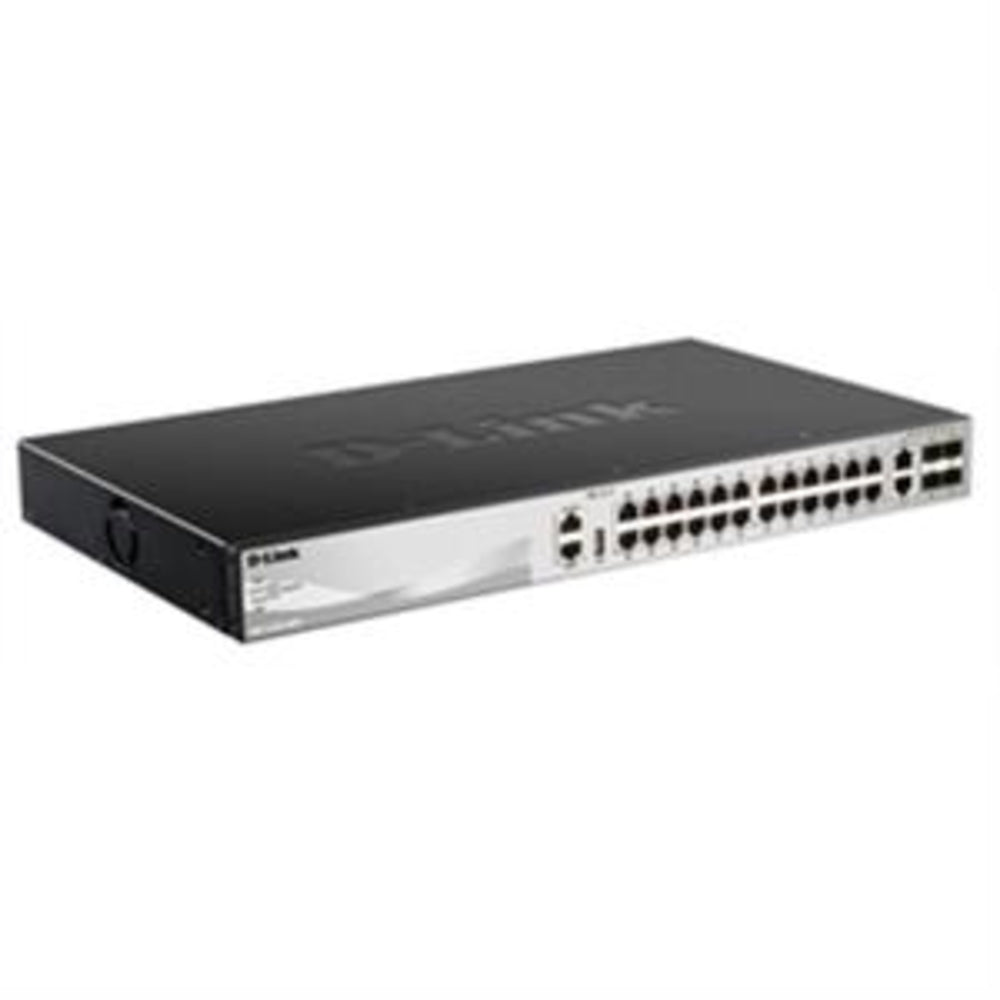

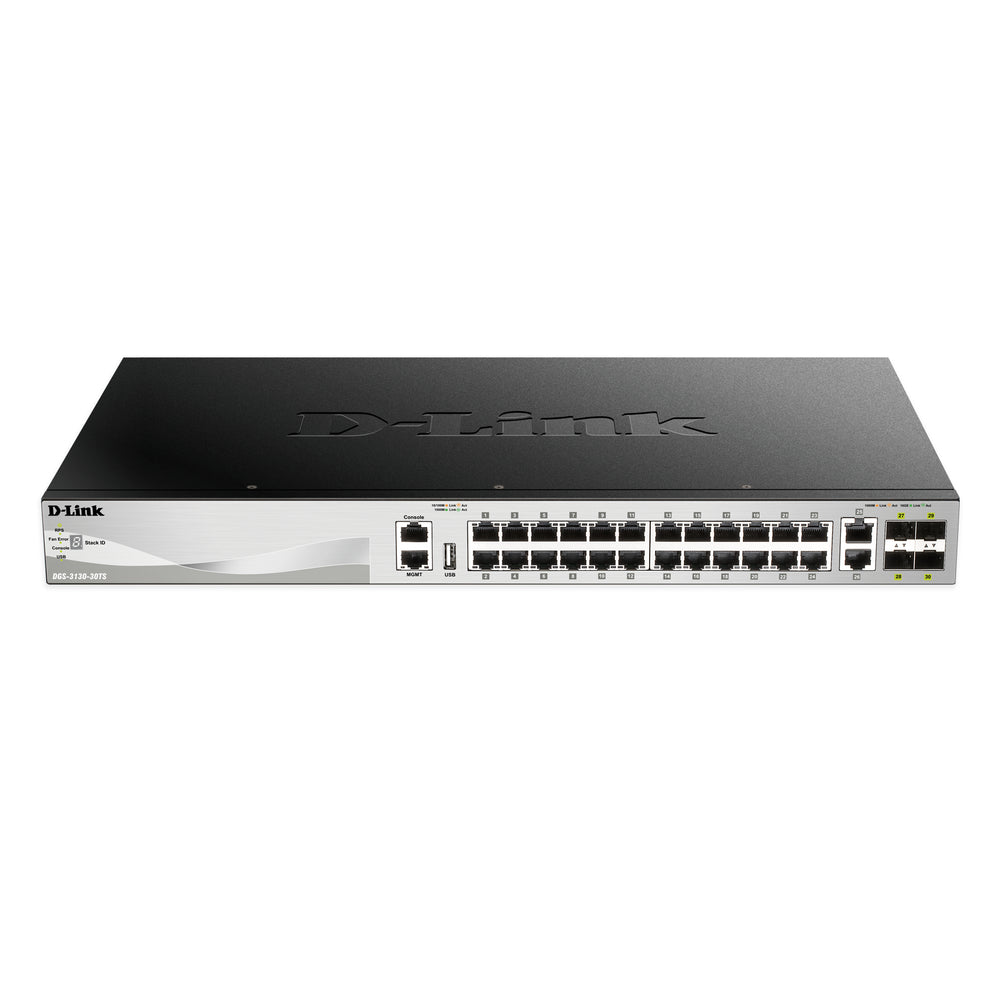

D-Link Systems DGS-3130-30TS DGS-3130 Series 30-Port L2+ Fully Managed Gigabit

The D-Link Systems DGS-3130-30TS is a fully managed Gigabit Ethernet switch from the DGS-3130 Series, designed to provide secure connectivity in enterprise or metro Ethernet access networks. It offers a range of features to enhance network reliability, security, and performance.

Features:

• Switch type: Managed
• Switch layer: L3
• Quality of Service (QoS) support: Yes
• MIB support: RFC 1213; RFC 4188; RFC 1157, 2571-2576; RFC 1907; RFC 1757, 2819; RFC 2021; RFC 1398, 1643, 1650, 2358, 2665; RFC 2674 802.1p 2233, 2863 IF MIB; RFC 2618; RFC 2620; RFC 2925; RFC 2674, 4363; RFC 1065, 1066, 1155, 1156, 2578; RFC 1215; RFC 1212; RFC 1215;
• Web-based management: Yes
• ARP inspection: Yes
• Basic switching RJ-45 Ethernet ports quantity: 24
• Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
• SFP+ module slots quantity: 4
• Copper ethernet cabling technology: 10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T
• USB 2.0 ports quantity: 1
• Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3az, IEEE 802.3x
• Head-of-line (HOL) blocking: Yes

Specifications:

• 24x 10/100/1000BASE-T PoE, 2x 10GBASE-T, 4x 10G SFP+
• Switching capacity: 168 Gbps
• Forwarding rate: 125 Mpps
• Dimensions: 440 x 250 x 44 mm
• Weight: 2.98 kg

Product Description:

The D-Link Systems DGS-3130-30TS is a fully managed Gigabit Ethernet switch from the DGS-3130 Series. It is designed to provide secure connectivity in enterprise or metro Ethernet access networks. With its multicast and enhanced security features, this switch is an ideal solution for Gigabit access layer deployment.

The DGS-3130-30TS offers 24 10/100/1000 Mbps Gigabit Ethernet ports, 2 10GBASE-T ports, and 4 10G SFP+ ports. It also supports Power over Ethernet (PoE) with 24 PoE Gigabit Ethernet ports. The switch supports IEEE 802.3af and IEEE 802.3at PoE standards, with a default power budget of 370 watts that can be expanded to 740 watts with the DPS-700 redundant power supply.

For enhanced network reliability, the DGS-3130-30TS incorporates essential features such as Spanning Tree Protocols (STP, RSTP, MSTP), Loopback Detection (LBD), Broadcast Storm Control, and ITU-T G.8032 Ethernet Ring Protection Switching (ERPS). It also supports dynamic Link Aggregation Port Trunking for load sharing and redundancy backup.

The switch provides comprehensive security features including Multi-layer and Packet Content Access Control Lists (ACL), Storm Control, and IP-MAC-Port Binding (IMPB) with DHCP Snooping. It also supports authentication mechanisms such as 802.1X, Web-based Access Control (WAC), and MAC-based Access Control (MAC) for strict access control policies.

With its Power over Ethernet support, the DGS-3130-30TS simplifies the deployment of PoE-enabled devices such as surveillance cameras and access points. It eliminates the need for dedicated power supplies and reduces cable clutter, allowing PoE devices to be installed in remote locations.

The DGS-3130-30TS implements versatile traffic management features, including QoS/CoS support for prioritizing critical network services, L2 Multicast support for IPTV applications, and ISM VLAN for multicast stream optimization and better security. It also offers a Lifetime Warranty and Next Business Day (NBD) hardware replacement, ensuring long-term customer confidence.

Learn More:

For more information about the D-Link Systems DGS-3130-30TS, you can visit its Wikipedia page.

Product: D-Link Systems Dgs-3130-30Ts Dgs-3130 Series 30-Port L2+ Fully Managed Gigabit

Brand: D-Link

Model: DGS-3130-30TS

Shipping Weight:

Shipping Height:

Shipping Width:

Shipping Length:
