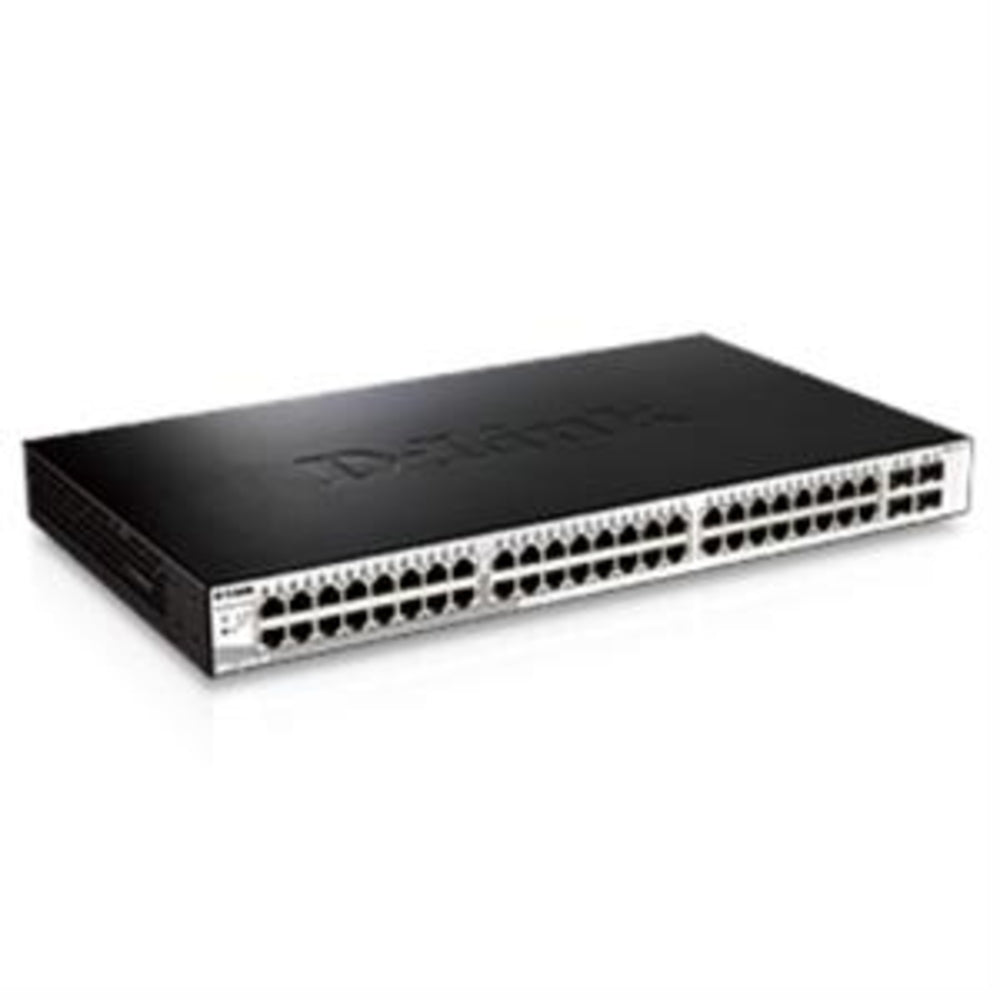

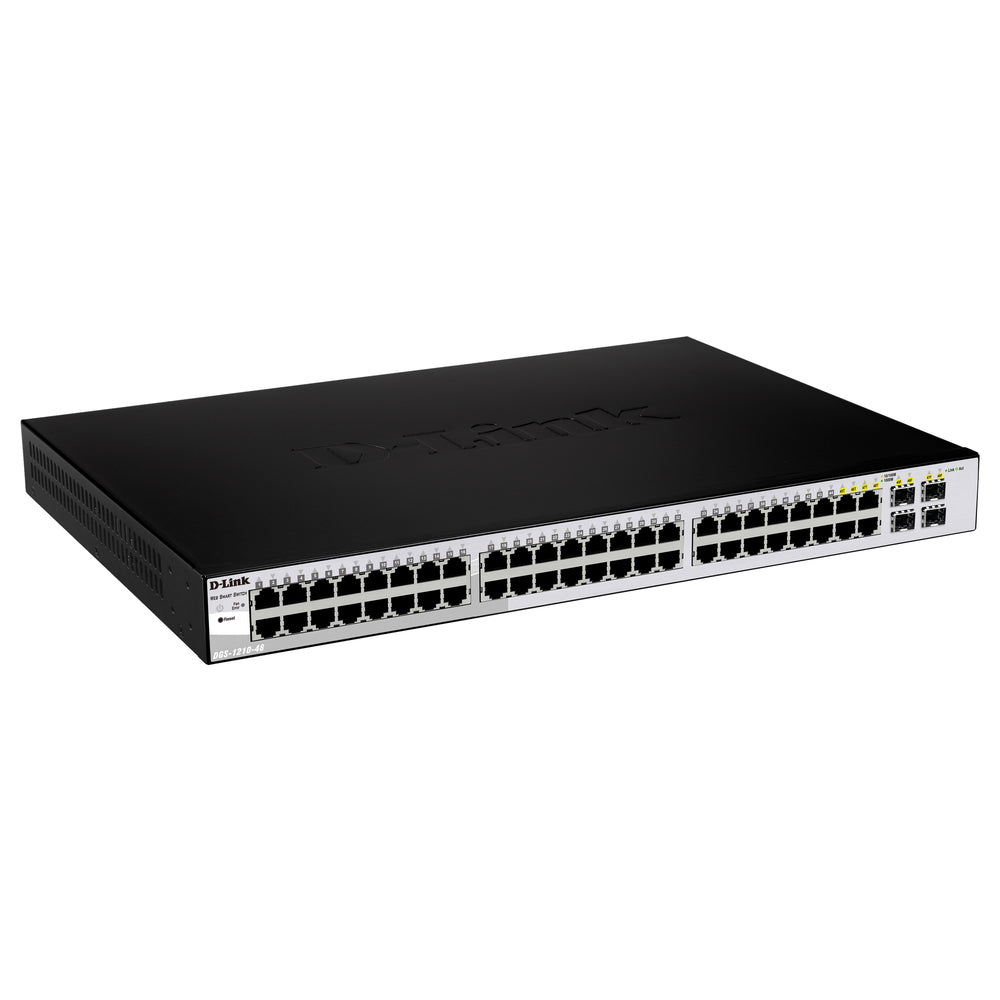

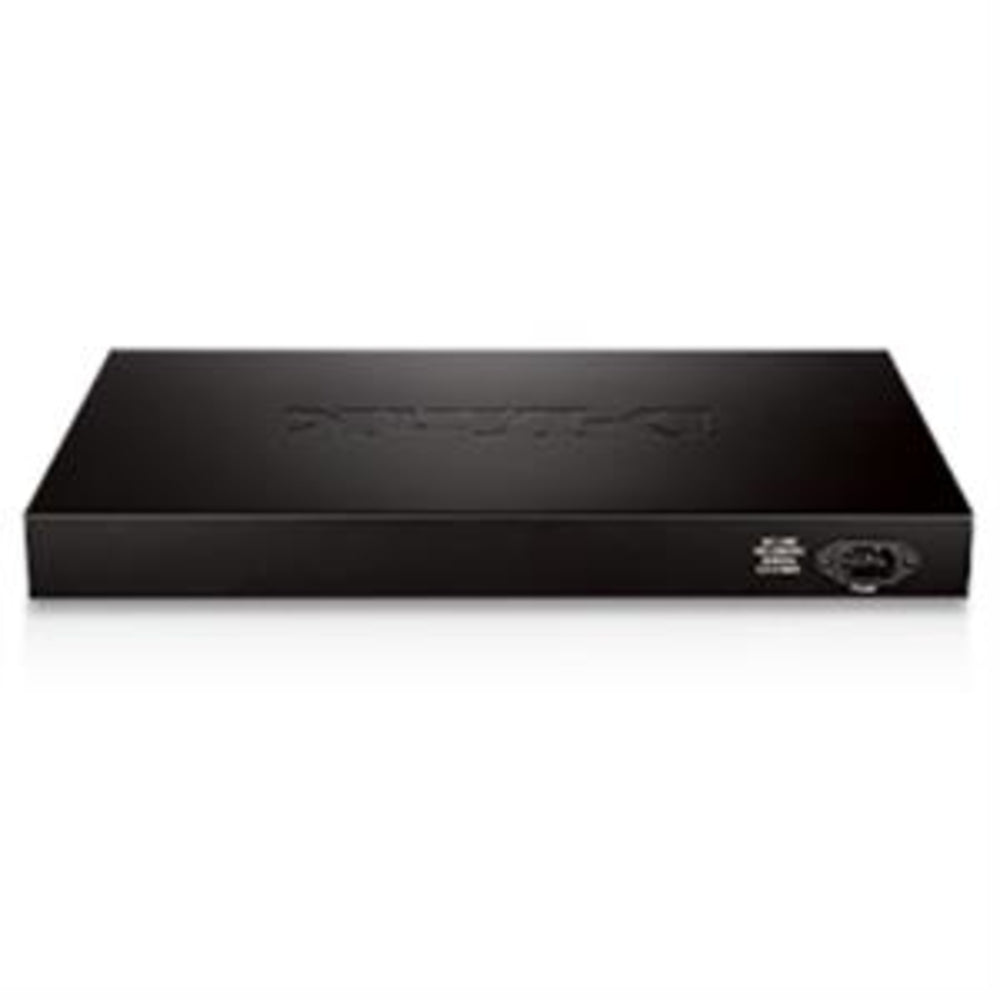

D-Link DGS-1210-52 Network 52-port Gigabit Smart Switch with 4 Combo SFP Ports - Retail

The D-Link DGS-1210-52 is a high-performance 52-port Gigabit Smart Switch designed for small and medium-sized businesses. It features eco-friendly operation with D-Link Green Technology, IEEE 802.3az Energy Efficient Ethernet compliance, and a 104 Gbps switching capacity. The switch also offers advanced security features, web-based management, and true plug & play functionality. Additionally, it supports fibre media via 4 dedicated SFP ports and offers DSCP and QoS with auto voice VLANs for VoIP.

Specifications

• Mfr Part Number: DGS-1210-52
• Ports: 48x 10/100/1000 Mbps Ports, 4x Dual-Speed SFP Ports
• Port Standards & Functions:
  • IEEE 802.3 10BASE-T Ethernet
  • IEEE 802.3u 100BASE-TX Fast Ethernet
  • IEEE 802.3ab 1000BASE-T Gigabit Ethernet
  • IEEE 802.3x Flow Control for Full-Duplex Mode
  • Auto-negotiation
• Network Cables: UTP Cat.5, Cat.5e (100m max); EIA/TIA-568 100-ohm STP (100m max)
• Full/Half Duplex: Full/half duplex for 10/100Mbps speeds; Full duplex for Gigabit speed
• Media Interface Exchange: Auto or configurable MDI/MDIX
• Performance:
  • Switching Capacity: 104 Gbps
  • Transmission Method: Store-and-forward
  • MAC Address Table: 16,000 entries per device
  • MAC Address Update: Up to 256 static MAC entries; Enable/disable auto-learning of MAC addresses
  • Maximum 64 Bytes Packet Forwarding Rate: 77.4 Mpps
  • PacketBuffer Memory: 1 MB per device
• Software:
  • L2 Features:
    • MAC Address Table: 16,000 entries
    • Flow Control: 802.3x Flow Control; HOL Blocking Prevention
    • IGMP Snooping: IGMP v1/v2 Snooping; Supports 256 IGMP groups; Supports at least 64 static multicast addresses; IGMP per VLAN; Supports IGMP Snooping Querier
    • Spanning Tree Protocol: 802.1D STP; 802.1w RSTP
    • Loopback Detection
    • 802.3ad Link Aggregation: Max 26 groups per device/8 ports per group
    • Port Mirroring: One-to-One, Many-to-One, Supports Mirroring for Tx/ Rx/ Both
    • Multicast Filtering: Forwards all unregistered groups; Filters all unregistered groups
    • LLDP, LLDP-MED
  • VLAN:
    • 802.1Q
    • VLAN Group -Max 256 static VLAN groups; Max 4094 VIDs
    • Management VLAN
    • Asymmetric VLAN
    • Auto Voice VLAN -Max 10 user-defined OUI, Max 8 default OUI
    • Auto Surveillance VLAN
  • QoS (Quality of Service):
    • 802.1p Quality of Service: 4 queues per port
    • Queue Handling: Strict, Weighted Round Robin (WRR)
    • CoS Based on: 802.1p Priority Queues, DSCP, TOS
    • Bandwidth Control: Port-based (Ingress/Egress, min granularity for 10/100/1000Base-T ports is 64 Kb/s)
  • Access Control List (ACL):
    • Max 50 profiles
    • Max 450 rules shared by profiles
    • ACL Based on -MAC Address; IPv4 Address (ICMP/IGMP/TCP/UDP); 802.1p; DSCP; Ether type
    • ACL Actions -Permit; Deny
  • Security:
    • Port Security - Supports up to 64 MAC addresses per port
    • Broadcast/ Multicast/ Unicast Storm Control
    • Static MAC
    • D-Link Safeguard Engine
    • DHCP Server Screening
    • Trusted Host
    • ARP Spoofing Prevention -Max 64 entries
    • SSL - Supports v1/v2/v3; Supports IPv4/IPv6
    • Traffic Segmentation
    • Smart Binding - Supports 512 entries of IP-MAC-Port binding; Discover connected devices and click to bind; Inspect ARP packets and/or IP packets; Supports DHCP Snooping
  • Management:
    • Multi-Language Web-based GUI - English (default); Simplified Chinese; Traditional Chi

Learn More

• D-Link Wikipedia
• Gigabit Ethernet Wikipedia
• IEEE 802.1Q Wikipedia

Product: D-Link DGS-1210-52 Network 52-port Gigabit Smart Switch with 4 Combo SFP Ports - Retail

Brand: D-Link

Model: DGS-1210-52

Shipping Weight:

Shipping Height:

Shipping Width:

Shipping Length:
