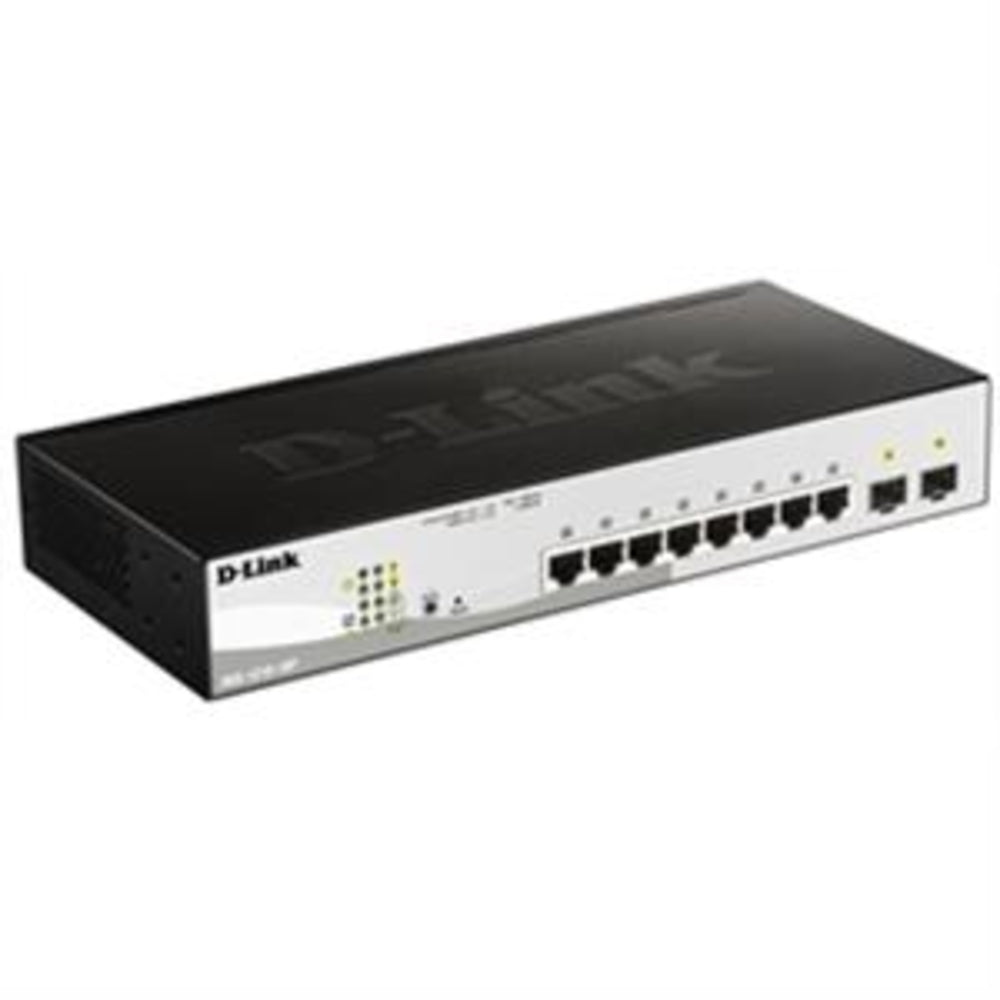

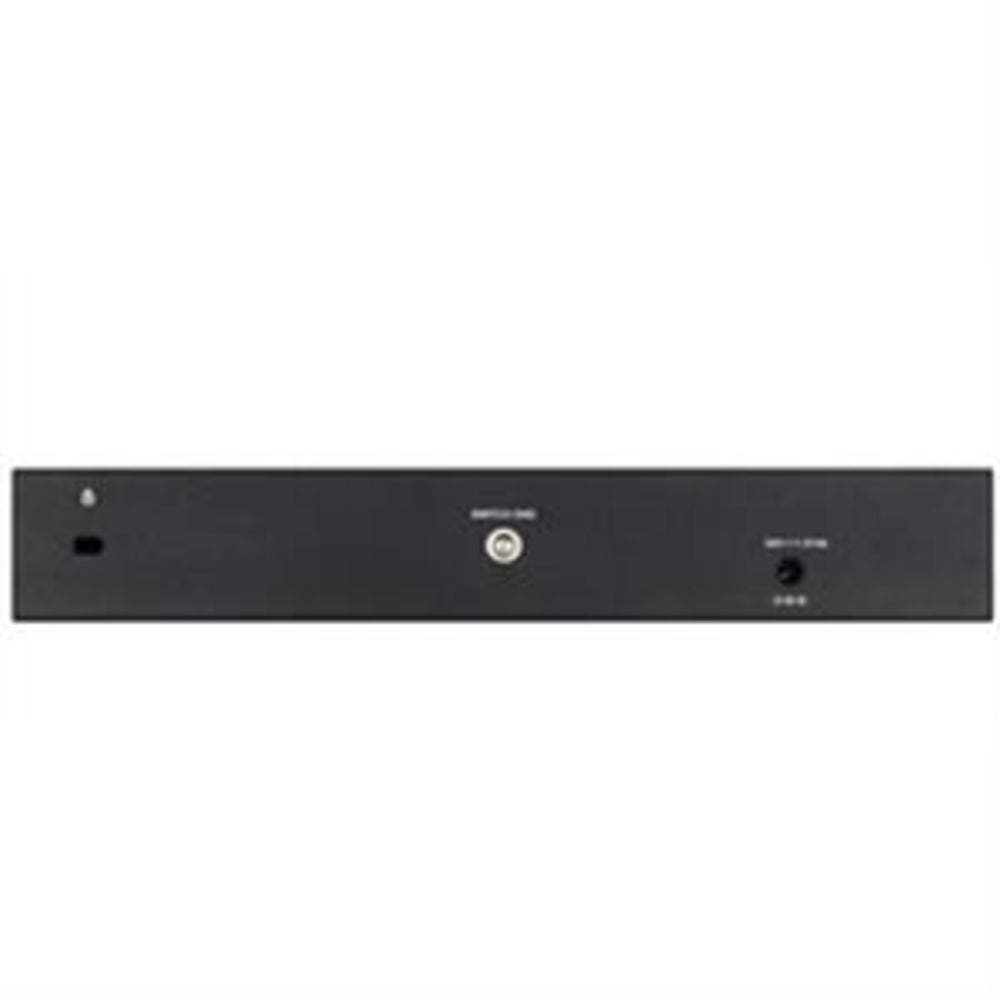

D-Link DGS-1210-10P Network Smart 8-Port Gigabit PoE Switch 2 Combo SFP Retail

The D-Link DGS-1210 Series Smart Managed Switches are designed to provide increased Power over Ethernet (PoE) output, a range of physical interface types, multiple management interfaces, and advanced Layer 2 features. These switches offer a cost-efficient and flexible solution for expanding any business network.

Overview

The DGS-1210 Series switches support 8, 24, or 48 10/100/1000BASE-T ports, and each switch also supports an additional 2 or 4 Gigabit SFP ports for optical connections using multimode or singlemode SFP transceivers.

PoE Support

Five of the nine models in the DGS-1210 series family support Power-over-Ethernet capabilities, simplifying deployments with IP cameras, VoIP phones, wireless access points, and other powered devices. These models include the DGS-1210-10P, DGS-1210-10MP, DGS-1210-28P, DGS-1210-28MP, and DGS-1210-52MP. The switches also support time-based PoE, allowing administrators to set a time window that determines when each port's PoE power is turned on and off. All PoE models support the IEEE 802.3af and 802.3at standards, and each PoE power budget varies per model.

General

• Hardware Version: Rev. F
• 10/100/1000 Ports: 8
• 100/1000 SFP Ports: 2
• Port Standards and Functions:
  • IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
  • IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
  • IEEE 802.3u 100BASE-FX 100 Mbps over fiber optic
  • IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted-pair copper)
  • IEEE 802.3z 1000BASE-X 1 Gbps over fiber optic
  • IEEE 802.3az Energy Efficient Ethernet (EEE)
  • IEEE 802.3x Flow Control
  • IEEE 802.3af/at compliance (for PoE ports on PoE models)
• Network Cables: UTP Cat. 5, Cat. 5e (100 m max.)
• Duplex Mode:
  • Full/half-duplex for 10/100 Mbps
  • Full-duplex for 1000 Mbps
• Media Interface Exchange: Auto MDI/MDIX adjustment for all twisted-pair ports
• Switching Capacity: DGS-1210-10P: 20 Gbps
• Transmission Method: Store-and-forward
• MAC Address Table: 8K entries
• Static MAC Addresses: 256 entries
• Max. 64 Byte Packet Fwd Rate: DGS-1210-10P: 14.88 Mpps
• Packet Buffer Memory: DGS-1210-10P: 4.1 Mbits
• CPU Memory: DDR3 128 MB
• Flash Memory: 32 MB

Power over Ethernet (PoE)

• PoE Standards: DGS-1210-10P: 802.3af (PoE) and 802.3at (PoE+)
• PoE Capable Ports: DGS-1210-10P: Ports 1 - 8 (PoE+)
• PoE Power Budget: DGS-1210-10P: 65 W
• LEDs:
  • Power per device
  • Console per device
  • Link/Activity/Speed per port
  • PWR Max

Physical and Environmental

• Power Input: DGS-1210-10P: 54.0 V DC external power adapter
• Max. Power Consumption (PoE enabled): DGS-1210-10P: 81.9W/100V, 80.6W/240V
• Max. Power Consumption (PoE disabled): DGS-1210-10P: 7.6W/100V, 7.5W/240V
• Standby Power Consumption: DGS-1210-10P: 2.5 W/100V, 2.5W/240V
• Acoustics: DGS-1210-10P: 0 dB(A)
• Heat Dissipation: DGS-1210-10P: 279.59 BTU/hr (100 V),275.04 BTU/hr (240 V)
• Fans: DGS-1210-10P: No
• Operating Temperature: 23^oF to 122^oF (-5^oC to 50^oC)
• Storage Temperature: -4^oF to 158^oF (-20^oC to 70^oC)
• Operating Humidity: 0% to 95% relative humidity
• Storage Humidity: 0% to 95% relative humidity

MTBF

DGS-1210-10P: 729,258 hours

EMI Certifications

CE Class A, VCCI Class A, FCC Class A, BSMI, CCC

Safety Certifications

CB, UL, BSMI, CCC

Software Features

L2 Features: MAC Address Table, VLAN Group, Quality of Service (QoS), CoS based on 802.1p priority, DSCP based on ToS, Bandwidth Control, Port-based (ingress/egress, min. granularity 8 Kb/s) and flow-based (min. granularity 64 Kb/s) rate limiting, Broadcast/Multicast/Unicast storm control, Static MAC, IGMP snooping, and MLD snooping, Spanning Tree Protocol, 802.3ad Link Aggregation, Port Mirroring, Cable Diagnostics, Link Layer Discovery Protocol (LLDP), LLDP-MED, and DHCP Relay Option 82.
