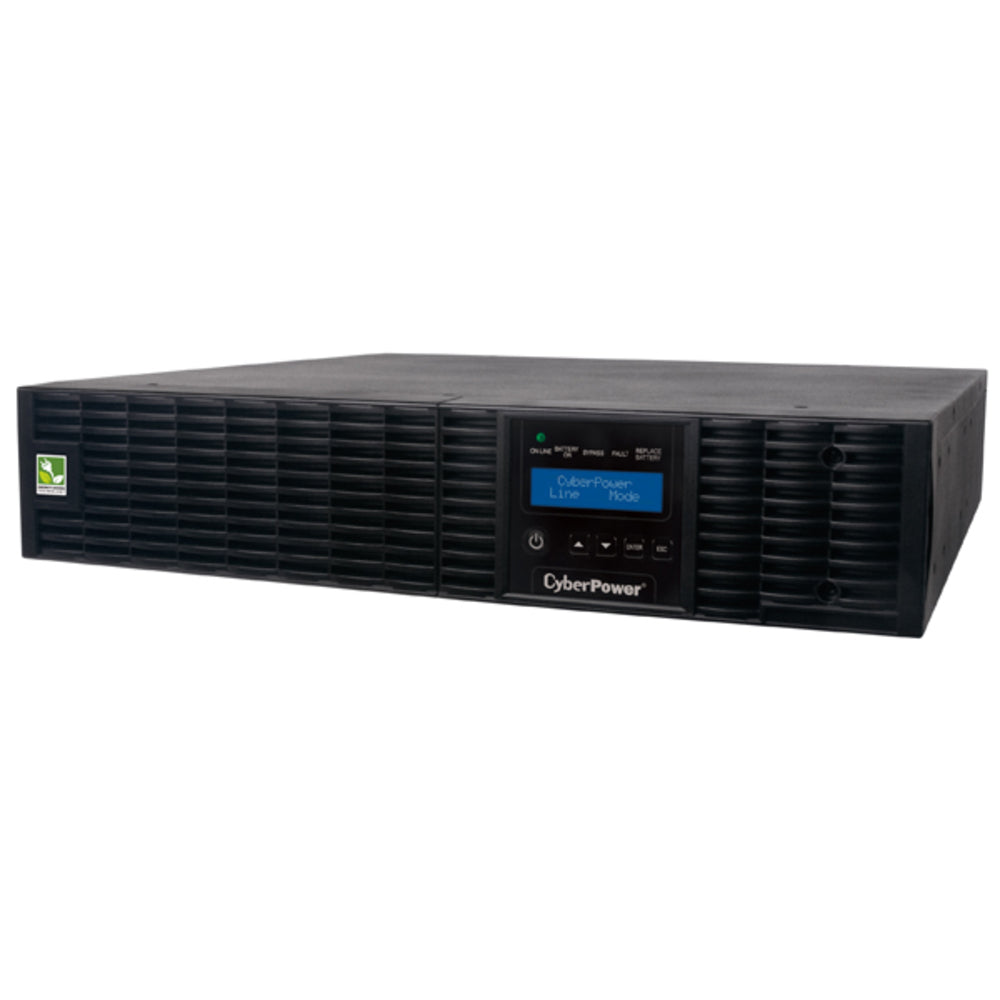

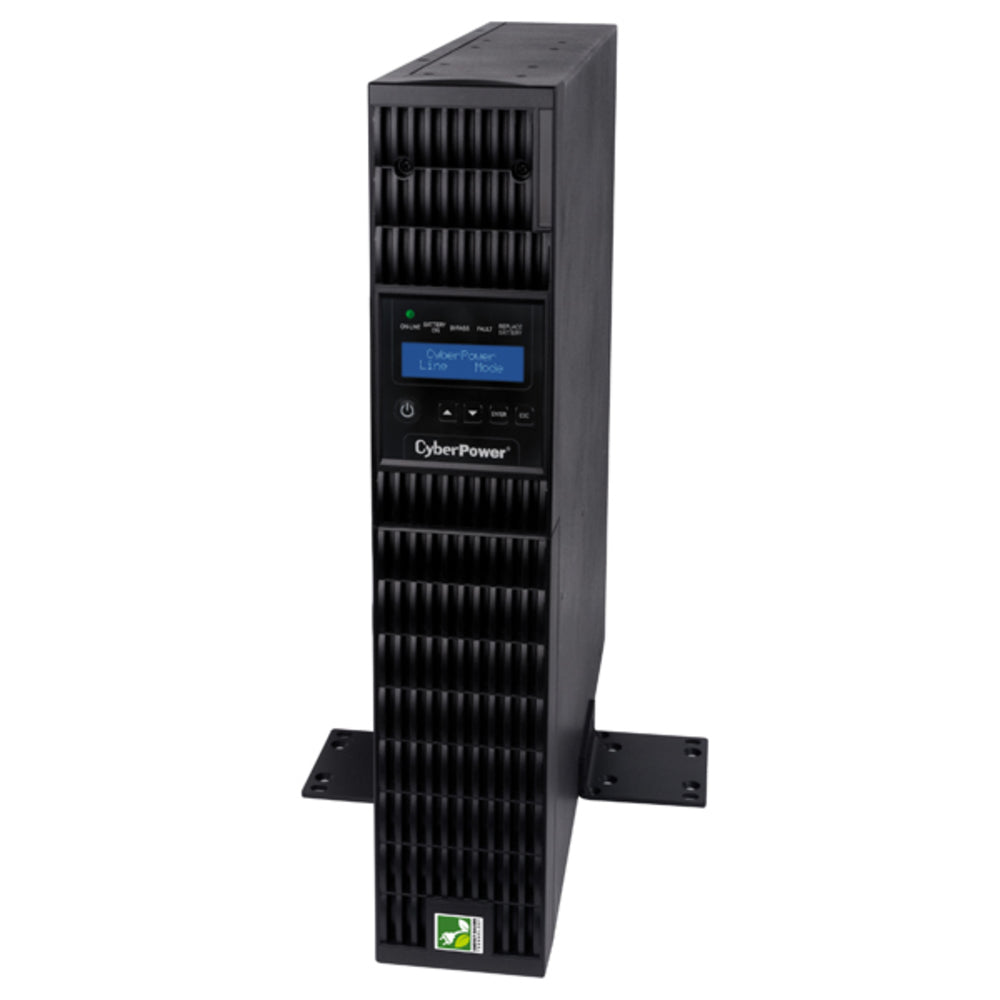

CyberPower OL3000RTXL2U Online UPS 3KVA 2U Pure Sine LCD

The CyberPower OL3000RTXL2U is a Smart App Online uninterruptible power supply (UPS) that provides reliable power protection for mission-critical servers, data centers, telecom equipment, VoIP systems, and internetworking hardware. With its double-conversion (online) topology, this UPS delivers consistent and clean AC power with zero transfer time, ensuring seamless power correction and preventing costly business interruptions.

The OL3000RTXL2U features a pure sine wave output and is generator compatible, making it ideal for applications that require high-quality power. It offers a capacity of 3,000VA / 2,700Watts (0.9 power factor) and can be configured for an output of 100V, 110V, 115V, 120V, and 125V +/- 2%. The UPS includes seven AC outlets, consisting of six NEMA 5-20R and one NEMA L5-30P receptacles.

Designed for easy monitoring and control, the OL3000RTXL2U is equipped with an LCD control panel that provides 43 different settings to check status and customize operating parameters. The control panel can be removed and mounted separately from the UPS, allowing for easy access and viewing regardless of the installation location.

The UPS incorporates microprocessor-based fully digital control and includes PowerPanelr Business Edition software, offering unmatched flexibility and control. For remote management and control, an optional SNMP/HTTP Remote Management adapter (RMCARD302) is available, allowing users to monitor and manage the UPS through a standard web browser.

Key Features:

• Output power capacity: 3000 VA
• Output power: 2700 W
• Input operation voltage (min): 100 V
• Input operation voltage (max): 125 V
• Output operation voltage (min): 100 V
• Output operation voltage (max): 125 V
• Input frequency: 40/70 Hz
• Power factor: 0.99
• Input current THD: 5%
• Crest factor: 3:1
• AC outlets quantity: 7
• AC outlet types: NEMA 5-20R, NEMA L5-30R
• Power plug: NEMA 5-30P
• Cable length: 0.25 m
• Serial ports quantity: 1
• Modem (RJ-11) ports: 1
• Ethernet LAN (RJ-45) ports: 1
• Form factor: Rackmount/Tower
• Rack capacity: 2U
• EMI/RFI noise filtering: Yes
• Surge protection: Yes
• Surge protection features: Network, Telephone
• Power protection features: Overload
• Housing material: Steel
• Battery technology: Sealed Lead Acid (VRLA)
• Battery type: 12V/9AH
• Number of battery cells: 6
• Battery recharge time: 5 hours
• Typical backup time at half load: 9 minutes
• Typical backup time at full load: 3 minutes
• Hot-swap battery: Yes
• Cold start: Yes
• Product color: Black
• Weight: 31 kg
• Width: 433 mm
• Depth: 600 mm
• Height: 88 mm
• Operating temperature (T-T): 0 - 40&degC
• Storage temperature (T-T): -15 - 45&degC
• Operating relative humidity (H-H): 0 - 90%
• Storage relative humidity (H-H): 0 - 95%
• Operating altitude: 0 - 3000 m
• Non-operating altitude: 0 - 15000 m
• RoHS compliance: Yes
• Certification: UL1778, CSA C22.2 NO.107.3-05, FCC DOC A
• LED indicators: Yes
• Audible alarm(s): Yes

Learn More

For more information about CyberPower OL3000RTXL2U, please visit the Wikipedia page on uninterruptible power supplies.

Product: CyberPower OL3000RTXL2U Online UPS 3KVA 2U Pure Sine LCD

Brand: Cyberpower

Model: OL3000RTXL2U

Shipping Weight: 86.90 lb

Shipping Height: 8.00 in

Shipping Width: 23.75 in

Shipping Length: 35.00 in
