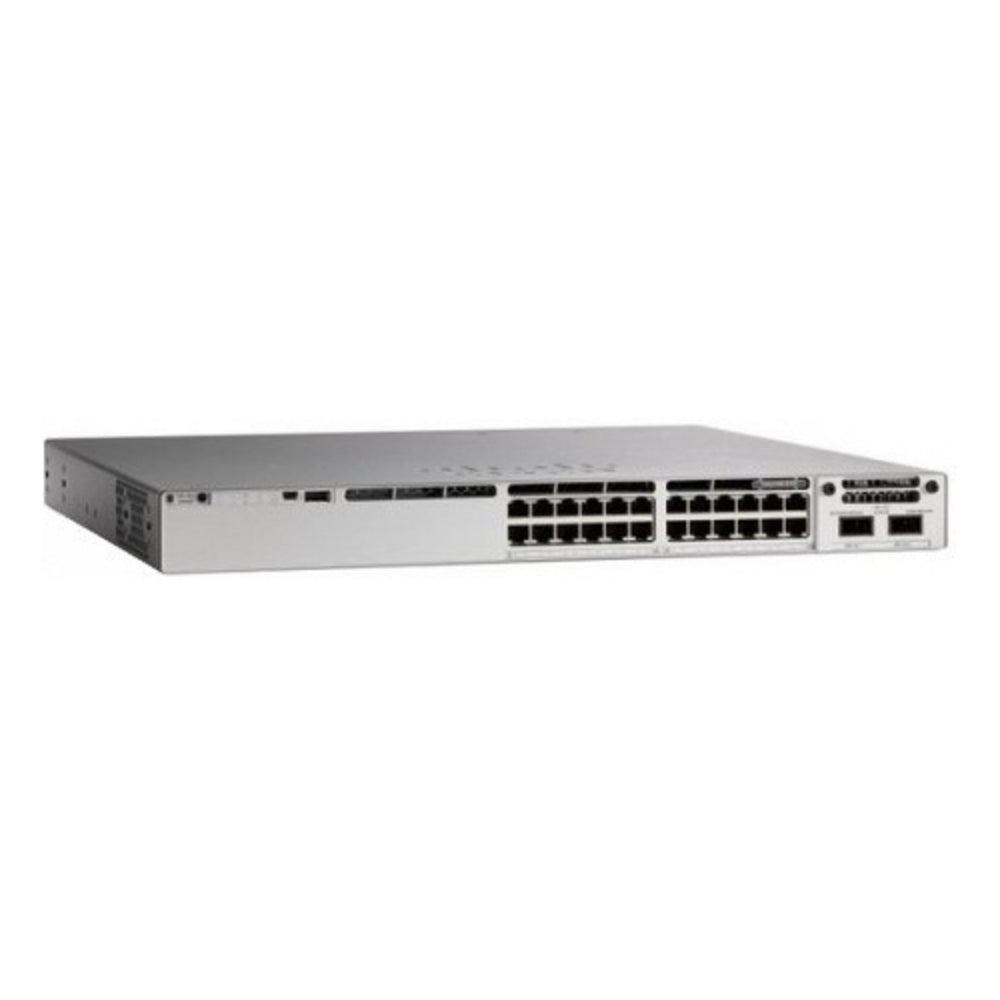

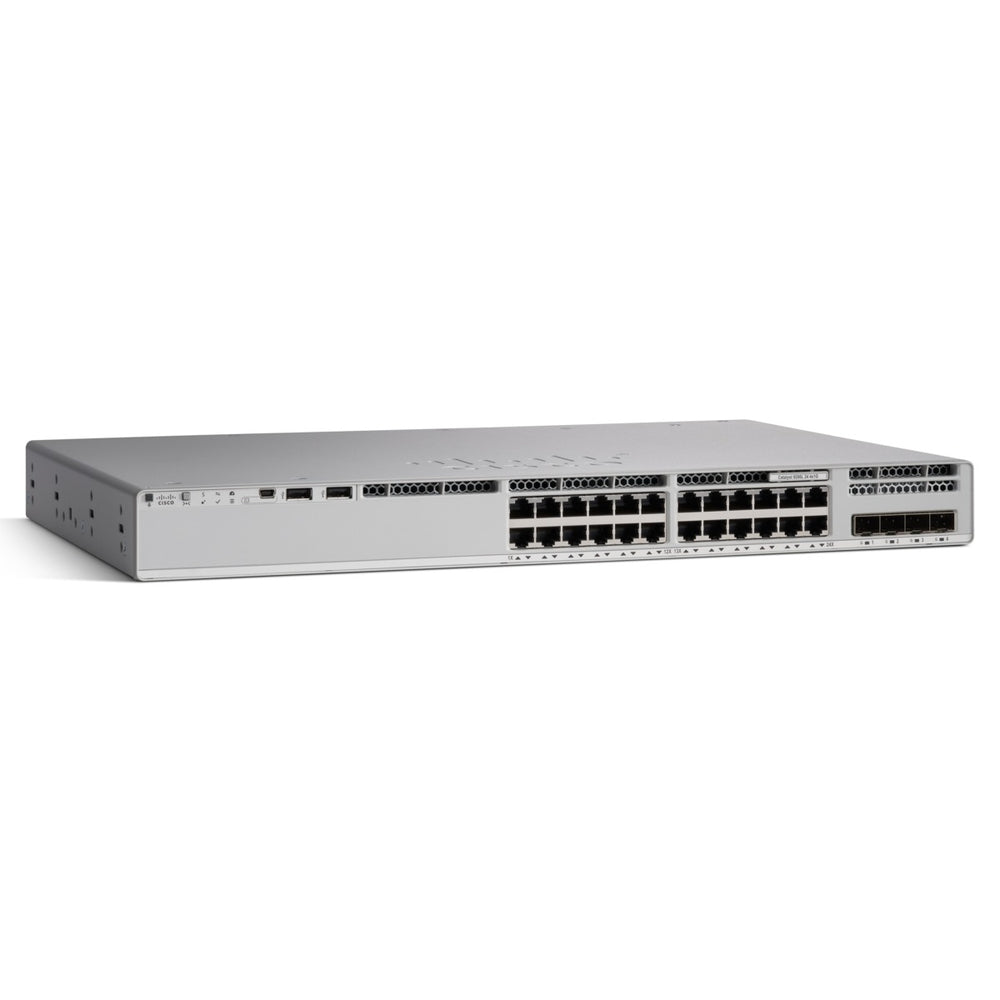

Cisco Systems C9200L-24T-4G-E CATALYST 9200L 24-PORT DATA 4 X 1G NETWORK

Cisco Catalyst 9200L Unmanaged L3 Gigabit Ethernet (10/100/1000) Grey

Extend Intent-Based Networking Everywhere

Ciscor Catalystr 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise - it is secure, always on, and IT simplified.

As foundational building blocks for the Cisco Digital Network Architecture, Catalyst 9200 Series switches help customers simplify complexity, optimize IT, and reduce operational costs by leveraging intelligence, automation and human expertise that no other vendor can deliver regardless of where you are in the intent-based networking journey.

Catalyst 9200 Series switches provide security features that protect the integrity of the hardware as well as the software and all data that flows through the switch. It provides resiliency that keeps your business up and running seamlessly. Combine that with open APIs of Cisco IOS XE and programmability of the UADP ASIC technology, Catalyst 9200 Series switches give you what you need now with investment protection on future innovations.

With full PoE+ capability, power and fan redundancy, stacking bandwidth up to 160 Gbps, modular uplinks, Layer 3 feature support, and cold patching, Catalyst 9200 Series switches are the industry's unparalleled solution with differentiated resiliency and progressive architecture for cost-effective branch-office access.

Catalyst 9200L 24-port Data 4x1G uplink Switch, Network Essentials

Features:

• Switch type: Unmanaged
• Switch layer: L3
• Quality of Service (QoS) support: Y
• Traffic classification: Y
• ARP inspection: Y
• Configuring Location Settings (CLI): Y
• MIB support: BRIDGE-MIB, CISCO-BRIDGE-EXT-MIB, CISCO-BULK-FILE-MIB, CISCO-CABLE-DIAG-MIB, CISCO-CALLHOME-MIB, CISCO-CEF-MIB, CISCO-CIRCUIT-INTERFACE-MIB, CISCO-CONFIG-COPY-MIB, CISCO-CONFIG-MAN-MIB, CISCO-DEVICE-LOCATION-MIB, CISCO-DHCP-SNOOPING-MIB, CISCO-EIGRP-MIB
• Web-based management: Y
• Basic switching RJ-45 Ethernet ports quantity: 24
• Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
• Gigabit Ethernet (copper) ports quantity: 4
• Fast Ethernet (copper) ports quantity: 20
• Flash memory: 4000
• Memory type: DRAM
• Internal memory: 2000
• Jumbo frames support: Y
• Jumbo frames: 9198
• Packet forwarding rate (1 Gbps): 41.66
• Power connector: AC-in jack
• Networking standards: IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3bz,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
• 10G support: Y
• Copper ethernet cabling technology: 10BASE-T,10GBASE-T,100BASE-TX,1000BASE-T
• IP routing: Y
• Full duplex: Y
• Routing entries: 3000
• Flow control support: Y
• Spanning tree protocol: Y
• VLAN support: Y
• Number of VLANs: 1024
• Packet buffer memory: 6
• MAC address table: 16000
• Switching capacity: 56
• Forwarding rate: 41.66
• Access Control List (ACL): Y
• Security algorithms: 128-bit AES
• Multicast support: Y
• Multicast MAC address table: 1000
• IPv4 multicast entries: 3000
• IPv6 multicast entries: 1500
• Management protocols: SNMPv1/v2c/v3
• Routing protocols: CDP,EIGRP,OSPF,RIP,VRRP
• Product color: Grey
• Electromagnetic compatibility: 47 CFR Part 15, CISPR 22 Class A, CISPR 32 Class A, CNS 13438, EN 300 386, EN 55022 Class A, EN 55032 Class A, EN61000-3-2, EN61000-3-3, ICES-003 Class A, KN 32, TCVN 7189 Class A, V-3 Class A, CISPR 24, EN 300 386, EN 55024, KN 35, TCVN 7317
• Certification: RoHS, IEC 60950-1, UL 60950-1, CAN/CSA C22.2 No. 60950-1, EN 60950-1, AS/NZS 60950.1, Class I Equipment
• Power supply included: Y
• Redundant power supply (RPS) support: Y
• AC input voltage: 100 - 240
• AC input frequency: 50 - 60
• Power consumption (typical): 125
• Input current: 12 - 6
• Power over Ethernet (PoE): N
• Operating temperature (T-T): -5 - 45
• Storage temperature (T-T): -40 - 70
• Operating relative humidity (H-H): 5 - 90
• Operating altitude: 0 - 3000
• Width: 445
• Depth: 288
• Height: 44
• Package type: Box
• Weight: 4350

Learn More

• Cisco Systems
• Cisco Catalyst 9000 Series Switches

Product: Cisco Systems C9200L-24T-4G-E CATALYST 9200L 24-PORT DATA 4 X 1G NETWORK

Brand: Cisco Systems

Model: C9200L-24T-4G-E

Shipping Weight:

Shipping Height:

Shipping Width:

Shipping Length:
