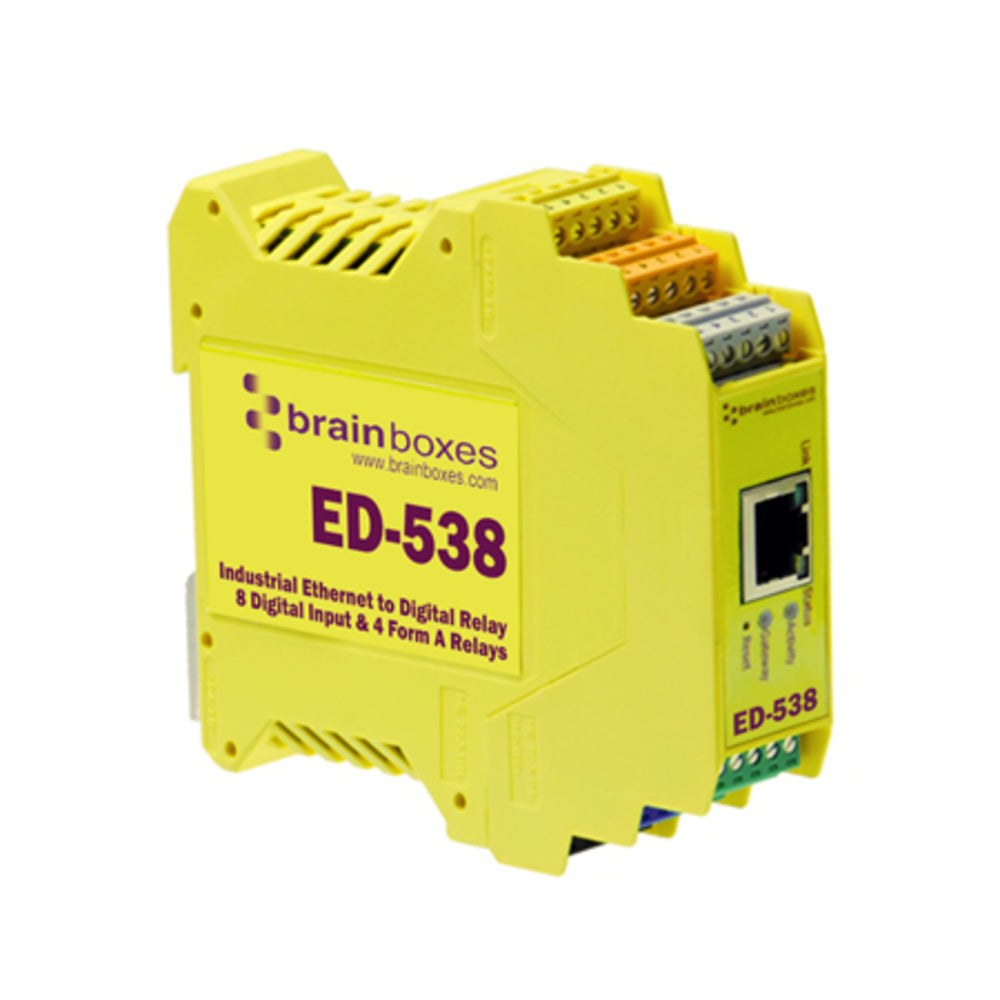

Brainboxes Ethernet IO Relay - 8 Inputs, 4 Relays (Ed-538)

The Brainboxes Ethernet IO Relay - 8 Inputs, 4 Relays (Ed-538) is a powerful and robust device designed for industrial environments. It provides a seamless interface between systems on the 24V factory floor environment, also known as the "process side". This device offers 8 non-isolated digital input channels and 4 digital Type A Relay Outputs, making it suitable for a wide range of applications.

The Brainboxes Ed-538 is equipped with a high-performance ARM 80 MHz, 32 Bit CPU, ensuring efficient and reliable operation. It can be easily installed as a COM Port on a Windows PC, ensuring complete backwards compatibility with legacy applications. For other platforms and operating systems, the device can be controlled over TCP/IP. Brainboxes also provides a comprehensive suite of APIs and sample code for easy communication with the Ed-538 using popular programming languages such as Microsoft .NET framework, C++, Java, Javascript, PHP, and more. The device can be configured and secured conveniently through a web browser.

The Ed product range is specifically designed for harsh environments. The digital output ports are implemented with protected output circuits, offering various protections including current overload and short circuit protection, voltage surge protection, overload and open circuit protection, and over-temperature protection. This ensures the widest possible usage and compatibility with a range of devices.

The Brainboxes Ethernet IO Relay - 8 Inputs, 4 Relays (Ed-538) is highly versatile and capable of driving hot and cold resistive loads, capacitive loads, and inductive loads. It is particularly suited for loads with high inrush currents, such as cold bulbs/lamps and motors. Typical applications include control and switching of AC and DC motors, fans, relay drivers, pumps, voltage regulators and battery chargers, LEDs and bulbs, air conditioning systems, heaters, and solenoids.

Product Features:

• 8 non-isolated digital input channels
• 4 digital Type A Relay Outputs
• Powerful ARM 80 MHz, 32 Bit CPU
• Backwards compatibility with legacy applications (COM Port installation on Windows PC)
• TCP/IP control from other platforms and operating systems
• Supports various programming languages with provided APIs and sample code
• Web browser configuration and security
• Protected output circuits with multiple protections
• Compatible with hot and cold resistive loads, capacitive loads, and inductive loads
• Suitable for devices with high inrush currents

Specifications:

• Dimensions (WxDxH): 130 x 100 x 20
• Weight: 250
• AC input voltage: 24
• Current: 5
• Product color: Yellow

Learn More:

For more information about Ethernet IO Relays, please visit the Ethernet IO Relay Wikipedia page.

For more information about Brainboxes, please visit the Brainboxes Wikipedia page.

Product: Brainboxes Ed-538 Ethernet To Digital Io Relay 8 Input And 4 Form A Relays

Brand: Brainboxes

Model: ED-538

Shipping Weight: 0.60 lb

Shipping Height: 1.90 in

Shipping Width: 5.40 in

Shipping Length: 6.20 in
