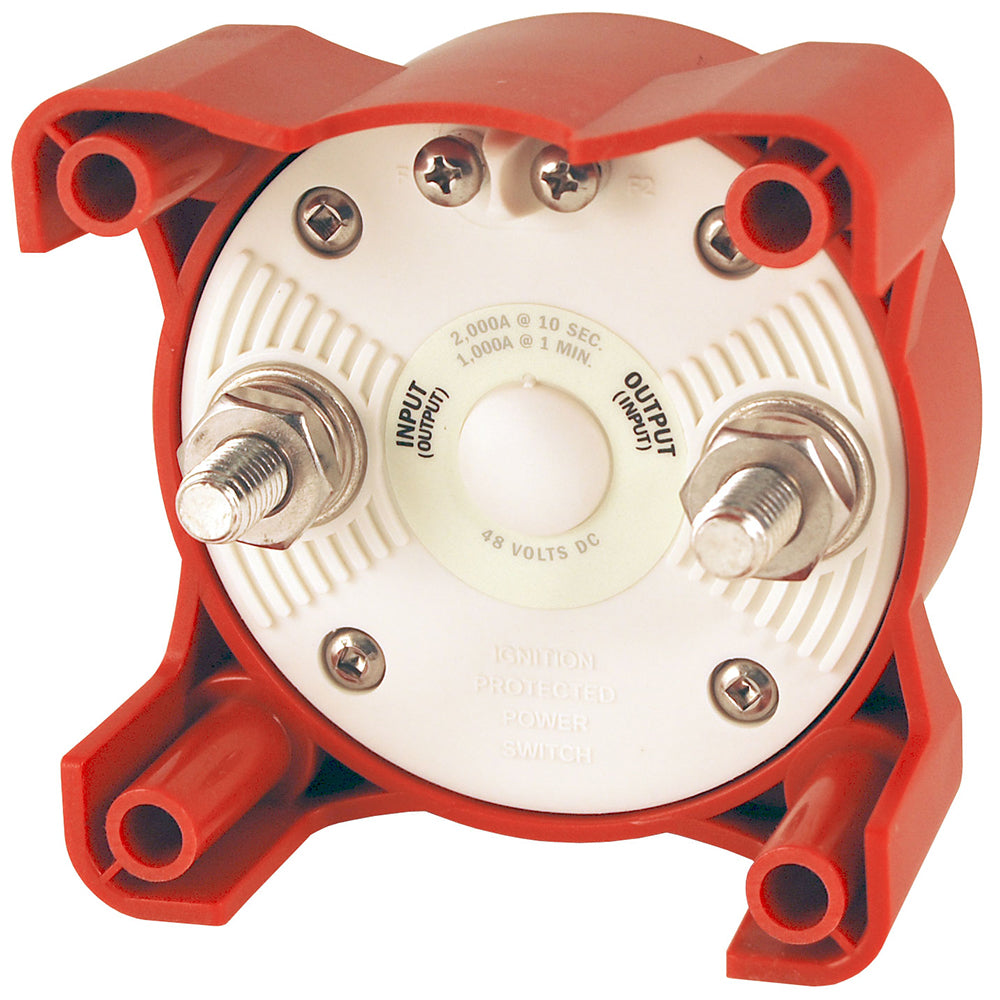

Blue Sea 9004E E-Series Single Circuit On/Off Battery Switch & Alternator

The Blue Sea 9004E E-Series Single Circuit On/Off Battery Switch & Alternator is the perfect solution for inboard gasoline or diesel engines. With a continuous rating of 350 Amps, this battery switch is designed to handle heavy loads with ease.

The tin-plated copper studs ensure maximum conductivity and corrosion resistance, while the one-piece terminal stud design never loosens over time. This battery switch also accepts up to 4/0 AWG battery cables and studs that accept 3/8" (M10) ring terminals. The 7/8" (22mm) stud length accepts multiple cable terminals, making it easy to connect your battery cables.

The Blue Sea 9004E E-Series Single Circuit On/Off Battery Switch & Alternator fits most Perko and Guest low amperage battery switch hole patterns, and the case design allows for surface or rear panel mounting. The tactile indicator conveys knob position by feel, while the switch is waterproof and rated IP66 from water projected in powerful jets. It is also ignition protected, making it safe for installation aboard gasoline-powered boats.

This battery switch includes an AFD (Alternator Field Disconnect) and switches a single battery to a single load group.

Features:

• 350 Amps continuous rating for inboard gasoline or diesel engines.
• Tin-plated copper studs for maximum conductivity and corrosion resistance
• Accepts up to 4/0 AWG battery cables
• Studs accepts 3/8" (M10) ring terminals
• 7/8" (22mm) stud length accepts multiple cable terminals
• Blue Sea Systems one-piece terminal stud design never loosens over time
• Fits most Perko and Guest low amperage battery switch hole patterns
• Case design allows surface or rear panel mounting
• Tactile indicator conveys knob position by feel
• Waterproof — rated IP66 from water projected in powerful jets
• Ignition protected—safe for installation aboard gasoline powered boats
• Includes AFD (Alternator Field Disconnect)

Specifications:

• Switch Type: Single Circuit ON-OFF
• Color: Red
• Switch Positions: 2
• Battery Combine: No
• Alternator Field Disconnect: Yes
• Maximum Voltage: 48V DC
• Terminal Stud Torque: 140 in-lb (15.82 Nm)
• Continuous Rating: 350A
• Intermittent Rating: 600A (5 min)
• Cranking Rating 30 sec: 1200A per circuit
• Battery Inputs: 1
• Cable Clearance For 4/0 AWG Cables: 1.10in (27.94 mm)
• Cable Size to Meet Ratings: 4/0 AWG (120mm )
• Mounting Holes: Accept 1/4" (M6) Screw
• Stud Material: Tinned Copper
• Terminal Stud Size: 3/8" - 16 (M10)

Learn More:

• Battery Switch
• Alternator
• Copper

Product: Blue Sea Systems 9004E E-Series Battery Switch Single Circuit On/Off Alternator

Brand: Blue Sea Systems

Model: 9004E

Shipping Weight: 0.92 lb

Shipping Height: 5.00 in

Shipping Width: 7.00 in

Shipping Length: 10.00 in
