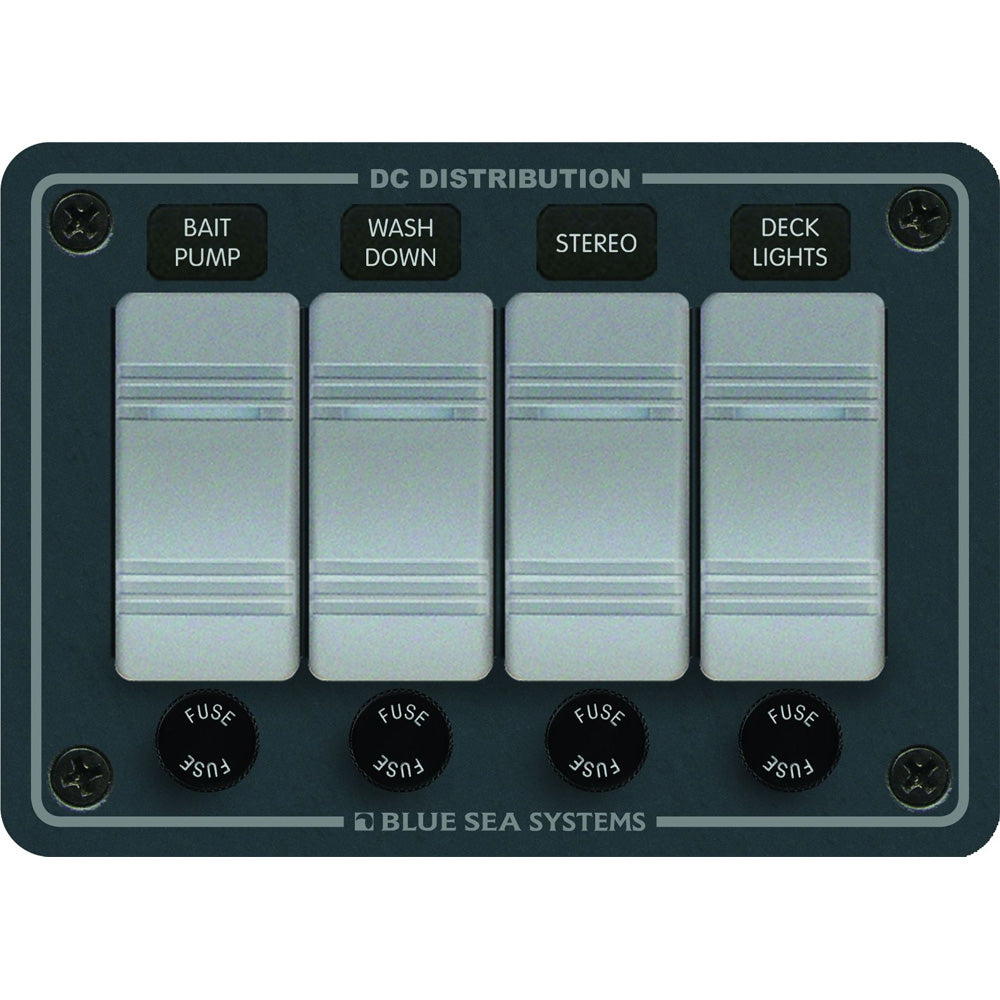

Blue Sea Systems 8262 Waterproof 4-Position Panel - Slate Grey

The Blue Sea Systems 8262 Waterproof 4-Position Panel in Slate Grey is a reliable and durable electrical panel designed for above deck applications. With its waterproof features and robust construction, this panel can withstand salt spray, rain, hose washdowns, and momentary immersions, making it ideal for flybridge and open cockpit installations.

Features:

• Will withstand the water exposures normally encountered in above deck applications: salt spray, rain, hose washdowns, momentary immersions
• Designed for flybridge and open cockpit applications
• ON-OFF Contura Switches
• ON indicating LEDs embedded in switches
• Watertight mounting gasket included
• Countersunk mounting holes throughout
• Two-part polyurethane slate gray finish
• Industry standard height and width
• Mil-Spec chemical treatment via immersion to protect every surface detail from corrosion
• Completely wired and ready to install

Specifications:

• Weatherproof: Water Resistant
• Positions: 4
• Nominal Voltage: 12v / 24v
• Panel Cumulative Rating: 45A
• Switch Rating: 20A at 12v DC / 15A at 24v DC
• Height: 3.75"
• Width: 5.25"
• Depth: 3"

Included:

• (4) 5021 Panel Mount AGC/MDL Fuse Holder
• (1) 8214 Black 60 Label Set
• (4) 8230 Contura Switch SPST Gray - Off-On

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to .

Learn More

• Electrical Panel - Wikipedia
• Waterproofing - Wikipedia

Product: Blue Sea Systems 8262 Waterproof 4-Position Panel - Slate Grey

Brand: Blue Sea Systems

Model: 8262

Shipping Weight: 1.36 lb

Shipping Height: 4.29 in

Shipping Width: 6.25 in

Shipping Length: 8.42 in
