Blue Sea Systems 8017 DC Analog Ammeter - 0-100A, 2.75" Face

The Blue Sea Systems 8017 DC Analog Ammeter is a high-quality meter designed for measuring direct current (DC) in the range of 0-100A. With a 2.75" face, this ammeter provides easy and accurate readings for various applications. It features backlighting for low light conditions, making it suitable for use in dimly lit environments. The meter can be conveniently mounted either on the surface or panel, depending on your preference.

The ammeter includes an internal or external shunt, depending on the model, which ensures accurate current measurements. When required, it comes with the appropriate external DC shunt, simplifying the installation process. With a simple 4-wire connection, setting up the ammeter is quick and hassle-free.

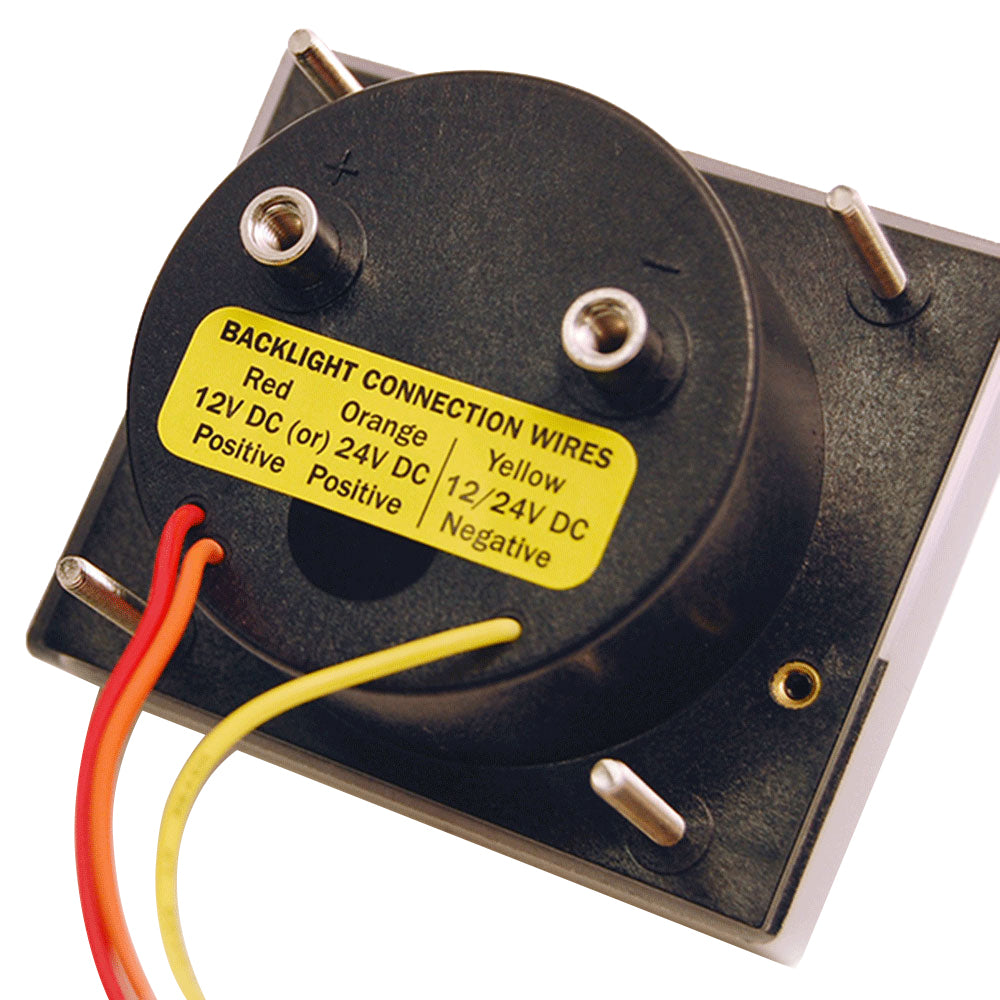

One of the standout features of this ammeter is its backlit meter face. It provides clear visibility of the readings even in low light situations. Please note that separate 12V or 24V connections are required for the backlighting function.

The face of the ammeter measures 2-3/4", ensuring that the readings are easily visible. Additionally, DIN Meters include a terminal cover to prevent accidental short circuits, providing an added level of safety. These DIN Meters follow the standard European 72mm design and have a white matte face with a black printed scale and knife-edge pointer.

Product Features:

• High-quality DC analog ammeter
• Measures current in the range of 0-100A
• 2.75" face for easy reading
• Backlighting for low light conditions
• Can be surface or panel mounted
• Includes internal or external shunt
• Simple 4 wire connection
• Separate 12V or 24V connection required for backlighting
• DIN Meters include terminal cover for safety
• Standard European 72mm design for DIN Meters
• White matte face with black printed scale and knife-edge pointer for DIN Meters

Specifications:

• Product: Blue Sea Systems 8017 DC Analog Ammeter
• Measurement Range: 0-100A
• Face Size: 2-3/4"
• Connection Type: 4-wire
• Backlighting: Yes (12V or 24V DC connections required)
• Shunt: Internal or External (appropriate external shunt included when required)

Learn More

• Direct Current on Wikipedia
• Ammeter on Wikipedia

Product: Blue Sea Systems 8017 Dc Analog Ammeter 2-3/4" Face 0-100 Amperes

Brand: Blue Sea Systems

Model: 8017

Shipping Weight: 0.60 lb

Shipping Height: 4.00 in

Shipping Width: 7.00 in

Shipping Length: 9.00 in
