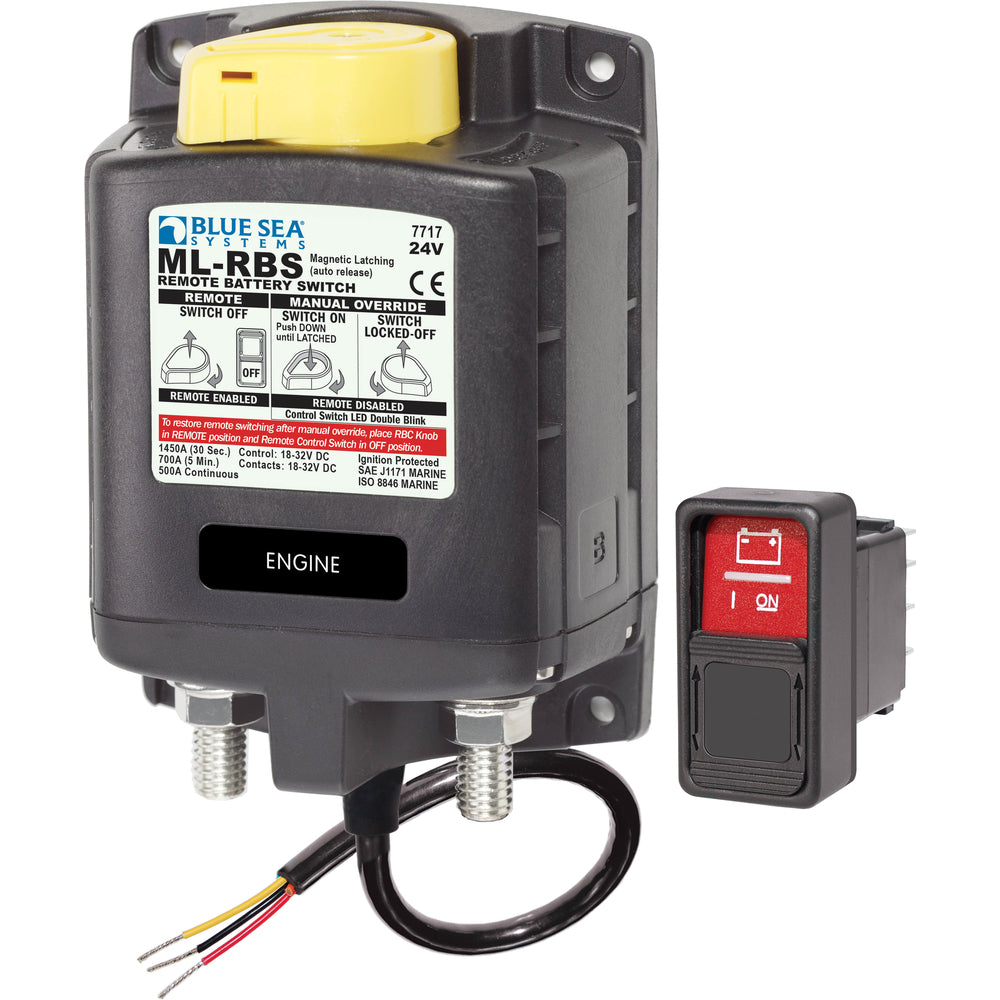

Blue Sea 7717 ML-RBS Remote Battery Switch - Manual Control & Auto-Release

The Blue Sea 7717 ML-RBS Remote Battery Switch with Manual Control Auto-Release - 24V is a reliable and high-performance battery switch suitable for various applications. It features a 500 Amp magnetic latching switch that provides high amperage switching under load, manually or from remote locations. The switch also comes with an auto-releasing ML-Series Remote Battery Switch with SPST Switching that provides 500A switching and features of current ML Remote Battery Switches, but can be controlled with SPST or SPDT switch for applications where a normally open relay is desired.

Product Features:

• Manual override knob provides an added level of safety allowing control with or without power and offering LOCKED OFF capability for servicing
• LED output to remotely indicate switch state - requires optional LED
• 3? 8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance
• 7? 8" (22 mm) stud length accepts multiple cable terminals
• Label recesses for circuit identification
• Silver alloy contacts provide high reliability for switching live loads

Specifications:

• Control Circuit Voltage: 20.2 to 32.9V DC
• Control Circuit Connection: Tinned Wire
• Nominal Voltage: 24V DC
• Mounting: #10
• Coil Function: Auto-Releasing
• Amperage Operating Current: 8mA when OFF, 13mA when ON
• Amperage Operating Current when changing state: <4A (40 ms)
• Continuous Rating: 500A
• Intermittent Rating: 700A - 5 minutes
• Cranking Rating 30 sec: 1450A DC
• Minimum Operating Temperature: -10° C
• Maximum Operating Temperature: 60° C
• Cable Size to Meet Ratings: 2x (4/0)
• Live Current Switching: 300A at 12V DC, 150A at 24V DC
• Master Control Switch Capability: Yes
• Mechanical Endurance: 100,000 Cycles
• Terminal Ring Diameter Clearance: 1.18in (29.97 mm)
• Terminal Stud Length: 0.875in (22.23 mm)
• Terminal Stud Size: 3/8" - 16 (M10)
• Weight: 2.05lb (0.93 kg)

Product: Blue Sea Systems 7717 Ml-Rbs Remote Battery Switch Manual Control Auto-Release

Brand: Blue Sea Systems

Model: 7717

Shipping Weight: lb

Shipping Height: in

Shipping Width: in

Shipping Length: in
