Blue Sea Systems 7700100/7700200 ML Solenoid 12V 500A with Manual Control

The Blue Sea Systems 7700100/7700200 ML Solenoid 12V 500A with Manual Control is a high amperage switching solenoid that can be operated manually or remotely. The solenoid features a manual override knob for added safety and a LOCKED OFF capability for servicing. The LED output allows for remote indication of the switch state (LED sold separately).

Features:

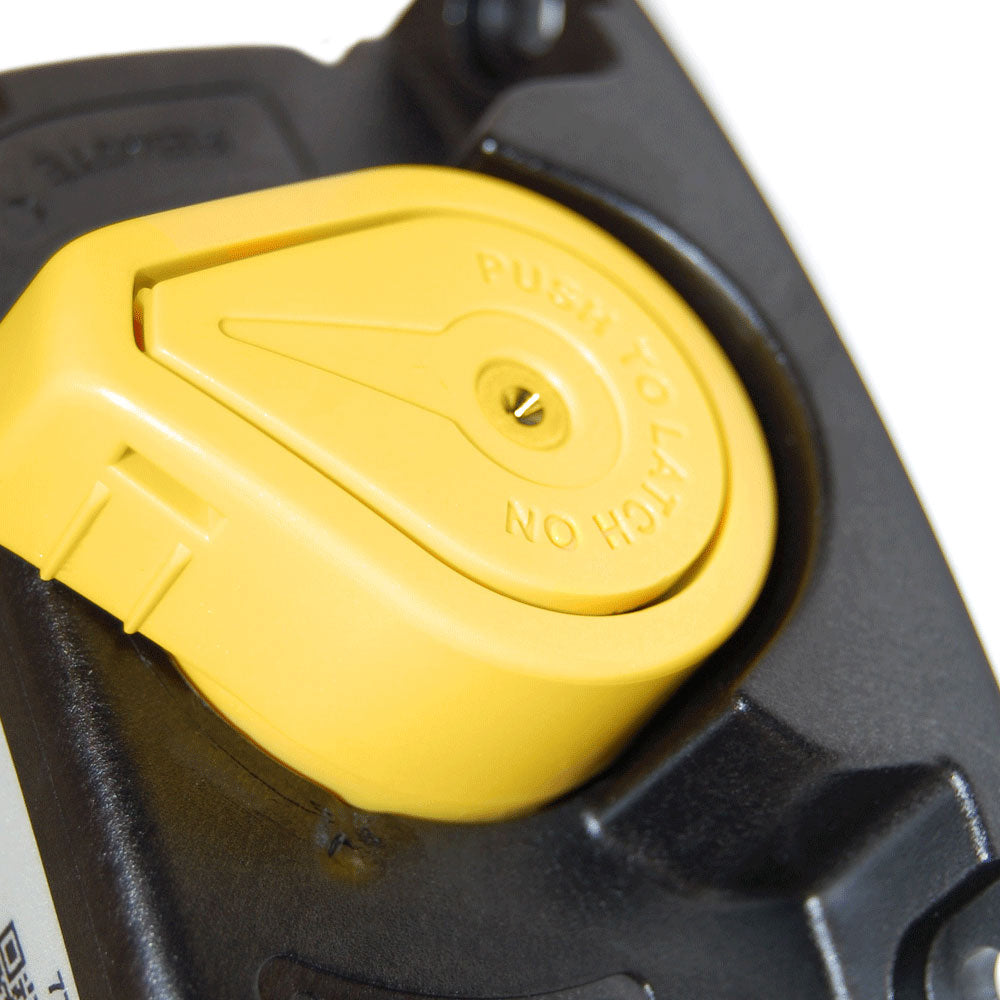

• Manual override knob provides an added level of safety allowing control with or without power and offering LOCKED OFF capability for servicing
• LED output to remotely indicate switch state - requires optional LED
• 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance
• 7/8" (22 mm) stud length accepts multiple cable terminals
• Label recesses for circuit identification
• Silver alloy contacts provide high reliability for switching live loads

Specifications:

• Control Circuit Connection: Deutsch DTM
• Nominal Voltage: 12VDC
• Coil Function: Bi-Stable
• Mounting: #10
• Amperage Operating Current Continous: 0mA
• Terminal Stud Torque: 140 in-lb (15.82 Nm)
• Continuous Rating: 500A
• Intermittent Rating: 700A (5 min)
• Cranking Rating 30 Seconds: 1450A DC
• Cable Size to Meet Ratings: 2x (4/0)
• Live Current Switching: 300A at 12VDC
• Master Control Switch Capability: No
• Mechanical Endurance: 100,000 Cycles
• Terminal Ring Diameter Clearance: 1.18" (29.97 mm)
• Terminal Stud Length: 0.875" (22.23 mm)
• Terminal Stud Size: 3/8" - 16 (M10)
• Weight: 1.75lb (0.79 kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to .

Learn More

• Solenoid Valve
• Electromagnetic Lock

Product: Blue Sea Systems 7700100/7700200 ML Solenoid 12V 500A with Manual Control

Brand: Blue Sea Systems

Model: 7700100

Shipping Weight: 2.55 lb

Shipping Height: 4.00 in

Shipping Width: 10.00 in

Shipping Length: 12.00 in
