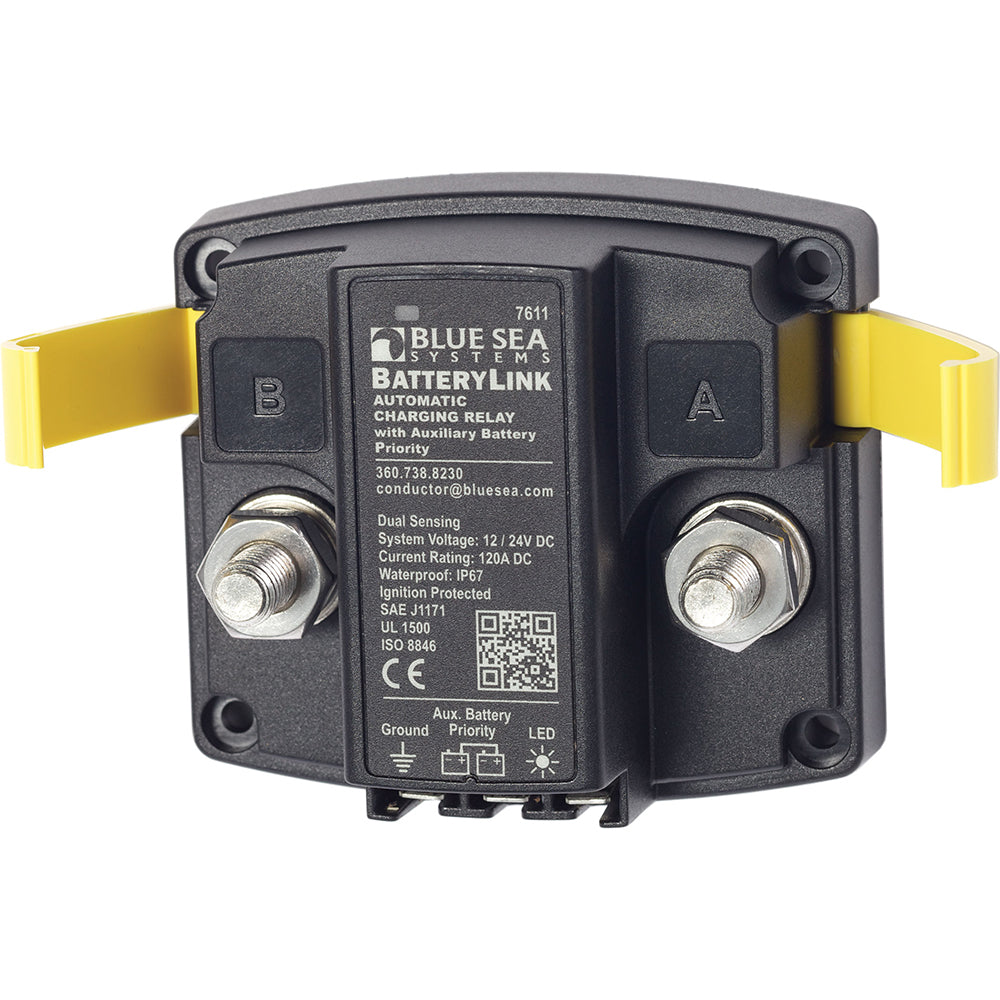

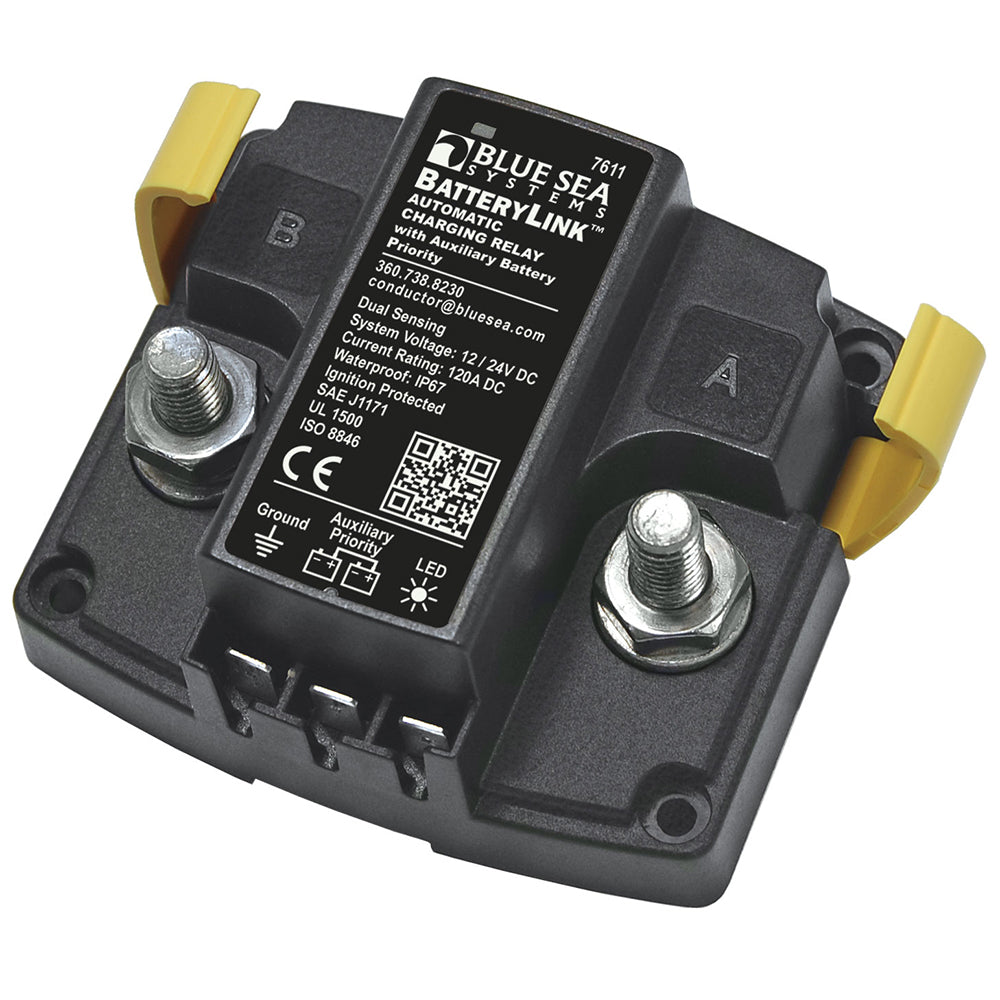

Blue Sea Systems BatteryLink™ Automatic Charging Relay - 12V/24V DC 120A

The Blue Sea Systems 7611-BSS BatteryLink Auto Charging Relay is a powerful and reliable device that automatically shares a single source of charge with an auxiliary battery. It has a 120 Amp continuous rating and can sense charging on two battery banks. The device comes with side and bottom knockouts for cable connections and a clip-on cover that insulates terminal connections. The integrated LED indicates ACR status, and the largest battery bank cannot exceed Group 27.

Product Features

• 120 Amp continuous rating
• 12/24V DC auto ranging voltage input
• Senses charging on two battery banks
• Side and bottom knockouts for cable connections
• Clip-on cover insulates terminal connections
• 7?8" (22 mm) stud length to accept multiple cable terminals
• Integrated LED indicates ACR status
• 1?4" .032" male quick connect terminals for ground and optional features
• Largest battery bank cannot exceed Group 27

Specifications

• Nominal Voltage: 12V DC, 24V DC
• Auxiliary Battery Priority: Yes
• Amperage Operating Current: 175mA at 12V (Combine), 115mA at 24V (Combine), 15mA (Open)
• Continuous Rating: 120A
• Intermittent Rating: 210A (5 min)
• Maximum Cable Size: 1/0 AWG
• Maximum Torque: 140 in-lb (15.82 Nm)
• Stud Material: Tinned Copper
• Terminal Stud Size: 3/8" - 16 (M10)

Learn More

• Relay
• Electrical Relay
• Voltage

Product: Blue Sea Systems 7611-Bss Batterylink Automatic Charging Relay 12/24Vdc 120A

Brand: Blue Sea Systems

Model: 7611

Shipping Weight: 1.25 lb

Shipping Height: 4.00 in

Shipping Width: 7.00 in

Shipping Length: 9.00 in
