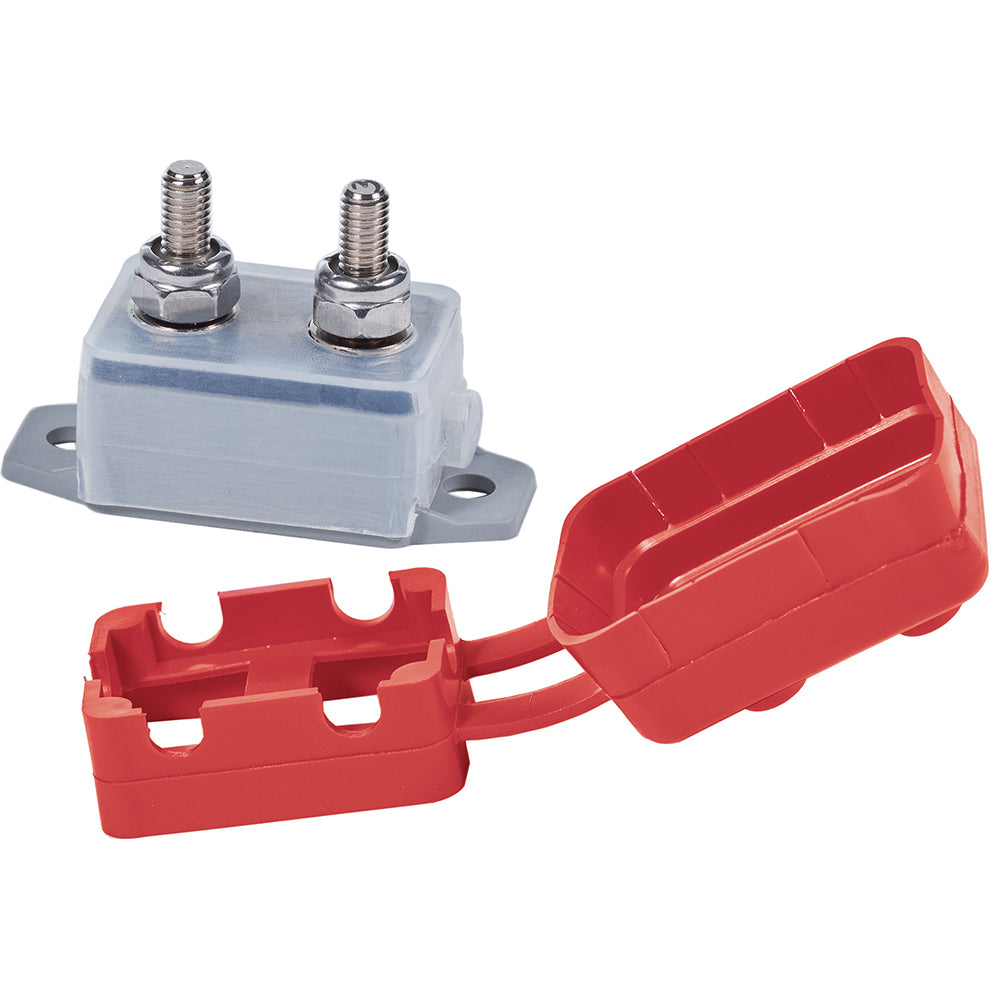

Blue Sea 7155-BSS 30A Marine Grade Short Stop Circuit Breaker

The Blue Sea 7155-BSS 30A Marine Grade Short Stop Circuit Breaker is designed to protect your electrical system from overloads and short circuits. This circuit breaker is made with corrosion-resistant materials that can withstand harsh marine environments. The IP64 water-resistant boot protects against dust and splashing water, ensuring the circuit breaker operates smoothly.

The circuit breaker features push-to-reset operation, which only disconnects when tripped. This means that if there is a fault in the system, the circuit breaker will automatically trip and disconnect the electrical flow, preventing damage to your equipment. The stainless steel lock nuts provide secure connections, ensuring the circuit breaker stays in place.

The Blue Sea 7155-BSS 30A Marine Grade Short Stop Circuit Breaker has an interrupt capacity of 2500A at 28V DC, providing reliable protection for your electrical system. The circuit breaker is a thermal trip, manual reset type and has a terminal stud of #10-32. The terminal stud torque is 20 in-lb (2.26 Nm). The circuit breaker has a minimum operating temperature of -10° C and a maximum operating temperature of 60° C.

Features:

• Corrosion-resistant materials
• IP64 water-resistant boot
• Push-to-reset operation
• Stainless steel lock nuts
• Interrupt capacity of 2500A at 28V DC

Specifications:

• Amperage: 30A DC
• Maximum Voltage: 28vDC
• Circuit Breaker Type: Thermal trip, manual reset
• Terminal Stud: #10-32
• Terminal Stud Torque: 20 in-lb (2.26 Nm)
• Interrupt Capacity: 2500A at 28V DC
• Minimum Operating Temperature: -10° C
• Maximum Operating Temperature: 60° C

What's in the Box:

• 30A Short Stop Circuit Breaker
• Short Stop Circuit Breaker Boot

Learn More:

• Circuit Breaker on Wikipedia
• Marine Electronics on Wikipedia

Product: Blue Sea Systems 7155-Bss Short Stop 30 Amp Circuit Breaker Marine Grade

Brand: Blue Sea Systems

Model: 7155
