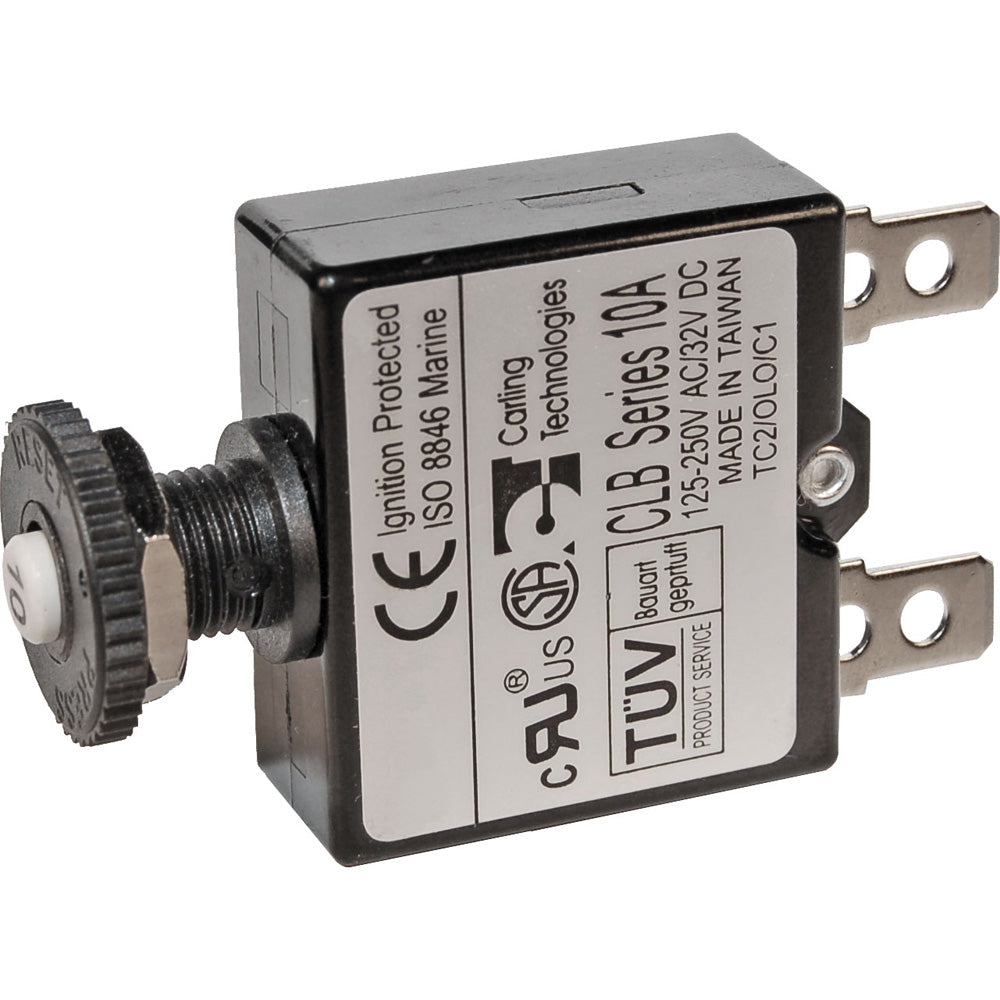

Blue Sea Systems 7054 Push Button Reset Only Circuit Breaker with Quick Connect

The Blue Sea Systems 7054 Push Button Reset Only Circuit Breaker with Quick Connect is a high-quality circuit breaker designed for branch circuit protection and 24-hour circuit protection. It features a compact design that allows for high density circuit protection configurations. With its quick connect terminal style, this circuit breaker is seamlessly integrated into various Blue Sea Systems panels, including WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels.

The push-to-reset operation of this circuit breaker ensures convenient and easy functionality. Its "Trip Free" design guarantees that it cannot be held "ON" during a fault current condition, providing added safety. The Blue Sea Systems 7054 Circuit Breaker is also ignition protected, making it suitable for installation aboard gasoline-powered boats. For wet environments, an optional Push Button Waterproof Boot is available, which protects the circuit breaker, replaces dress nut mounting, and resists discoloration and cracking.

Product Features:

• Branch circuit breakers (can also be used for 24-hour circuit protection)
• Quick connect terminal style circuit breakers are incorporated into Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels
• Compact design enables high density circuit protection configurations
• Push-to-reset operation
• "Trip Free" design cannot be held "ON" during fault current condition
• Ignition protected - Safe for installation aboard gasoline-powered boats
• Optional Push Button Waterproof Boot protects circuit breaker in wet environments, replaces dress nut mounting on circuit breakers and resists discoloration and cracking

Specifications:

• Amperage: 10A
• Maximum Voltage: 32vDC
• Mounting: Panel Mount 3/8-27 UNS
• Circuit Breaker Type: Thermal trip, manual push-button reset only
• Terminal Type: 1/4 Male Quick Connect
• Interrupt Capacity: 3000A at 14.7V, 2500A at 28V
• Minimum Operating Temperature: -10&degC
• Maximum Operating Temperature: 60&degC

Learn More:

• Circuit Breaker on Wikipedia

Product: BLUE SEA SYSTEMS 7054 Push Button Reset Only Quick Connect Circuit Breaker

Brand: Blue Sea Systems

Model: 7054

Shipping Weight:

Shipping Height:

Shipping Width:

Shipping Length:
