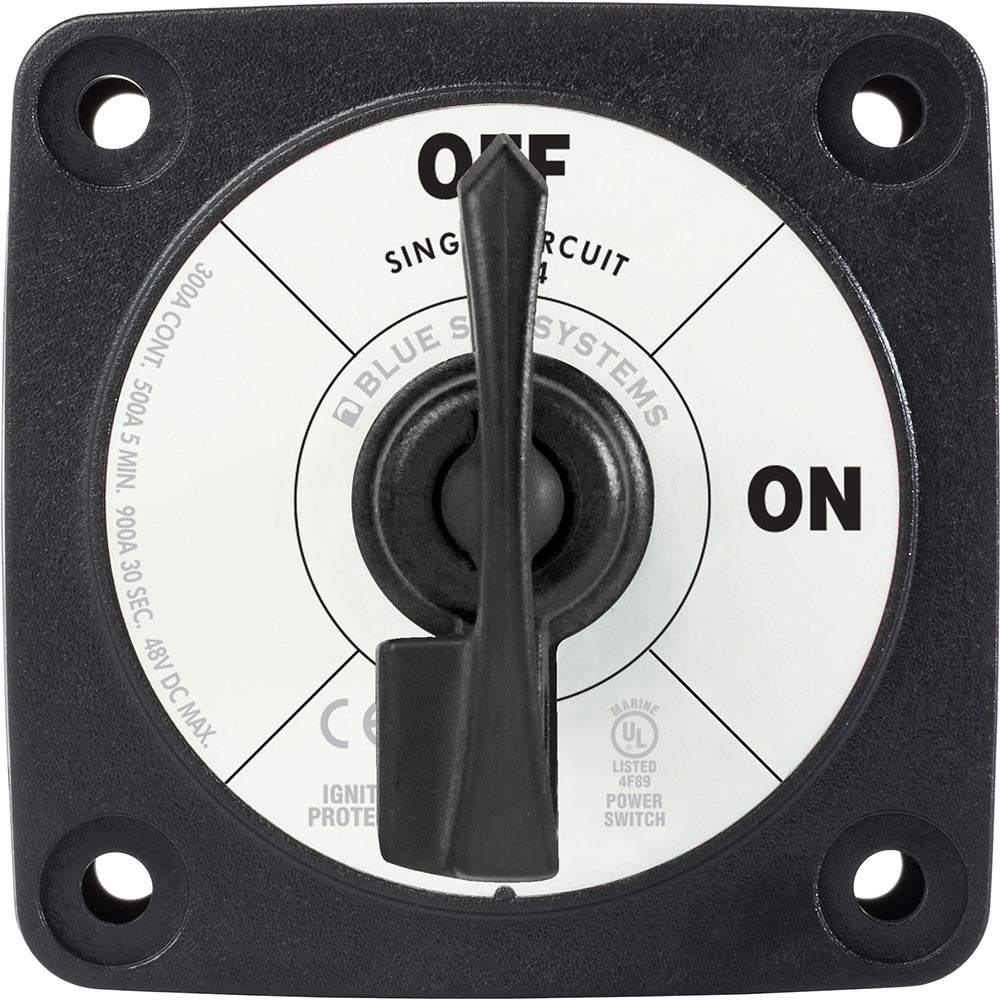

Blue Sea Systems M-Series 6004200-BSS Battery Switch - On/Off Locking Key, Black

The Blue Sea Systems Single Circuit ON-OFF with Locking Key - Black (Model: 6004200-BSS) is a high-quality battery switch designed for outboards and small gasoline or diesel engines. It features tin-plated copper studs for maximum conductivity and corrosion resistance, and the studs accept 3/8" (M10) ring terminals. With a 300 Amps continuous rating, this battery switch is a reliable and safe choice for your boat or vehicle.

Product Features

• Tin-plated copper studs for maximum conductivity and corrosion resistance
• Studs accept 3/8" (M10) ring terminals
• 7/8" (22mm) stud length accepts multiple cable terminals
• Blue Sea Systems one-piece terminal stud design never loosens over time

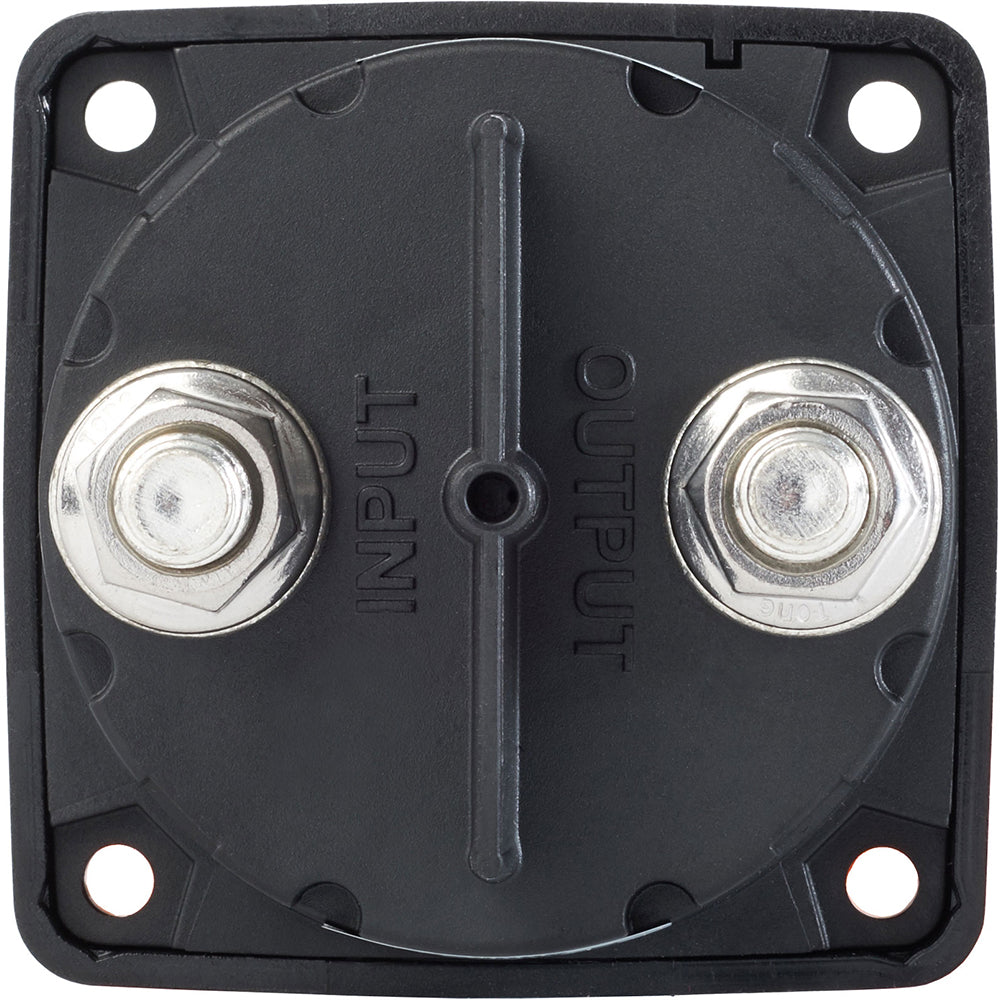

• Isolating cover with three snap-in side pieces protects rear contacts and allows wire access in any direction

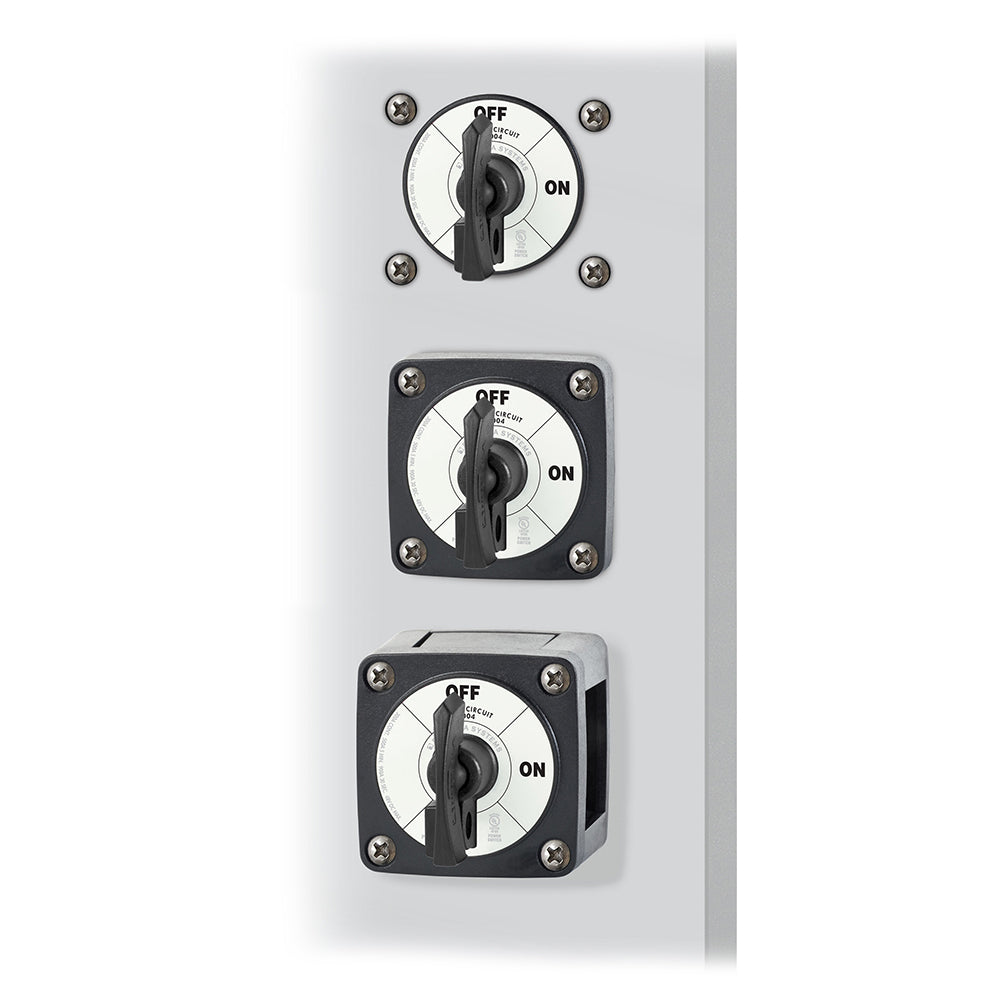

• Case design allows surface, rear, or front panel mounting options
• Waterproof – rated IP66 from water projected in powerful jets
• One-piece stainless flange nuts ensure safe and secure connections
• Breakout tabs allow wire access in any direction

Specifications

• Switch Type: Single Circuit ON-OFF
• Color: Red
• Maximum Voltage: 48V DC
• Stud Size: 3/8"
• Continuous Rating: 300A
• Intermittent Rating: 500A
• Cranking Rating 30 sec: 900A
• Stud Material: Tinned Copper
• Stud Torque: 120 in-lb (13.56 Nm)

Learn More

• Battery Switches on Wikipedia
• Blue Sea Systems on Wikipedia

Product: Blue Sea Systems 6004200-BSS M-Series Battery Switch On/Off - Black Locking Key

Brand: Blue Sea Systems

Model: 6004200
