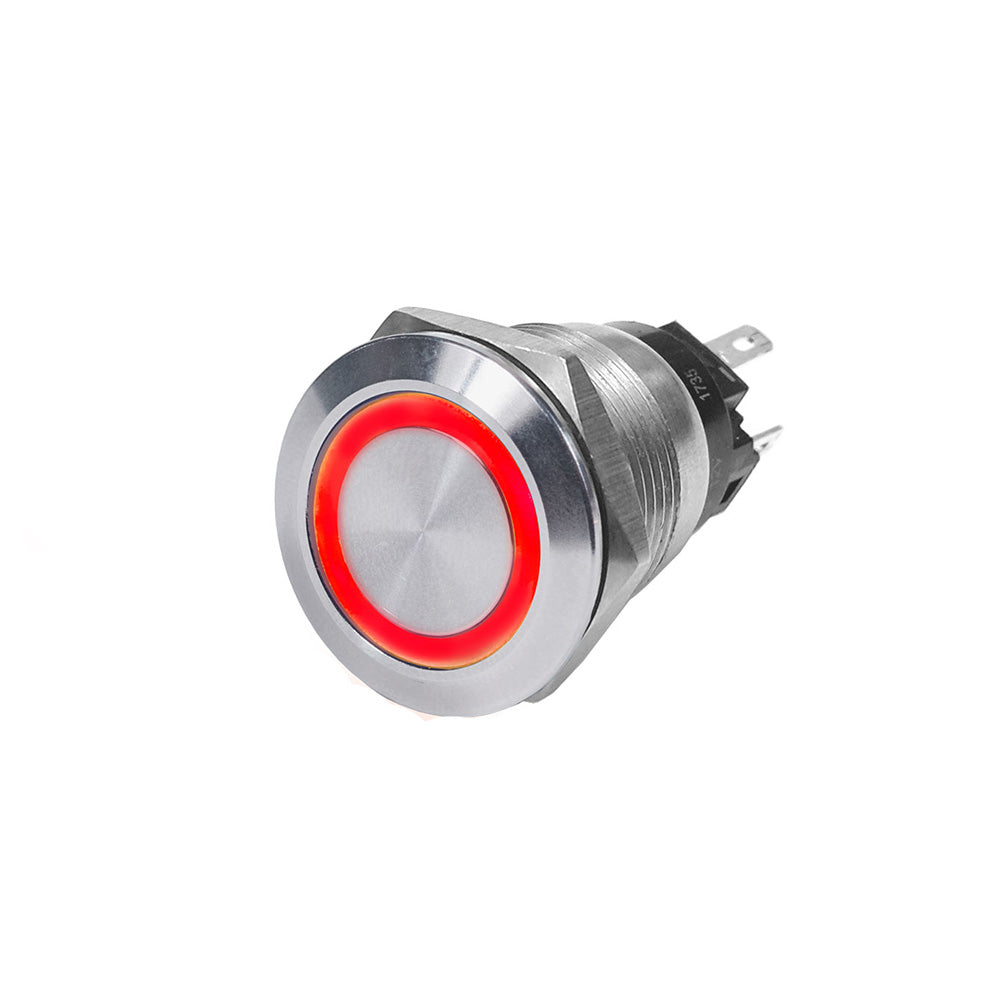

10A PUSH BUTTON LED RING SWITCH

The 10A PUSH BUTTON LED RING SWITCH is a versatile and reliable electrical switch designed for various applications. With a maximum amperage of 10A at 12V DC, this switch offers a reliable and efficient solution for controlling electrical circuits.

Product Features:

• 10A continuous amperage rating
• Single Pole Double Throw or Single Pole Single Throw configuration
• Can be wired for normally open or normally closed operation
• Installs easily with included .110inch quick connects
• Independent illumination with separate contacts for LED power
• Durable construction for long-lasting performance

Specifications:

• Action: OFF-(ON)
• Amperage: 10A at 12V DC
• Nominal Voltage: 12V DC
• Maximum LED Operating Current: 20mA
• Minimum Operating Temperature: -10° C
• Maximum Operating Temperature: 70° C
• Minimum Storage Temperature: -55° C
• Maximum Storage Temperature: 85° C
• Mounting Hole: 19mm
• Switching Cycles: 18,000
• Termination: 5 – 0.110inch Quick Connect terminals

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to .

Learn More:

• Electrical Switch on Wikipedia

Product: Blue Sea Systems 4163-BSS 10A Red LED Push Button Switch - Off-On

Brand: Blue Sea Systems

Model: 4163
