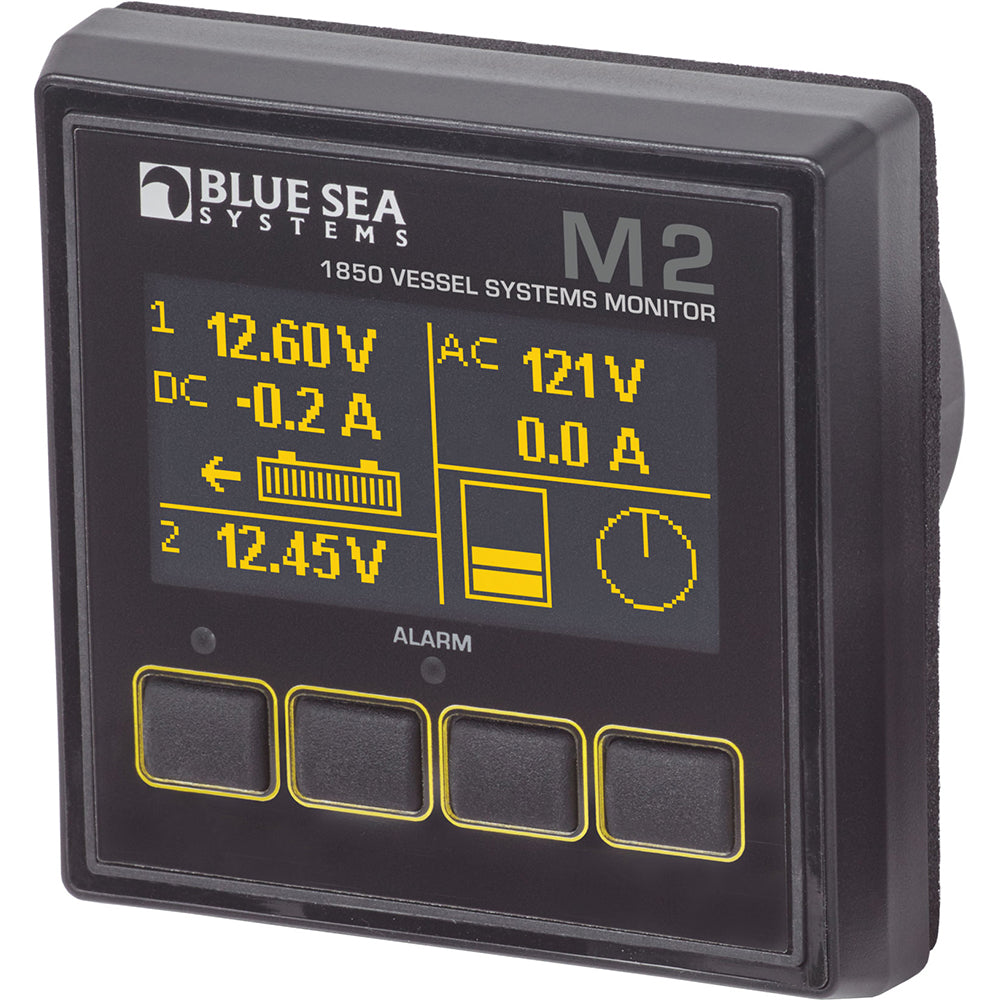

Blue Sea Systems 1850 M2 Vessel Monitor - Marine Monitoring System with Advanced Features

The Blue Sea Systems 1850 M2 Vessel Monitor is a comprehensive marine monitoring system designed to provide advanced monitoring capabilities for four critical systems in one compact organic LED digital monitor.

Product Features:

• Performs comprehensive monitoring of four critical systems in one compact organic LED digital monitor.
• DC System Monitoring (up to two batteries):
• Monitors DC voltage, state-of-charge, and current for one battery bank.
• Additionally monitors the voltage of an additional battery bank.
• Alarms for high and low voltage, high current, and low battery.
• AC System Monitoring:
• Monitors AC voltage, current, and frequency.
• Alarms for high and low voltage, high current, and high and low frequency.
• Bilge & Tank Monitoring:
• Two inputs can be configured as a bilge or tank monitor.
• When configured as a bilge input, monitoring functions include pump active, cycle count in the last 24-hours, average cycles in a typical 24-hour period, and total cycles.
• High alarms for minutes of run time in the last hour and number of cycle counts in the last 24-hours.
• When configured as a tank input, tank status can be represented in capacity (gallons or liters) or as a percentage of capacity.
• Custom tank shapes can be auto-calibrated or programmed.
• High and low level alarms can be set for all tanks.

Specifications:

• Meter: Bilge, Current, Tank, Voltage
• Frequency: 40-90Hz
• Current Range: 0-150A AC/-500 to 500A DC
• Operating Voltage: 40-300V AC/7-70V DC
• Minimum Current Draw: 18.8mA at 12V, backlight off/35mA at 12V, backlight off
• Nominal Voltage: 120V AC, 230V AC, 12V DC, 24V DC, 48V DC

Learn More:

For more information about the Blue Sea Systems 1850 M2 Vessel Monitor, please visit the Blue Sea Systems Wikipedia page.

To learn more about vessel monitoring systems, please visit the Vessel Monitoring System Wikipedia page.

Product: Blue Sea Systems 1850 M2 Vessel Monitor

Brand: Blue Sea Systems

Model: 1850

Shipping Weight: 1.45 lb

Shipping Height: 4.00 in

Shipping Width: 6.00 in

Shipping Length: 8.00 in
