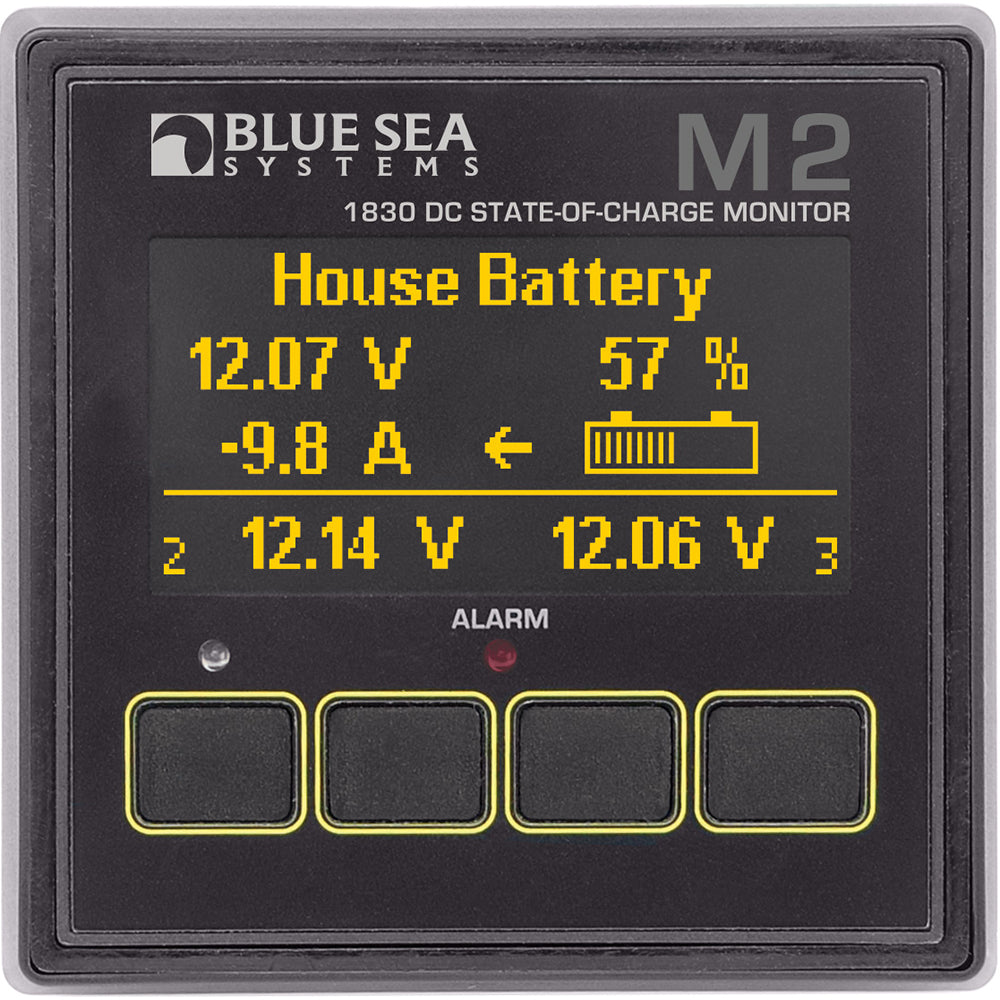

Blue Sea Systems 1830 Digital Meter M2 OLED State of Charge

The Blue Sea Systems 1830 Digital Meter M2 OLED State of Charge is a highly accurate and reliable DC multimeter that allows you to measure and monitor the state-of-charge of 1 bank. With its advanced features and programmable shunt ratios, this meter is perfect for a wide range of applications.

Product Features:

• Accurately measures and monitors State-of-Charge of 1 bank
• Measures 3 voltages and 1 current
• Supports programmable shunt ratios
• External relay activation

Specifications:

• Meter Current State-of-Charge Voltage: 8 to 70V to 5000A
• Maximum Voltage: 12V, 24V, 48V
• Resolution: 0.01V DC
• Input Voltage: 7-70V DC
• Alarms: High Current, High/Low Voltage, Low Battery
• Current Range: -500 to 500A
• Display Size: 55mm x 28mm
• Maximum Power Consumption: 1.00 Watt
• Minimum Power Consumption: 0.3 Watt
• Voltage Accuracy: +/- 1.0%

What's in the Box:

• M2 Head unit
• Surface Mount Cover
• Mounting Ring
• Connector
• Surface mount bezel
• Flush mount bezel
• Mounting nut
• Screwdriver
• Surface mount gasket
• Flush mount clamp
• Shunt #8255

Learn More:

• Blue Sea Systems
• Multimeter
• State of Charge

Product: Blue Sea Systems 1830 Digtal Meter M2 Oled State Of Charge

Brand: Blue Sea Systems

Model: 1830-BSS

Shipping Weight: lb

Shipping Height: in

Shipping Width: in

Shipping Length: in
