Blue Sea Systems 11003 HD-Series Battery Switch & Alternator Field Disconnect

The Blue Sea Systems 11003 HD-Series Battery Switch & Alternator Field Disconnect is a high-quality battery switch that meets the American Boat and Yacht Council (ABYC) requirements. It is designed to be safe for installation aboard gasoline-powered boats, making it an ideal choice for marine applications.

The battery switch features a versatile case design that allows for both surface and rear panel mounting, providing flexibility in installation. It accepts two 4/0 AWG (95mm) battery cables, ensuring compatibility with a wide range of battery setups. The M12 tin-plated copper studs offer maximum conductivity and corrosion resistance, and they can accept 1/2" and M12 ring terminals. With a 7/8" (22.22mm) stud length, the switch can accommodate multiple cable terminals.

The Blue Sea Systems 11003 HD-Series Battery Switch & Alternator Field Disconnect is designed with tactile textures that indicate the knob position by feel only, enhancing usability. Its switch ratings are as follows:

• 10 Sec: 2750A
• 60 Sec: 1150A
• 5 Min: 700A
• Continuous: 500A
• Max Voltage: 32V DC

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to .

Features:

• Meets American Boat and Yacht Council (ABYC) requirements for battery switches
• Ignition protected safe for installation aboard gasoline powered boats

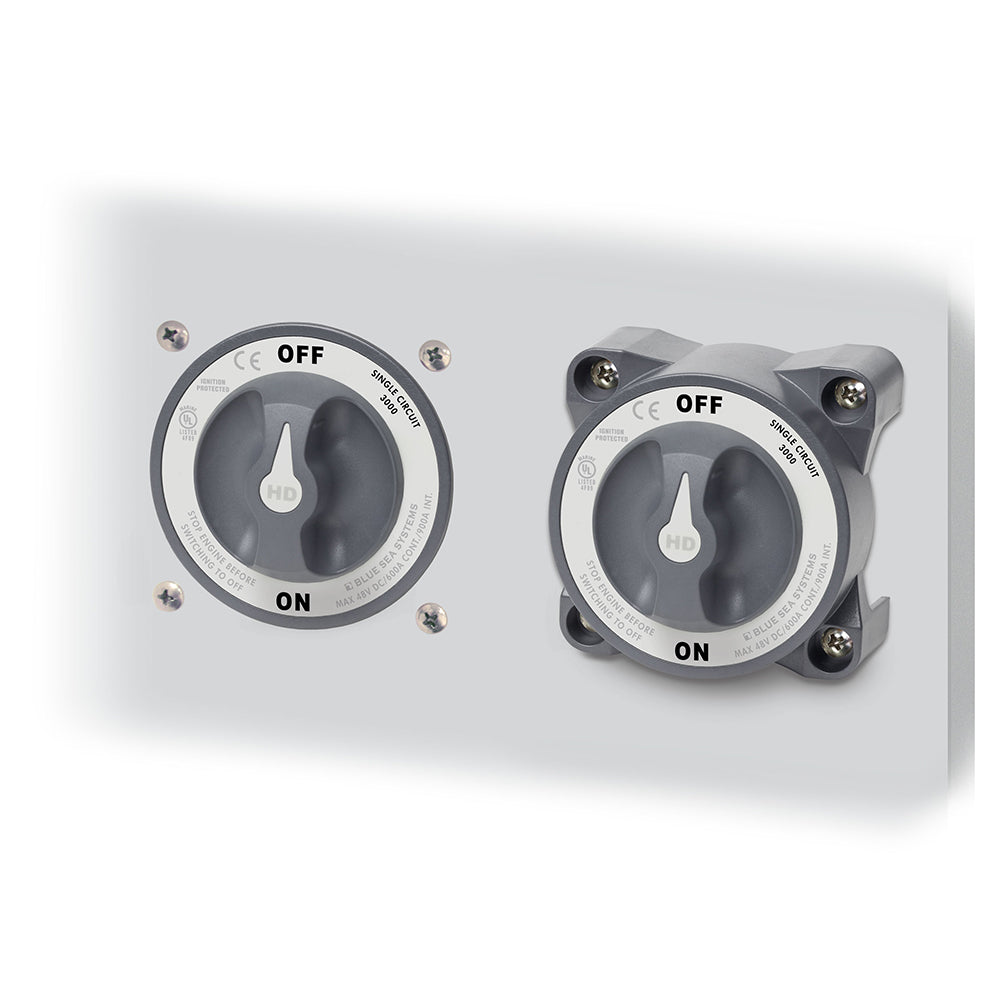

• Case design allows surface or rear panel mounting
• Accepts two 4/0 AWG (95mm) battery cables

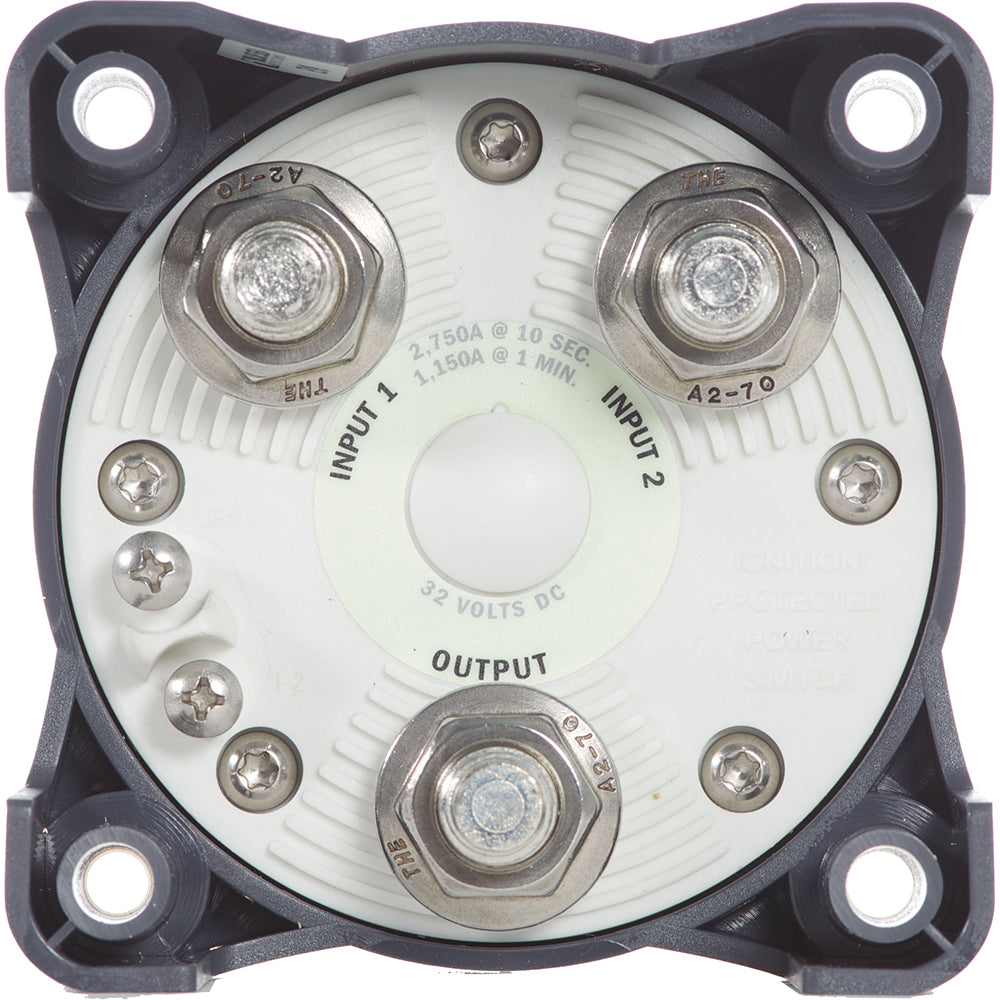

• M12 tin-plated copper studs for maximum conductivity and corrosion resistance, accepts 1/2" and M12 ring terminals
• 7/8" (22.22mm) stud length to accept multiple cable terminals
• Tactile textures indicate knob position by feel only
• Case design allows surface or rear panel mounting

Specifications:

• Switch Ratings:
• 10 Sec: 2750A
• 60 Sec: 1150A
• 5 Min: 700A
• Continuous: 500A
• Max Voltage: 32V DC

Learn More

• Battery Switch on Wikipedia
• Alternator on Wikipedia

Product: Blue Sea Systems 11003 Hd-Series Battery Switch Alternator Field Disconnect

Brand: Blue Sea Systems

Model: 11003

Shipping Weight: 1.30 lb

Shipping Height: 3.00 in

Shipping Width: 7.00 in

Shipping Length: 9.00 in
