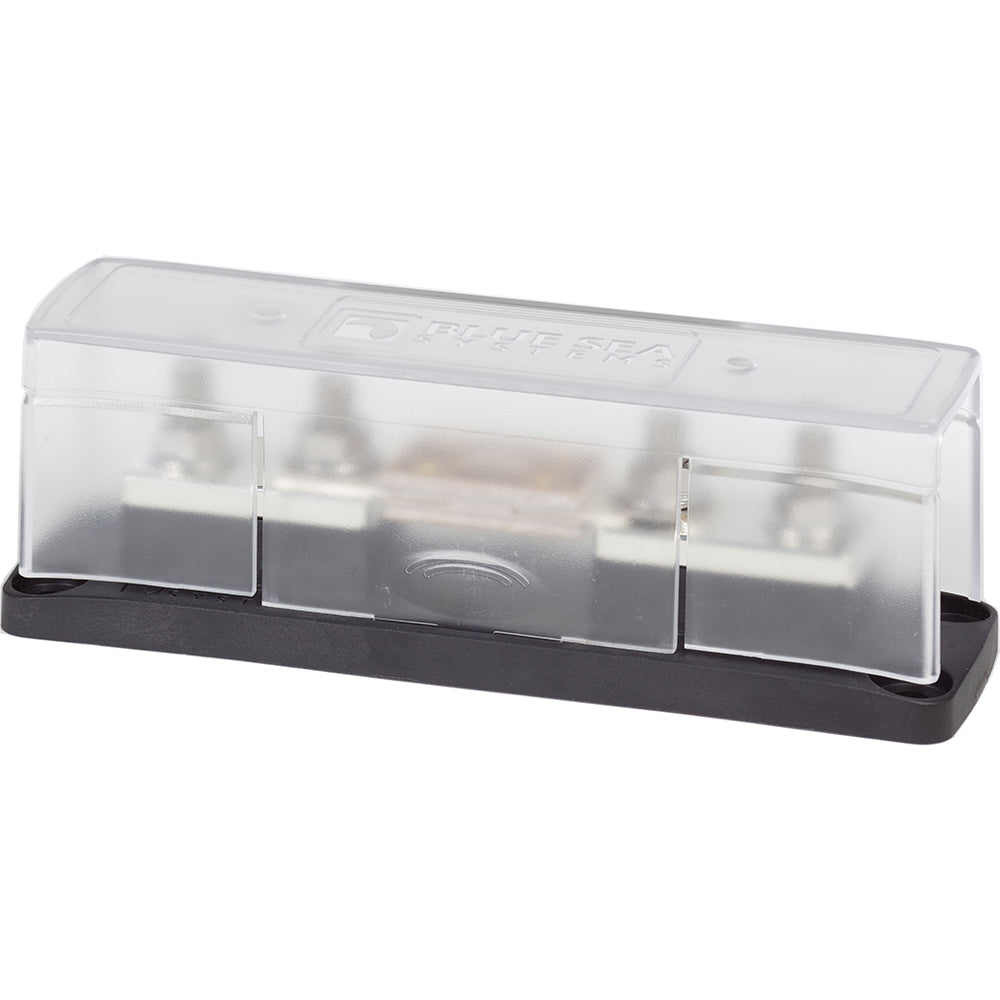

Blue Sea 5503-BSS ANL Fuse Block 325-750A - Replacement for 5003

The Blue Sea 5503-BSS ANL Fuse Block is a replacement for the 5003 and is designed for use on systems up to 32 volts DC. This fuse block features a swing-out design that allows for easy replacement of the fuse without removing fasteners. The stainless steel studs provide resistance to corrosion and high torquing for excellent electrical contact, while the UL 94-V0 base resists high heat. The insert molded studs ensure secure fuse mounting and the insulating cover satisfies ABYC/USCG requirements. The cover breakouts allow wire access in any direction and the fuse is sold separately. This product includes a cover and accepts 5/16" (M8) ring terminals.

Product Features:

• Cover included
• Accepts 5/16" (M8) ring terminals
• For use on systems up to 32 Volts DC

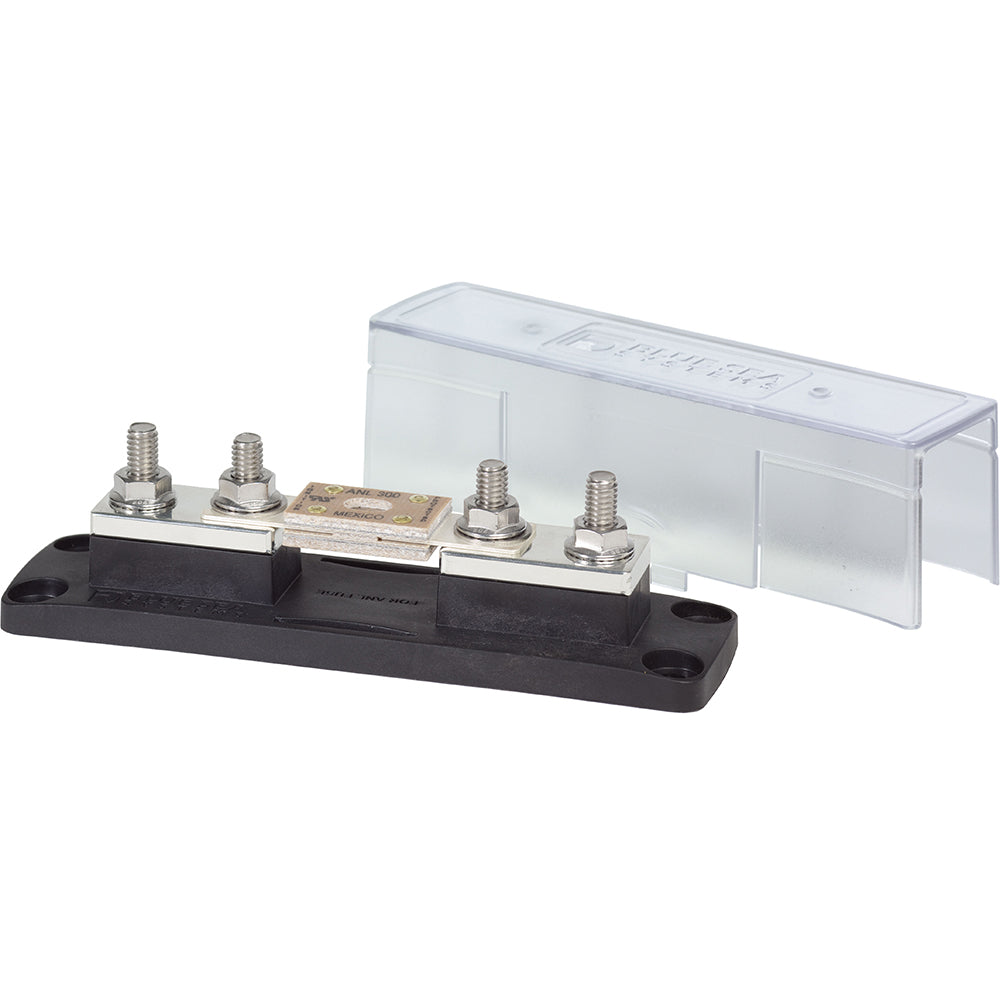

• Swing out design allows replacement of the fuse without removing fasteners
• Stainless steel studs provide resistance to corrosion and high torquing for excellent electrical contact
• UL 94-V0 base resists high heat
• Insert molded studs ensure secure fuse mounting
• Insulating cover satisfies ABYC/USCG requirements
• Cover breakouts allow wire access in any direction
• Fuse sold separately

Specifications:

• Product Type: ANL Fuse Block
• Amperage: 325-750A
• Color: Black
• Material: Stainless Steel
• Dimensions: 3.75"L x 1.75"W x 2.5"H
• Weight: 0.4 lbs

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to.

Learn More:

• Fuse (Electrical) - Wikipedia
• ANL Fuse - Wikipedia
• Blue Sea Systems - Wikipedia

Product: BLUE SEA 5503-BSS Fuse Block Anl 325 750A /Was 5003

Brand: BLUE SEA

Model: 5503-BSS
