Black Box UVX-DP-TP-100M AV extender AV transmitter & receiver

Extend 4K DisplayPort audio and video, USB, RS-232, and power up to 330 feet over a single cable.

- Get brilliant video by transmitting uncompressed, native 4K @ 30 Hz UHD DisplayPort signals.

- Supports resolutions up to 4K, including 3840 x 2160 and 1080p/60 Deep Color.

- Simultaneously transmits bidirectional analog stereo audio.

- With USB 2.0 passthrough, you can extend keyboard and mouse or other peripheral signals.

- Use HDBaseT technology for the highest quality and reliability.

- Use 48 V PoH (Power over HDBaseT) to power received unit from the transmitter.

- Transmit 330 feet (100 meters) over CAT6A/CAT7 cables.

- HDCP 2.2 compliant and supports EDID transmission.

- Easy, plug-and-play setup. No software or drivers to install.

DisplayPort, USB 2.0, HDBaseT, HDCP 2.2, 3.5-mm, 3-pin, 48 V PoH

Features:

• Type: AV transmitter & receiver
• DC-in jack: Y
• HDBaseT port: Y
• Audio input: 2
• Audio output: 2
• USB connector type: USB Type-A,USB Type-B
• USB ports quantity: 3
• Maximum resolution: 3840 x 2160
• Bandwidth: 10.2
• Cable types supported: Cat5e,Cat6,Cat6a,Cat7
• Maximum transfer distance: 100
• Supported video modes: 1080p,2160p
• Supported graphics resolutions: 1280 x 720 (HD 720),1280 x 800 (WXGA),1920 x 1080 (HD 1080),1920 x 1200 (WUXGA),3840 x 2160
• Operating temperature (T-T): 0 - 45
• Storage temperature (T-T): -20 - 70
• Receiver dimensions (W x D x H): 200.9 x 100.3 x 25.1
• Transmitter dimensions (WxDxH): 200.9 x 100.3 x 25.1
• Receiver weight: 500
• Transmitter weight: 500
• USB version: 2.0
• HDCP: Y
• HDCP & EDID bypass: Y
• Operating voltage: 12
• Output current: 2
• Mounting brackets included: Y
• Manual: Y
• AC adapter included: Y
• Electrostatic Discharge (ESD) protection: 8
• Operating relative humidity (H-H): 10 - 90
• AC input voltage: 100-240
• AC input frequency: 50 - 60
• Input current: 1.5
• Cable length: 1.8
• Power consumption (typical): 14.2
• LED indicators: Link,Power,Status
• Product color: Black
• Connector(s): IEC320, C14

Learn More

Learn more about DisplayPort

Learn more about USB

Learn more about HDBaseT

Learn more about HDCP

Learn more about RS-232

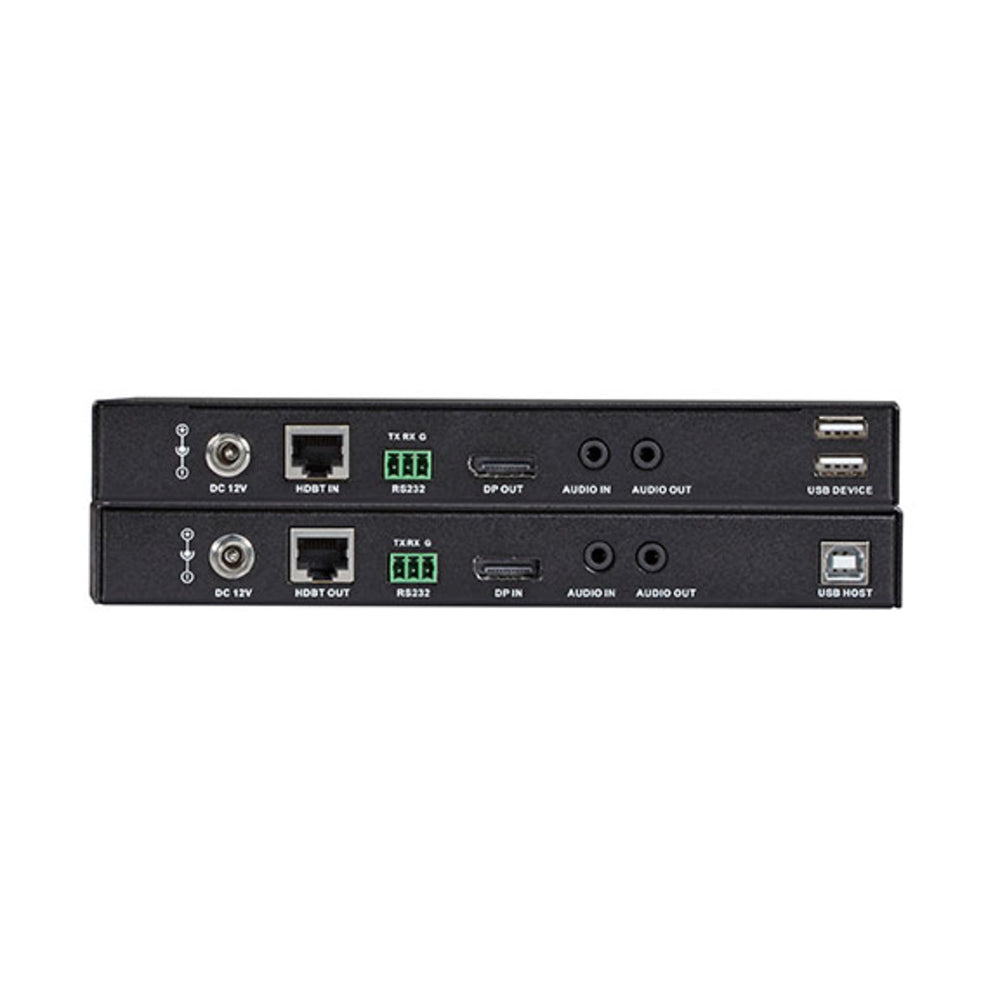

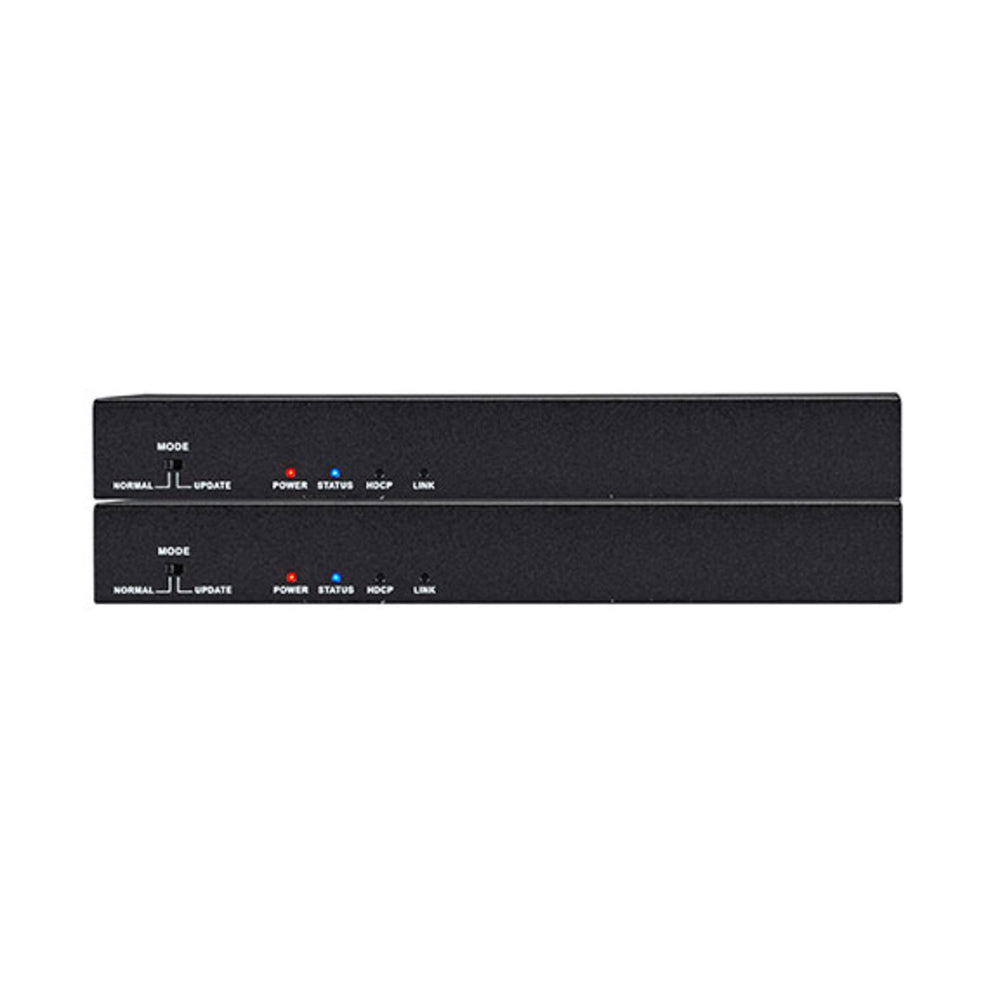

Product: Black Box Corporation Uvx-Dp-Tp-100M 4K Usb 2.0 Rs-232 Audio Video E Xtender

Brand: Black Box

Model: UVX-DP-TP-100M
