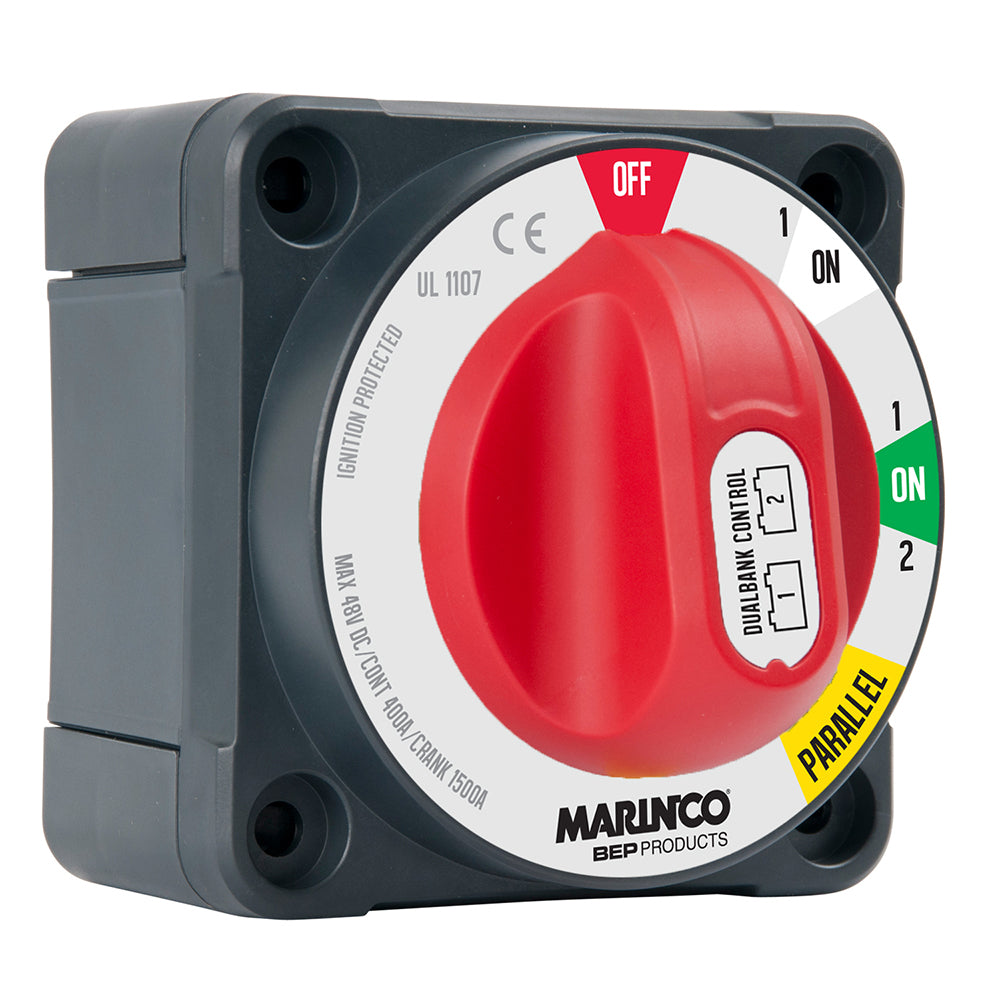

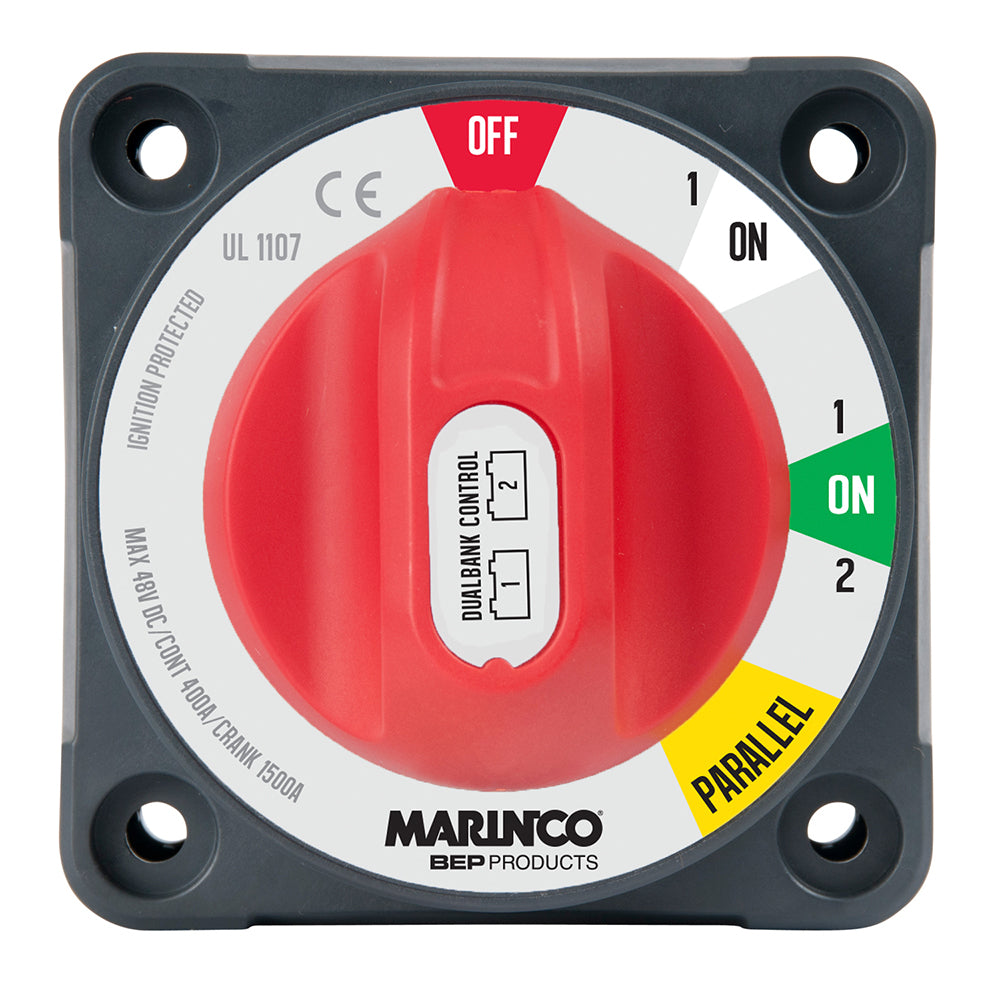

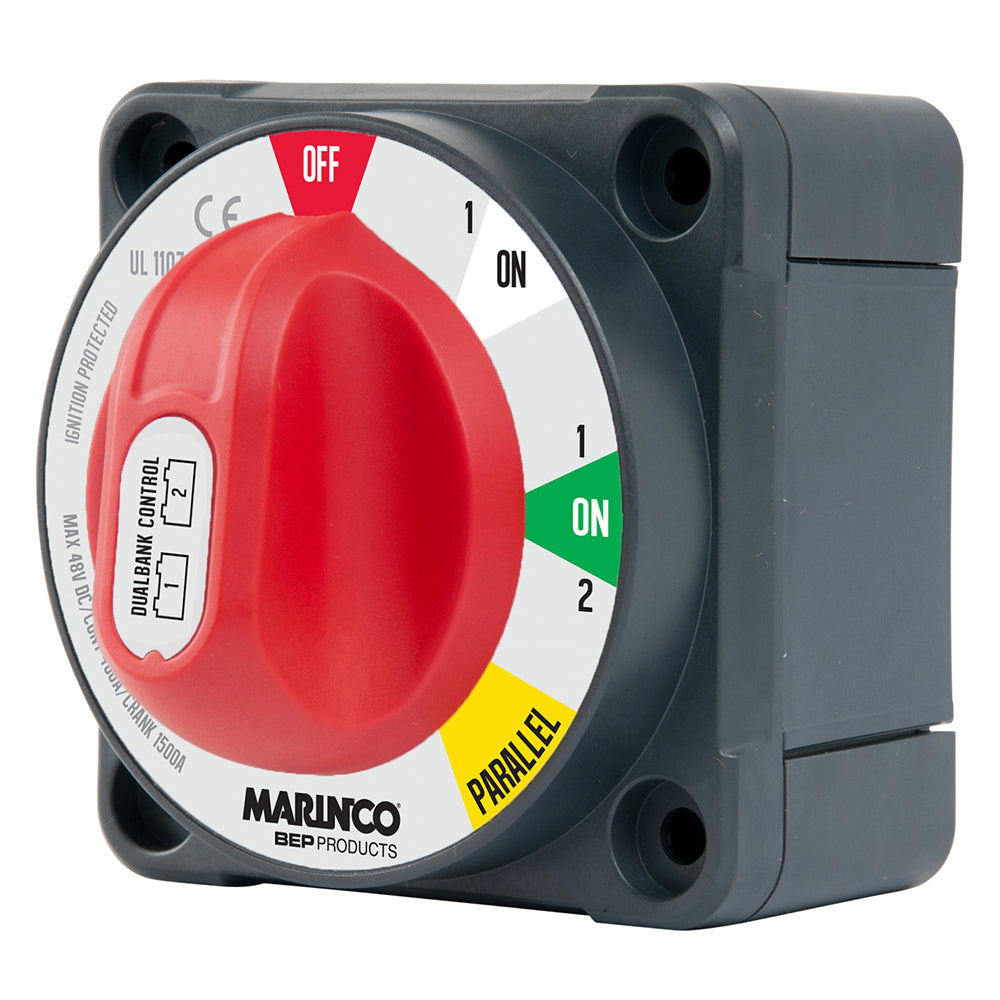

Bep Marine Pro Installer 400A Dual Bank Control Switch - 772-Dbc Mc10

The Bep Marine Pro Installer 400A Dual Bank Control Switch - 772-Dbc Mc10 is a versatile and innovative switch designed for boaters. It combines the functionalities of three switches into one, including House, Start, and Emergency Parallel. With its easy intuitive control, this switch offers convenience and flexibility to the users.

One of the key features of the Dual Bank Control switch is its unique isolated-On position. This position allows the use of house loads and VHF radio while electrically isolating the engine. It also enables the engine to be isolated during servicing while still providing power to house loads such as lighting, stereo, and fridge. This switch is especially useful for boats or vehicles with a single engine and house battery bank, as it allows the use of optimized battery banks for their respective loads.

Unlike selector battery switches, the Dual Bank Control switch separates house and engine loads during normal operation, protecting sensitive electronics from starter motor induced voltage spikes. It is tested to UL1107 ignition protection and CE standards, ensuring safety and reliability.

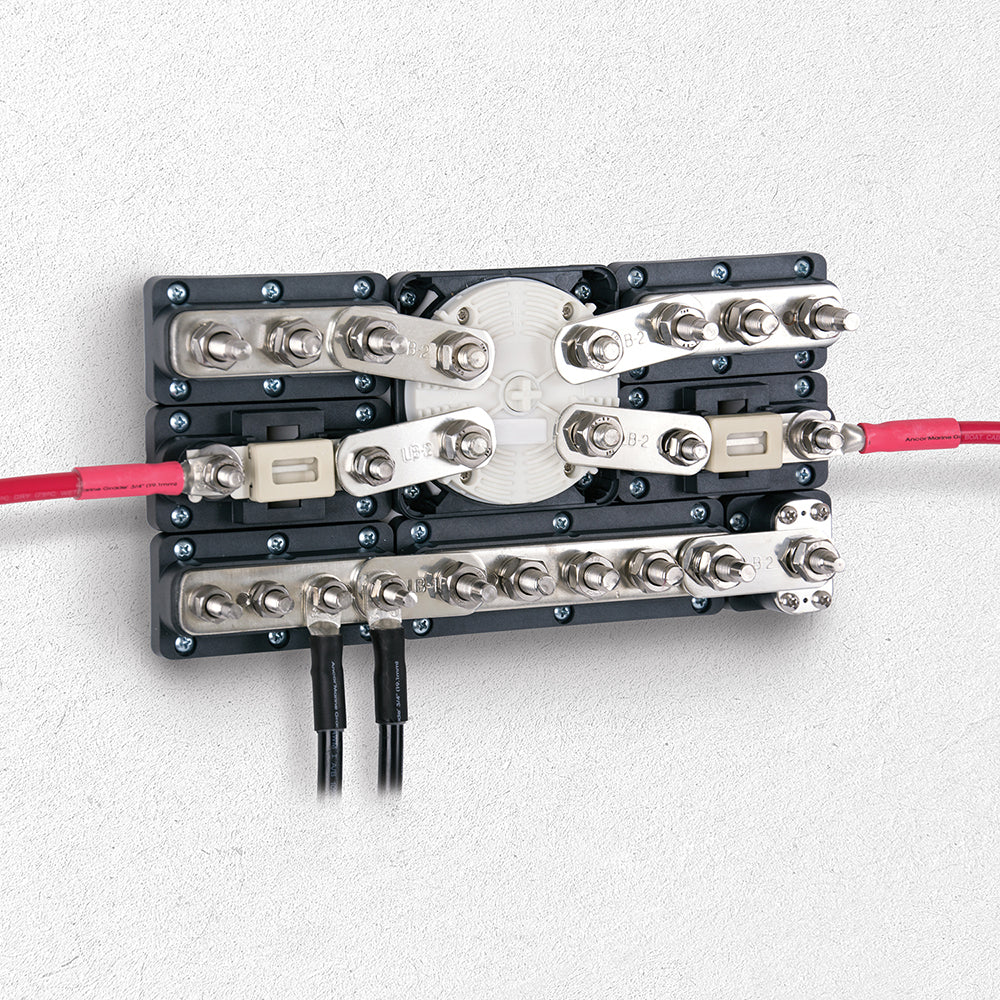

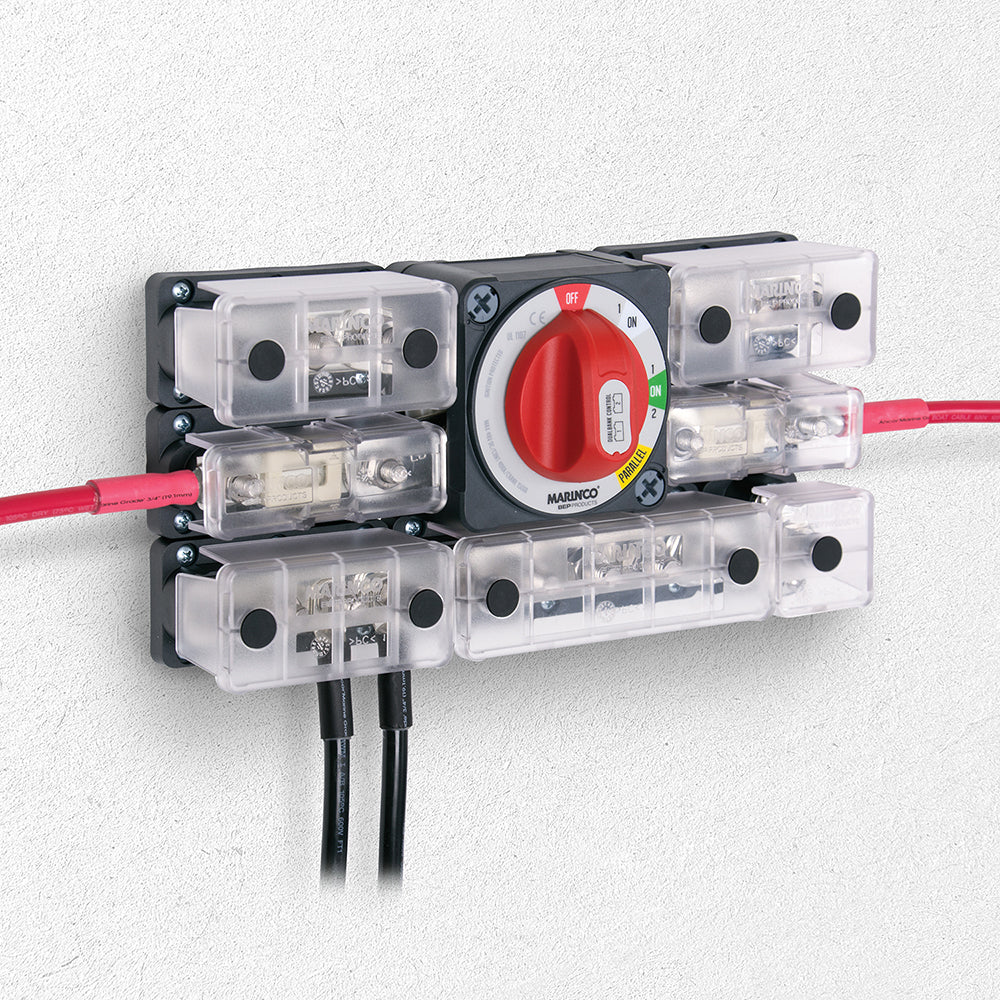

Installation of the Dual Bank Control switch is made easy with the revolutionary EZ Mount system. It allows for front wiring, resulting in the easiest surface mounting. The switch can be directly clustered with the Pro Installer Busbar Range, thanks to its shared interconnection height, resulting in fast and compact installations. The optimized cable access further simplifies the installation process.

Specifications:

• Mounting: Surface, Rear or Front
• Voltage: 48v DC (for 12-48v systems, both banks must be the same voltage)
• Rating: 400 Cont / 600 Inter / 1500 Crank
• Dimensions: 3.85" x 3.85" x 3.62"
• Operation: 1, 1/2, Parallel, Off
• Stud: 4x 10 mm (3.8")

Warning: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to DEHP Wikipedia.

Learn More

• Battery Switch Wikipedia
• VHF Radio Wikipedia
• Deep Cycle Battery Wikipedia

Product: Bep Marine Pro Installer 400A Dual Bank Control Switch - 772-Dbc Mc10

Brand: Bep Marine

Model: 772-DBC

Shipping Weight: 1.20 lb

Shipping Height: 4.00 in

Shipping Width: 7.00 in

Shipping Length: 8.00 in
