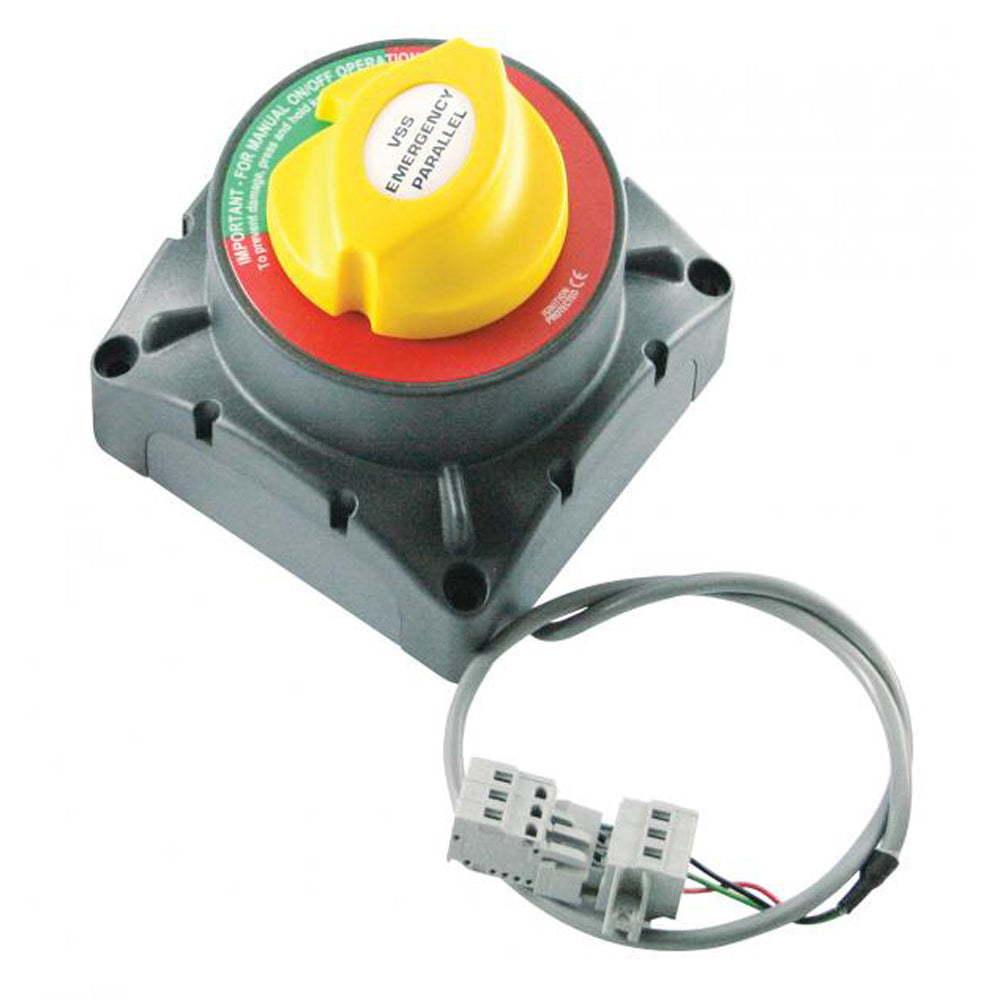

BEP Marine 720-MDVSO 12/24V 500A Dual Operation VSS Switch - Heavy Duty Optic

The BEP Marine 720-MDVSO 12/24V 500A Dual Operation VSS Switch is a high-quality voltage sensitive switch designed for marine environments. It automatically senses the voltages of connected battery banks and provides optimal and efficient charging of the second bank. This switch allows for independent battery banks to be combined or isolated based on the presence of a charging source, such as an engine alternator or battery charger. It also offers a remotely activated, high current, emergency parallel connection.

The BEP Marine 720-MDVSO switch is built to last with its tinned copper conductors, stainless steel nuts, and high temperature, fiber-reinforced plastics construction. It is ignition protected and provides reliable On/Off switching operation. The switch can be recessed or surface mounted for convenient installation.

One of the key features of this switch is its dual battery sensing capability, which ensures accurate voltage detection. It also offers a manual override option for added control. The switch supports dual 12/24-volt operation, but both battery banks must be of the same voltage. With low power consumption (<6mA), it is energy-efficient. The lowered cut-in voltage (13.3/26.6V) is suitable for low output alternators and high temperature environments.

Product Features:

• Dual battery sensing
• Manual override option
• Dual 12/24 volt operation (both banks must be same voltage)
• Low power consumption (<6mA)
• Lowered cut-in voltage (13.3/26.6V) suits low output alternators and high temperature environments

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to .

Learn More:

• Voltage Sensitive Switch

Product: Bep Marine 720-Mdvso Dual Operation Vss Switch 12/24V Hd Optic 500A

Brand: Bep Marine

Model: 720-MDVSO

Shipping Weight: 1.10 lb

Shipping Height: 4.00 in

Shipping Width: 4.00 in

Shipping Length: 5.00 in
