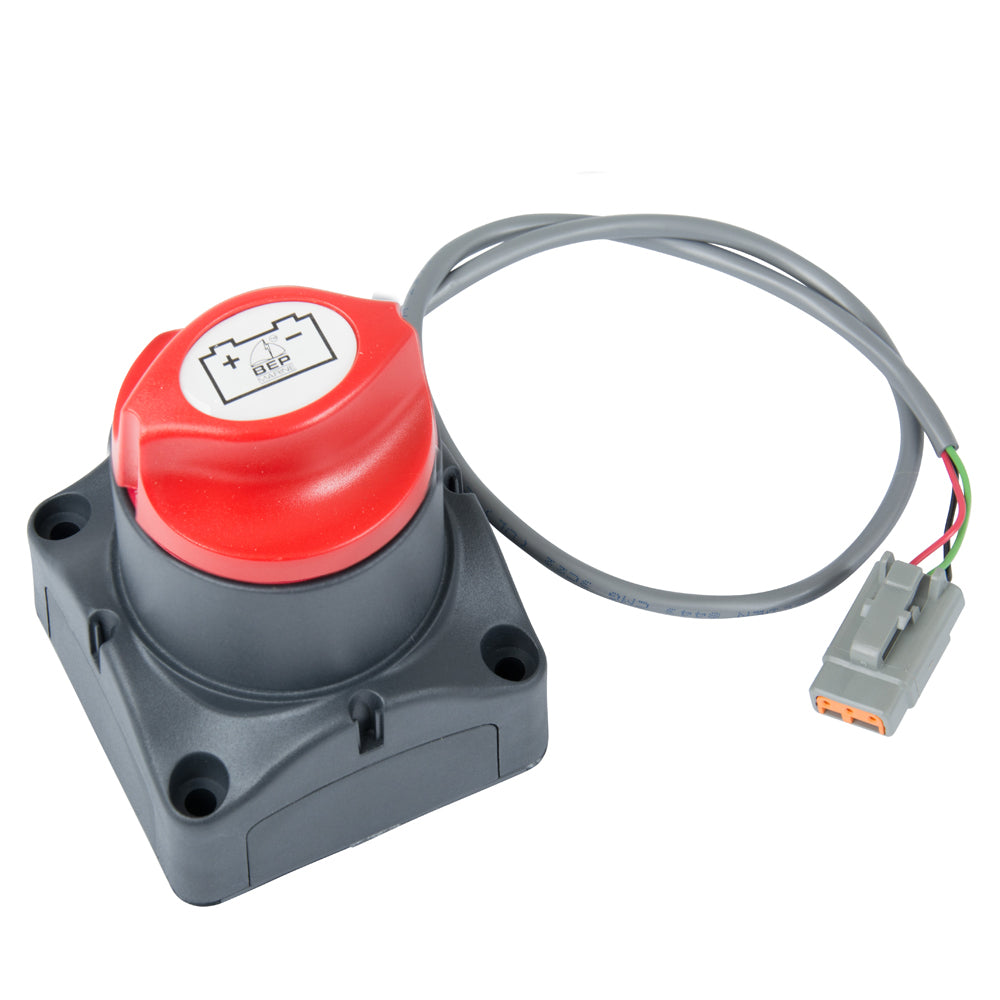

Bep Marine 701-MD-D 275A Remote Battery Switch with Deutsch Plug

The Bep Marine 701-MD-D 275A Remote Battery Switch with Deutsch Plug is designed to meet the increased load requirements and reduce the cost of copper battery cable. It allows for the installation of the battery switch close to the battery, resulting in shorter cable lengths to the starter motor and significant cost savings in copper cables. It is also ideal for remote isolation of bow thrusters.

Product Features:

• Remote operation for convenient control.
• Battery switch can be mounted alongside the battery, reducing cable lengths and sizes to the starter motor.
• Significantly reduces installation labor due to shorter battery cable runs.
• Manual override option to meet CE requirements.
• LED status identification for remote control switch.
• Same capacities and mounting options as standard BEP battery switches.
• Uses the same interchangeable labeling system as BEP battery switches.

Specifications:

• Power Draw: Switch off: 12mA, Switch on: 15mA, Switch operating: 120mA for 3 seconds at 12V nominal.
• Part No.: 701-MD
• Dimensions: 2.7 x 2.7 x 4 inches (L x W x H)
• Rating (Amps DC):
  • Continuous: 275
  • Intermittent: 455
  • Cranking: 1250
• Voltage (V DC): 9.5-32
• Function: On/Off
• Stud Size: 2 x (10 / 3/8) mm/in

Learn More:

• Battery Switch on Wikipedia
• Bow Thruster on Wikipedia

Product: Bep Marine 701-MD-D 275A Remote Battery Switch with Deutsch Plug

Brand: Bep Marine

Model: 701-MD-D

Shipping Weight: 0.80 lb

Shipping Height: 3.00 in

Shipping Width: 3.00 in

Shipping Length: 4.00 in
