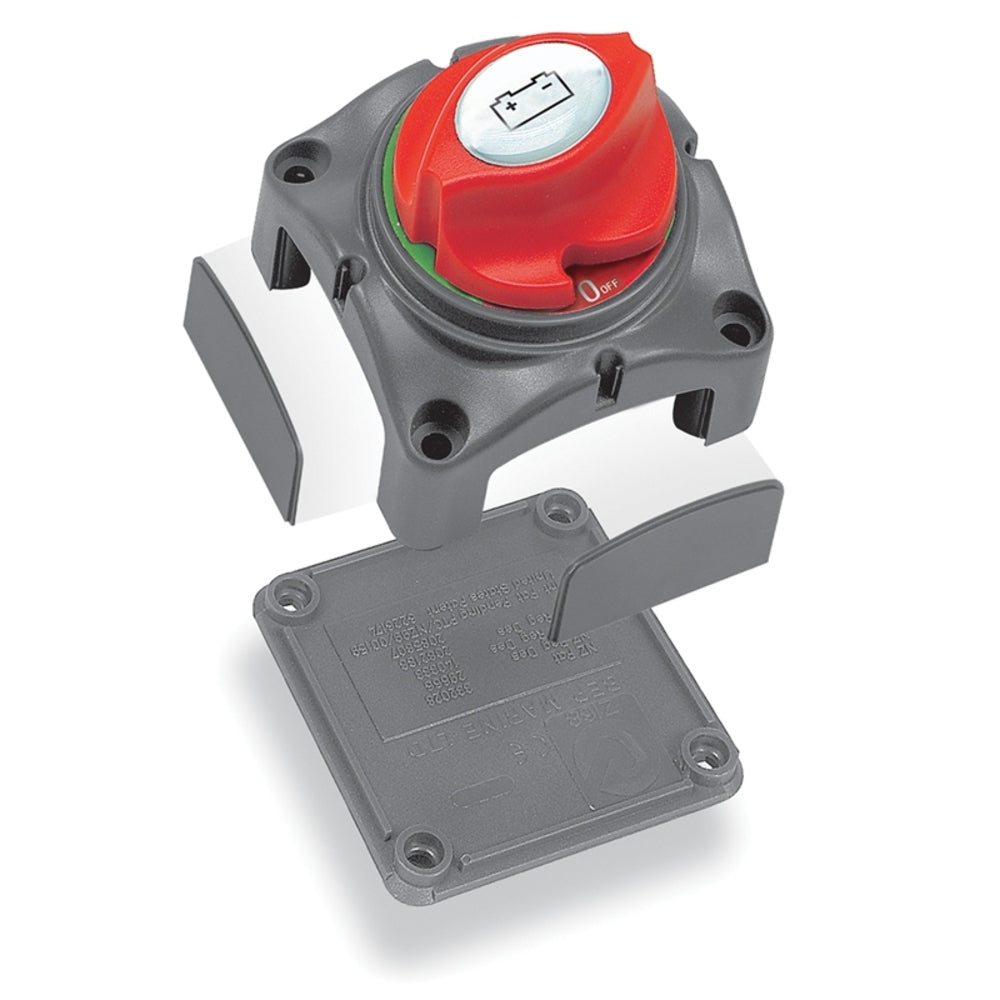

Bep Marine 701 Contour 275A Continuous Battery Disconnect Switch

The Bep Marine 701 Contour 275A Continuous Battery Disconnect Switch is a versatile and reliable switch designed to provide safe and efficient battery management. It features the innovative Contour Locking System, allowing it to be used as a standalone unit or locked together with other switches for added convenience and security.

The switch's control knob can be easily removed by switching it to a counterclockwise 45-degree position, providing flexibility and ease of use. Additionally, the control knob is equipped with an interchangeable labeling system that allows for a wide range of applications.

The Bep Marine 701 Contour Battery Disconnect Switch comes with three removable side plates, providing easy access for up to 1/0 cables. The rear cover of the switch is designed to insulate the rear terminals, protecting against short circuits and ensuring compliance with ABYC requirements.

Tested according to BEP Marine Battery Switch Test Procedures (UL 1107), this switch has a continuous rating for up to 1 hour, intermittent rating for up to 5 minutes, and cranking rating for engine starting for up to 10 seconds. It can handle maximum current loads without the rear terminals exceeding 100&degC (212&degF) above the ambient temperature. All BEP switches are independently tested by a third-party laboratory to meet these specifications.

Features:

• Can be either surface or recess mounted by cutting a 2.1" (52mm) hole
• Available with house knob (OEM # 701B-HB) or with chassis knob (OEM # 701B-CH)
• Tin-plated copper studs and nuts
• Ignition-protected

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to .

Specifications:

• Continuous Rating: 275A
• Mounting: Surface or recess
• Control Knob: Removable, counterclockwise 45-degree position
• Labeling System: Interchangeable
• Side Plates: 3 removable plates for cable access
• Rear Cover: Insulated against short circuits
• Tested Ratings: Continuous (1 hour), intermittent (5 minutes), cranking (10 seconds)
• Tested Temperature: Rear terminals do not exceed 100&degC (212&degF) above ambient temperature

Learn More:

For more information about battery disconnect switches, please visit Battery Disconnect Switch on Wikipedia.

Product: Bep Marine 701 Contour Battery Disconnect Switch 275A Continuous

Brand: Bep Marine

Model: 701

Shipping Weight:

Shipping Height:

Shipping Width:

Shipping Length:
