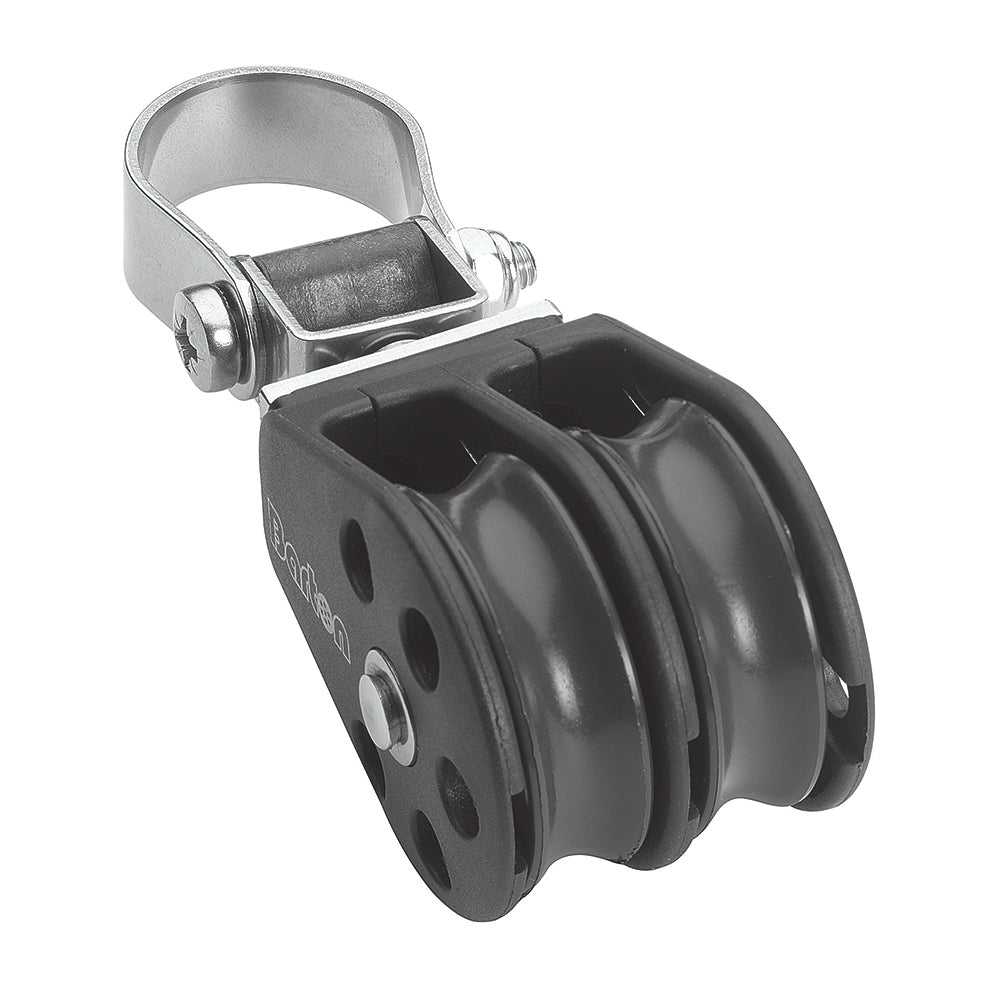

Barton Marine N02 290 Series 2 Double Stanchion Lead Block

Size 2 Double Stanchion Lead Block

Barton Marine's stanchion lead blocks have proven to be popular with Cruising sailors all over the World. Mounted onto the stanchion base, the stanchion lead block enables the Genoa furling line to be led back to the cockpit for easy adjustment.

Ball bearing sheaves have a precision molded acetal sheave running on a large diameter brass bearing, ensuring free running under the highest of loads. The unit will fully rotate about the swivel head to match your pulling angle.

Block attachment to stanchion is by means of screwing together the integral Stainless Steel strap.

Technical Specifications

• Sheave - Double
• Sheave Size - 1-3/8" (35mm)
• Maximum Rope Diameter - 5/16" (8mm)
• Safe Working Load - 815 lb (370 kg)
• Maximum Stanchion (Tube) Size - 1" (25mm)

Sold as an Individual

Features:

• Double stanchion lead block
• Precision molded acetal sheave
• Large diameter brass bearing
• Swivel head for adjustable pulling angle
• Stainless Steel strap attachment

Specifications:

• Sheave: Double
• Sheave Size: 1-3/8" (35mm)
• Maximum Rope Diameter: 5/16" (8mm)
• Safe Working Load: 815 lb (370 kg)
• Maximum Stanchion (Tube) Size: 1" (25mm)

Learn More:

• Barton Marine Wikipedia

Product: Barton Marine N02 290 Series 2 Double Stanchion Lead Block

Brand: Barton Marine

Model: N02290

Shipping Weight: 0.25 lb

Shipping Height: 2.00 in

Shipping Width: 3.00 in

Shipping Length: 5.00 in
