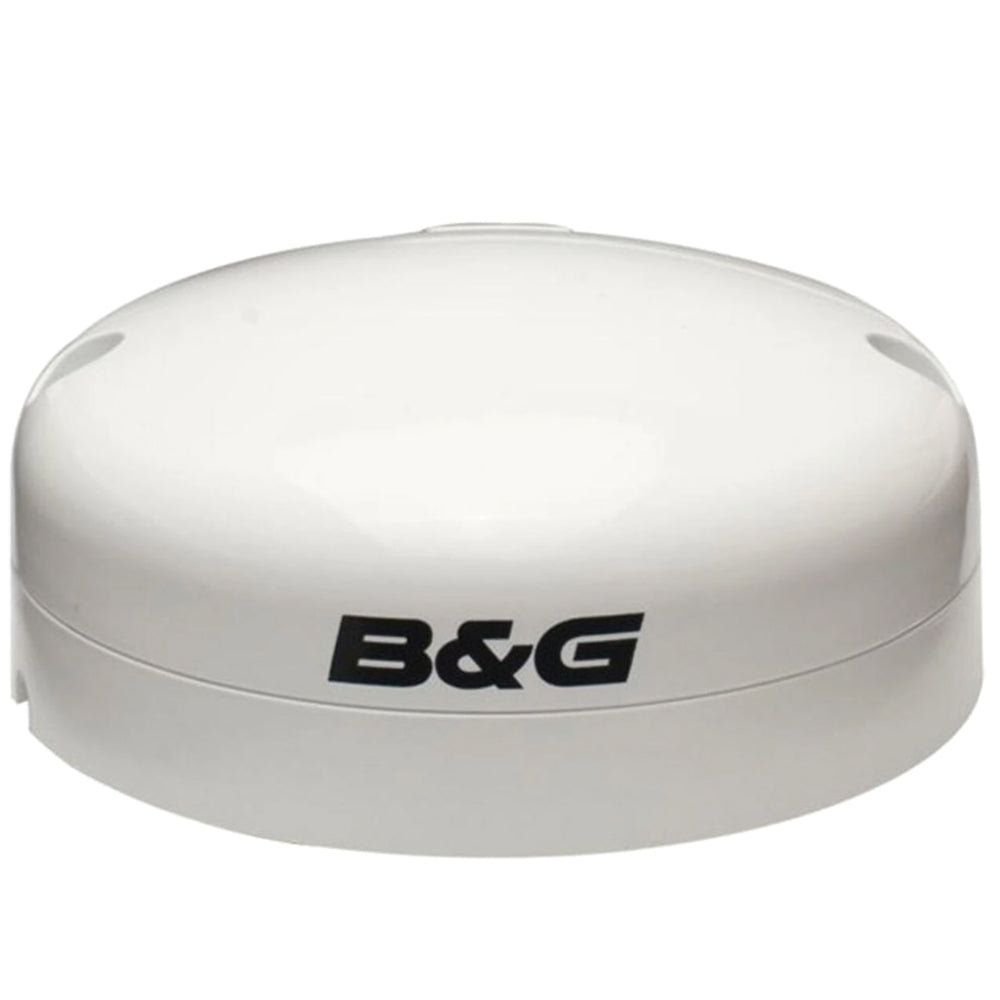

B&G USA 000-11048-002 ZG100 GPS Antenna N2K Compass

The B&G ZG100 GPS Antenna with Integrated Compass sensor is a rugged and precise position and heading sensor designed for marine environments. With spot-on, around-the-world accuracy, this antenna module supports GPS and GLONASS, WASS/EGNOS/MSAS, and is Galileo-capable with a future software update. It offers excellent time-to-first-fix, multi-GNSS, and high-speed updates for smoother and more accurate location updates.

The integrated rate stabilized compass provides chart stabilization, accurate course over ground filtering at low speed, and radar overlay. The rugged design of this antenna ensures durability in all marine environments, and it is fully waterproof for added protection.

The ZG100 GPS Antenna with Integrated Compass sensor also includes a spat/pole mount for easy installation and flexible boat location for optimal performance. It allows independent source selection on any display, providing convenience and versatility.

Please note that this antenna is not suitable for MARPA or steering of an autopilot. For those functionalities, it is recommended to use a Precision-9.

Specifications:

• General:
• Receiver Type: L1, C/A code, 1.575 GHz Frequency/L2 C/A code, 1.602 GHz Frequency
• Channels: 32 channels
• Position Update Rate: Up to 10 Hz (1, 5, 10)
• Horizontal Accuracy: 3 m (9.8 ft)
• Heading Accuracy: +/- 3&deg
• Rate of Turn: +/- 3&deg
• Pitch / Roll Accuracy at 30 degrees: 1 grade error
• Cold Start: 50 sec
• Start-Up Time: 3 sec
• Satellite Reacquisition: 5 sec
• Environmental:
• Operating Temperature: -25&degC to +60&degC
• Storage Temperature: -40&degC to +85&degC
• Splash Proof: IPX7
• Humidity: 40&degC, 93%RH, operating
• Electrical:
• Input Voltage: 9 V DC - 18 V DC
• Reverse Polarity Protection: Yes
• Power Consumption: Less than 2w
• Current Consumption: Less than 100 mA at 12 V DC
• Dimensions: 90 mm (diameter) x 38mm (height) / 3.54" (diameter) x 1.50" (height)
• Weight: 0.14 Kg (0.3 lbs) approx.
• Power/Data Cable: NMEA 2000 thru NMEA 2000 network
• Antenna Connector: NMEA 2000 Micro C: Lowrance attached cable with Micro-C connector
• Mounting: Flush mount / Standard Pole Mount
• Communications:
• Data I/O Protocol: NMEA 2000

What's in the Box:

• ZG100 GPS Antenna
• N2KEXT-6RD - 1.82 m (6-ft) NMEA 2000® cable
• N2K-T-RD - Micro-C T-connector
• Pole Mount

Learn More:

• GPS on Wikipedia
• GLONASS on Wikipedia
• Galileo on Wikipedia
• NMEA 2000 on Wikipedia

Product: B&G USA 000-11048-002 ZG100 GPS Antenna N2K Compass

Brand: B&G

Model: 000-11048-002

Shipping Weight: 1.30 lb

Shipping Height: 4.00 in

Shipping Width: 8.00 in

Shipping Length: 11.00 in
