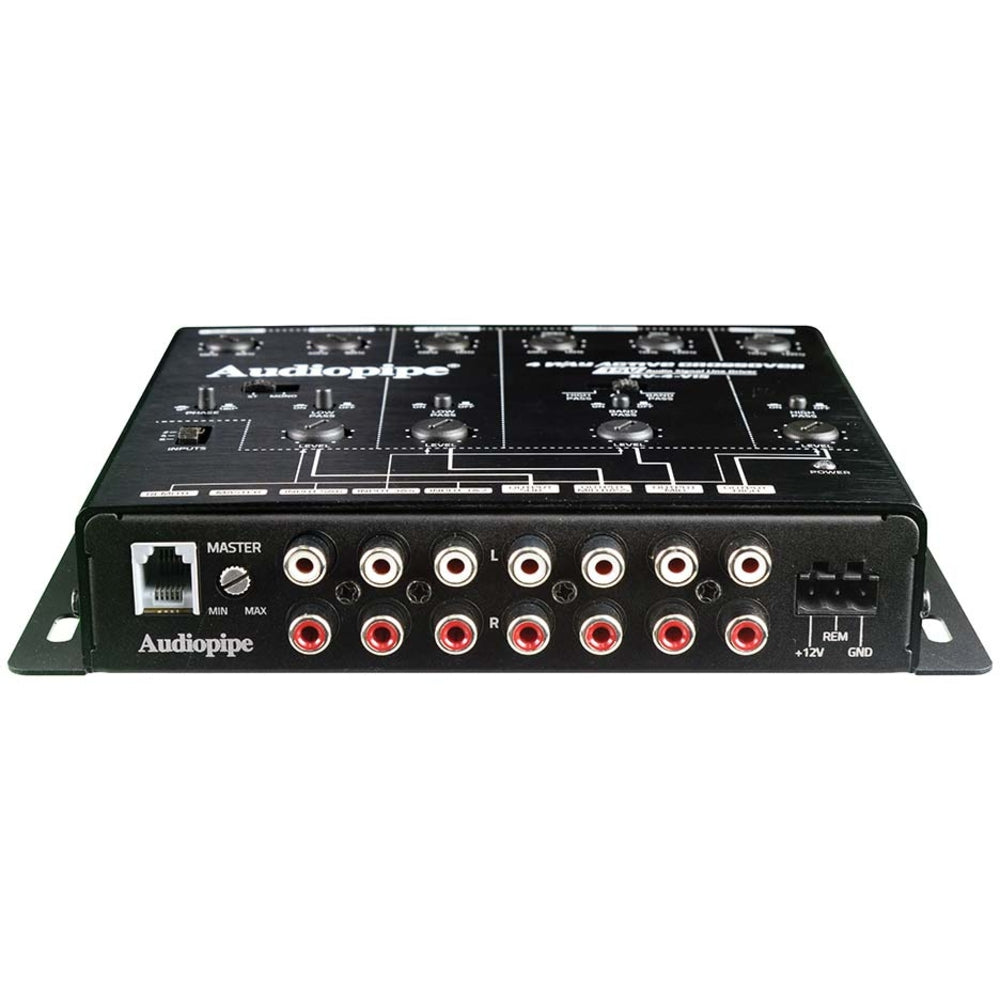

Audiopipe Xv4V15 4-Way Crossover with 6-Channel Input and 8-Channel Output

The Audiopipe Xv4V15 4-Way Crossover is a high-quality audio signal line driver designed for professional audio enthusiasts. With its 6 channels input and 8 channels output, this crossover provides exceptional sound control and customization for your audio system.

Product Features:

• 4-Way Active Crossover.
• 15 V Audio Signal Line Driver.
• 6 channels input/8 channels output.
• Master gain control.
• Independent gain control per pair of channels.
• HP/ALL/BP switchable.
• Mono/Stereo switch.
• Phase: 0 or 180 out.
• 2/4/6 channel input selector.
• 15 volts RMS line-driver.
• High/Tweeter: 1KHz - 12KHz at 12dB/octave.
• Bandpass channels: Floor: 40Hz-1KHz, Ceiling: 1KHz-12KHz at 12dB/octave.
• Midbass: 40Hz - 90Hz at 12dB/octave.
• Subwoofer: 40Hz - 90Hz at 12dB/octave.
• Subsonic filter: 10Hz - 30Hz at 18dB/octave.
• On/Off switch per pair of outputs for easy fine tuning.
• Signal to noise ratio: -105dB A-weighted.
• Total harmonic distortion: <0.04%.
• Stereo separation: >70dB.
• Continuously variable crossover frequency with multiplier switch.
• Separate inputs for front, rear, and subwoofer.
• Front and rear high pass outputs.
• Non-fade low pass output.
• Adjustable low pass gain.
• Subwoofer bass boost.

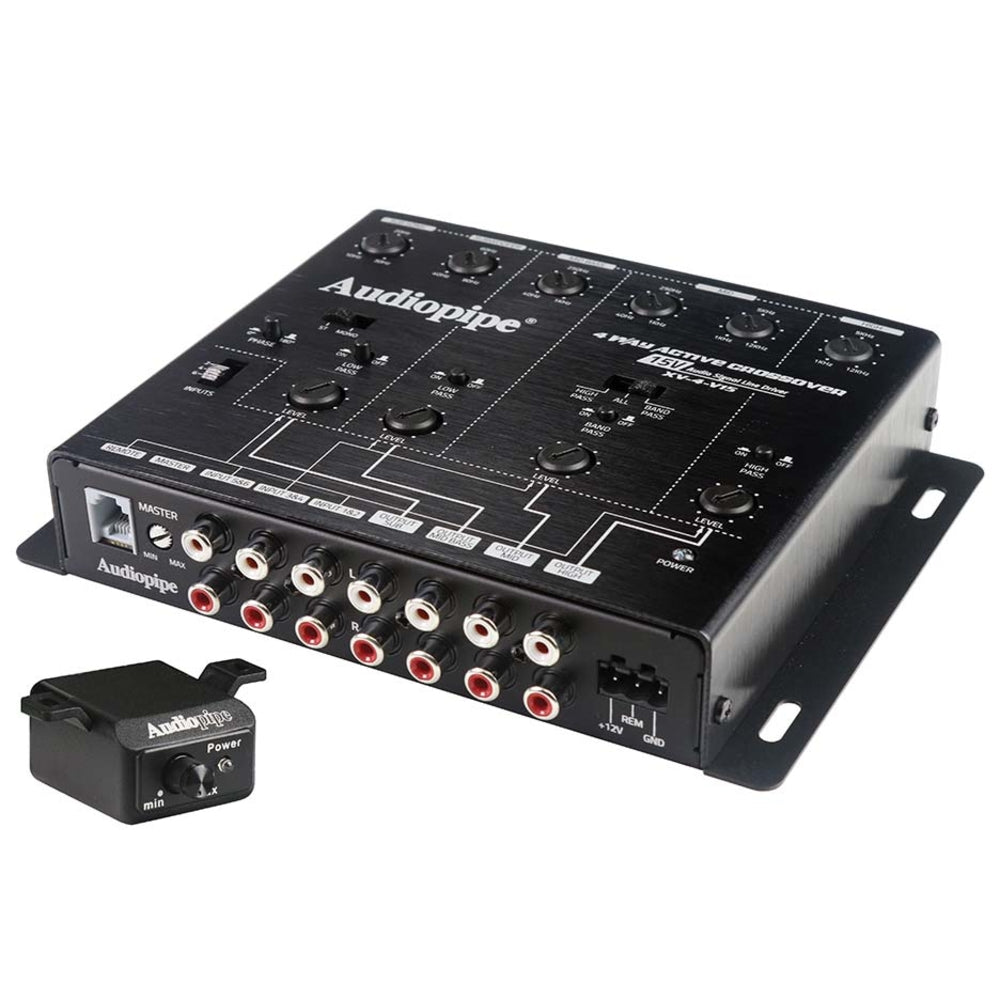

• Remote subwoofer level control.
• Ground loop isolation input circuit.
• Remote turn-on circuit.
• Power-on LED.

Specifications:

• Input Channels: 6
• Output Channels: 8
• Line Driver Voltage: 15 volts RMS
• High/Tweeter Frequency Range: 1KHz - 12KHz at 12dB/octave
• Bandpass Channels Frequency Range: Floor: 40Hz-1KHz, Ceiling: 1KHz-12KHz at 12dB/octave
• Midbass Frequency Range: 40Hz - 90Hz at 12dB/octave
• Subwoofer Frequency Range: 40Hz - 90Hz at 12dB/octave
• Subsonic Filter Frequency Range: 10Hz - 30Hz at 18dB/octave
• Signal to Noise Ratio: -105dB A-weighted
• Total Harmonic Distortion: <0.04%
• Stereo Separation: >70dB

Learn More:

• Audio Signal Processing on Wikipedia
• Crossover (electronics) on Wikipedia

Product: Audiopipemap Xv4V15 Audiopipe 4 Way Crossover 6 Ch. Input 8 Output

Brand: Audiopipe

Model: XV4V15
