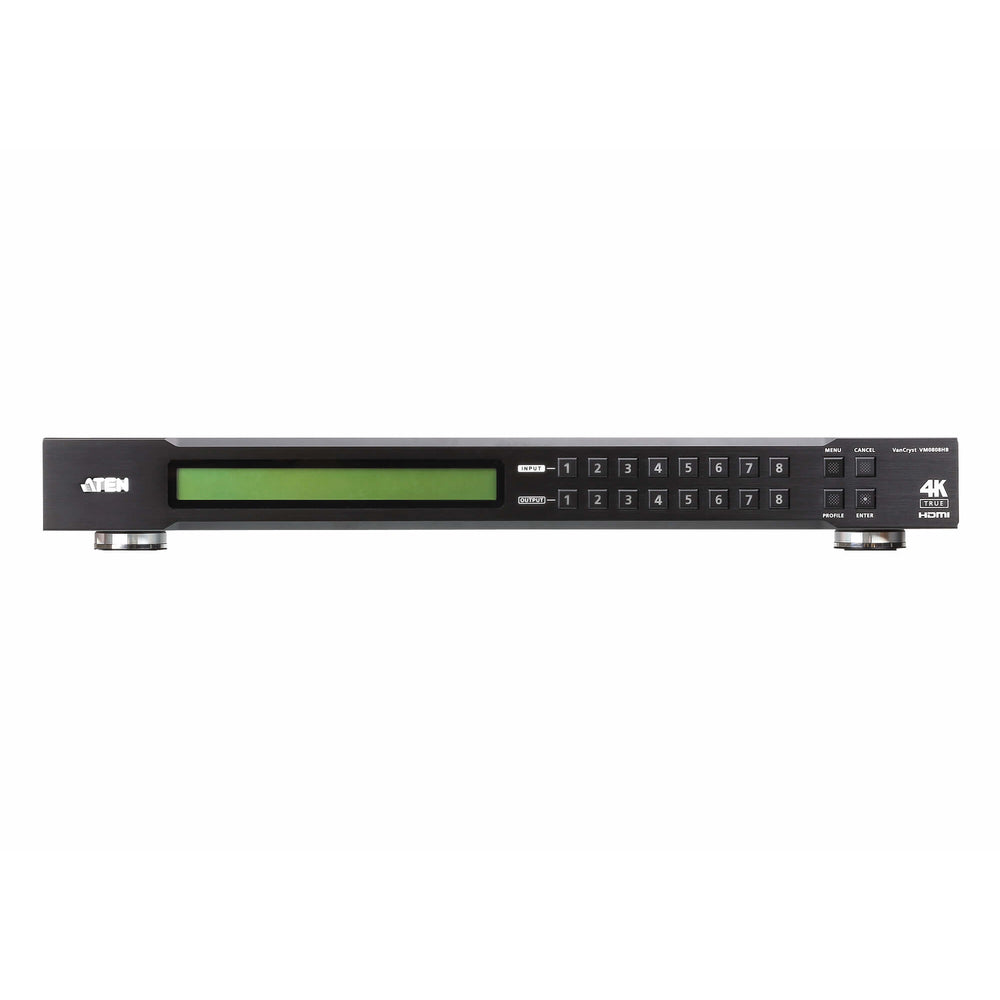

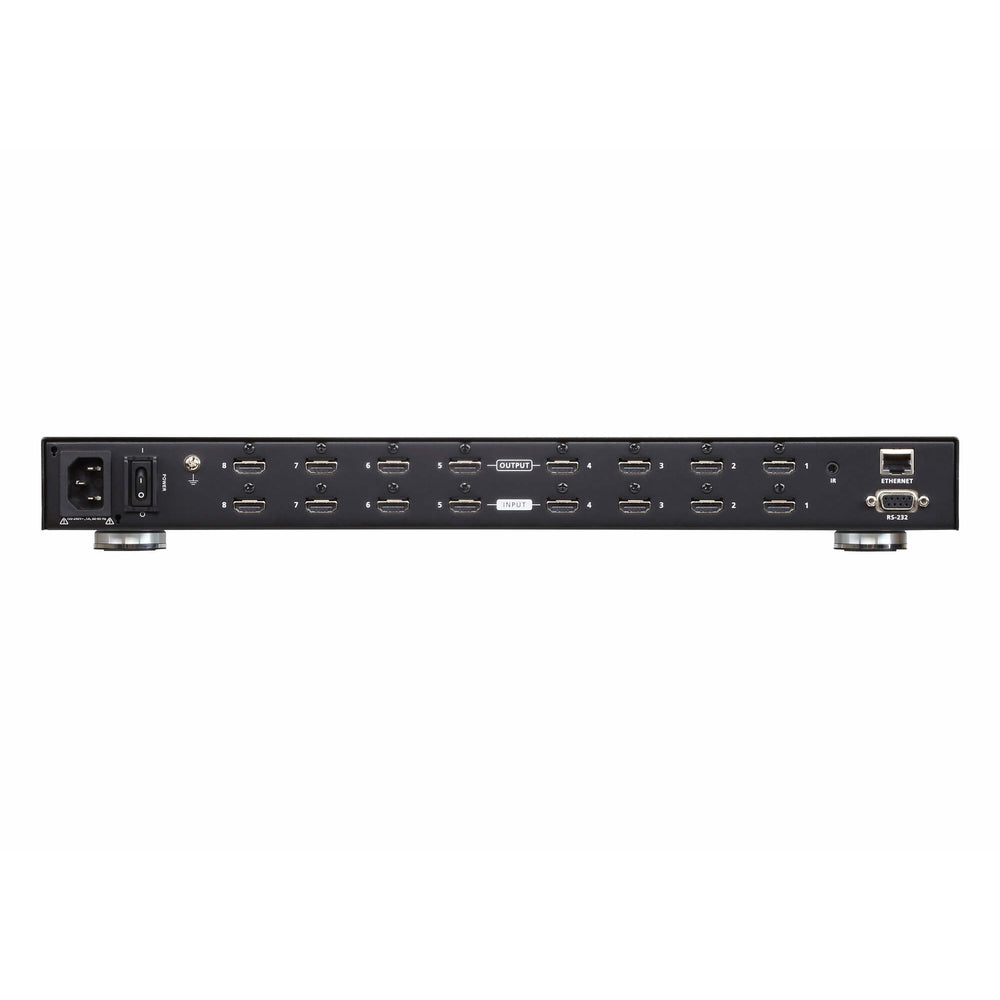

Aten Technologies VM0808HB 8x8 HDMI Matrix Switch - True 4K

ATEN's VM0808HB is a True 4K HDMI Matrix Switch series that offers an easy and affordable way to route any of 8 HDMI video sources to any of 8 HDMI displays. Featured with the superior video resolutions up to 4096 x 2160 @ 60Hz (4:4:4), the VM0808HB delivers robust signal routing and ultra-fast digital video switching, making it perfect for applications where routing of True 4K digital signals is required, such as event venues, digital classrooms, auditoriums, department stores, and more.

The intuitive GUI design of the VM0808HB allows users to flexibly configure any input to output connections, eliminating the need for frequent physical configuration changes. In addition to the built-in web GUI, the VM0808HB can be operated through front-panel pushbuttons, IR remote, RS-232 control, and Telnet via Ethernet connections, giving users the ultimate convenience while keeping the system available with performance video switching anytime.

Product Features:

• Number of HDMI outputs: 8
• HDMI in: 8
• Width: 432.4 mm
• Depth: 262.3 mm
• Height: 44 mm
• Weight: 3990 g
• User guide: Y
• Cables included: AC
• Mounting brackets included: Y
• Handheld remote control: Y
• RS-232 ports: 1
• Rack capacity: 1U
• Input impedance: 100
• Output impedance: 100
• HD type: 4K Ultra HD
• 3D: Y
• Operating temperature (T-T): 0 - 40
• Storage temperature (T-T): -20 - 60
• Operating relative humidity (H-H): 0 - 80
• AC adapter input voltage: 100-240
• AC adapter frequency: 50-60
• AC adapter input current: 1
• Maximum resolution: 4096 x 2160
• Bandwidth: 600
• RJ-45 input ports: 1
• Video port type: HDMI
• Product color: Black
• HDCP: Y
• Material: Metal
• Maximum operating distance: 15

Learn More:

• Matrix Switcher
• HDMI
• 4K Resolution

Product: Aten Technologies Vm0808Hb 8X8 True 4K Hdmi Matrix Switch

Brand: Aten Technologies

Model: VM0808HB
