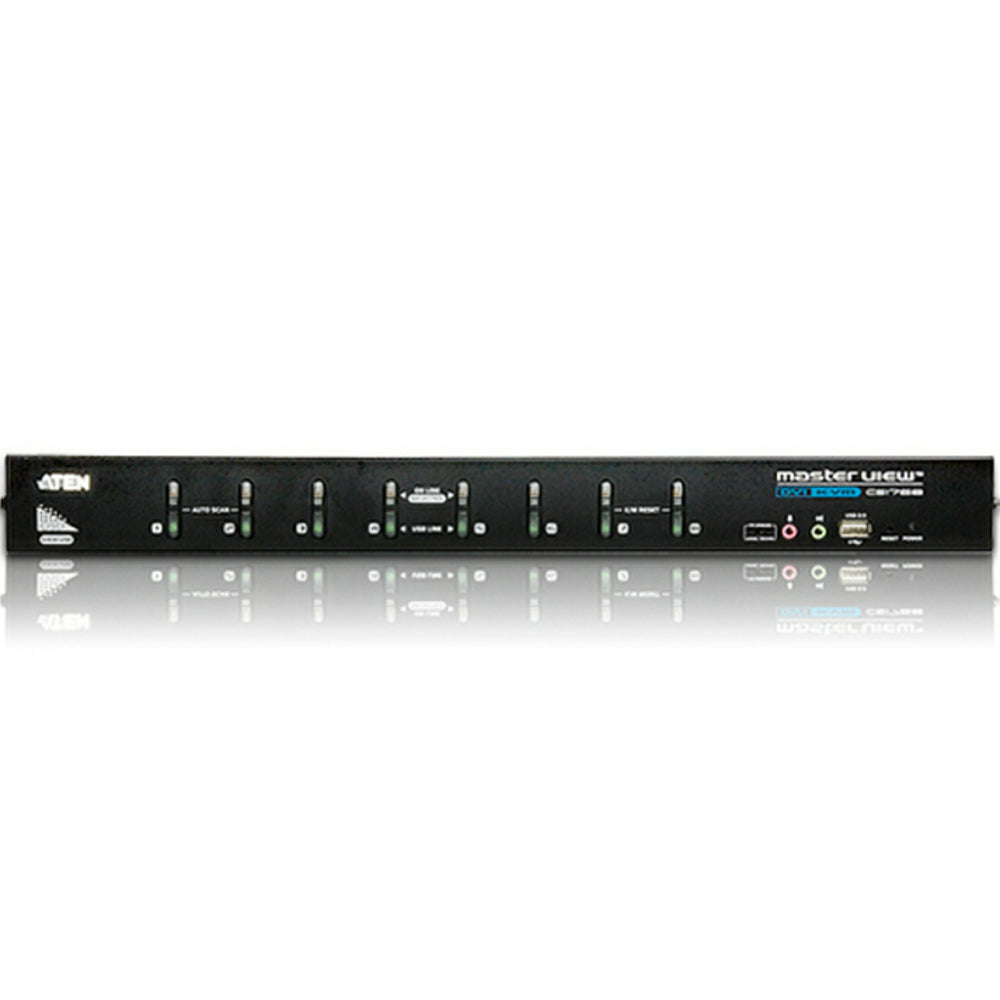

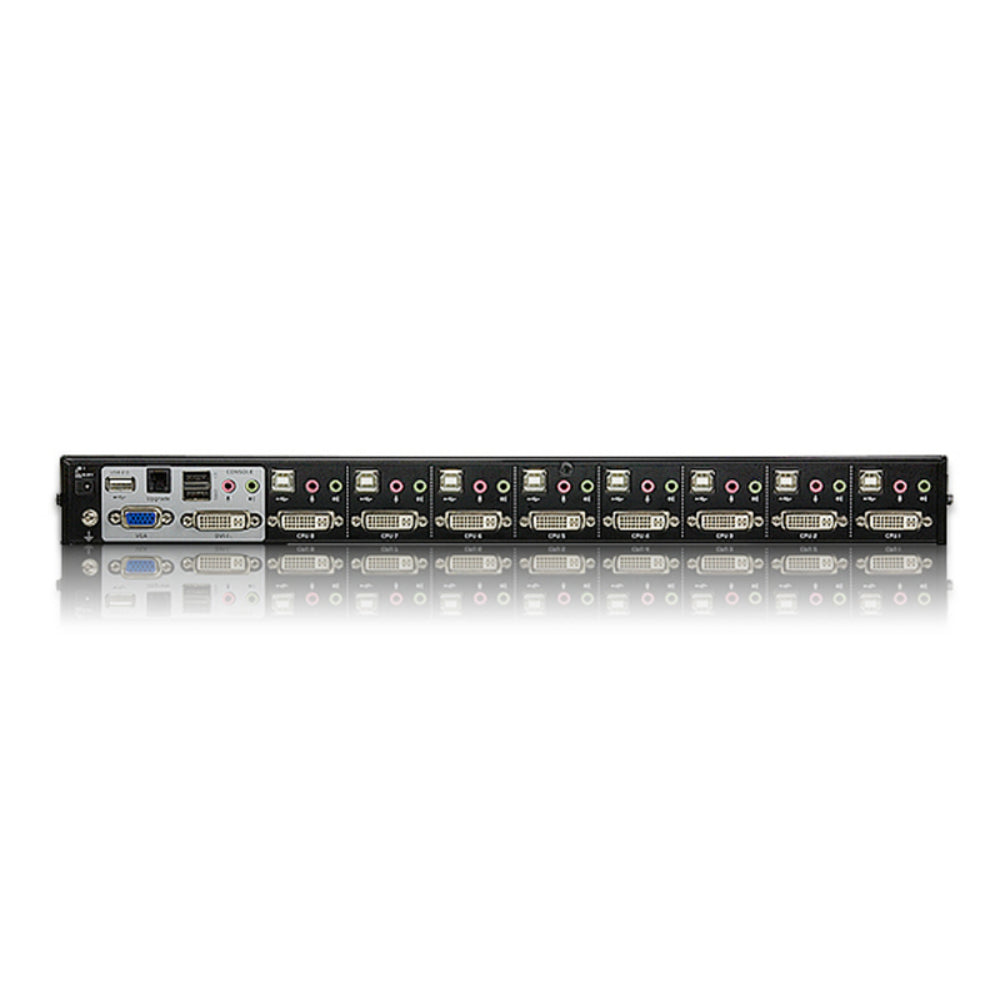

Aten Technologies Cs1768 8Port 1Console Usb Vga Dvi Kvm Switch Audio

Features

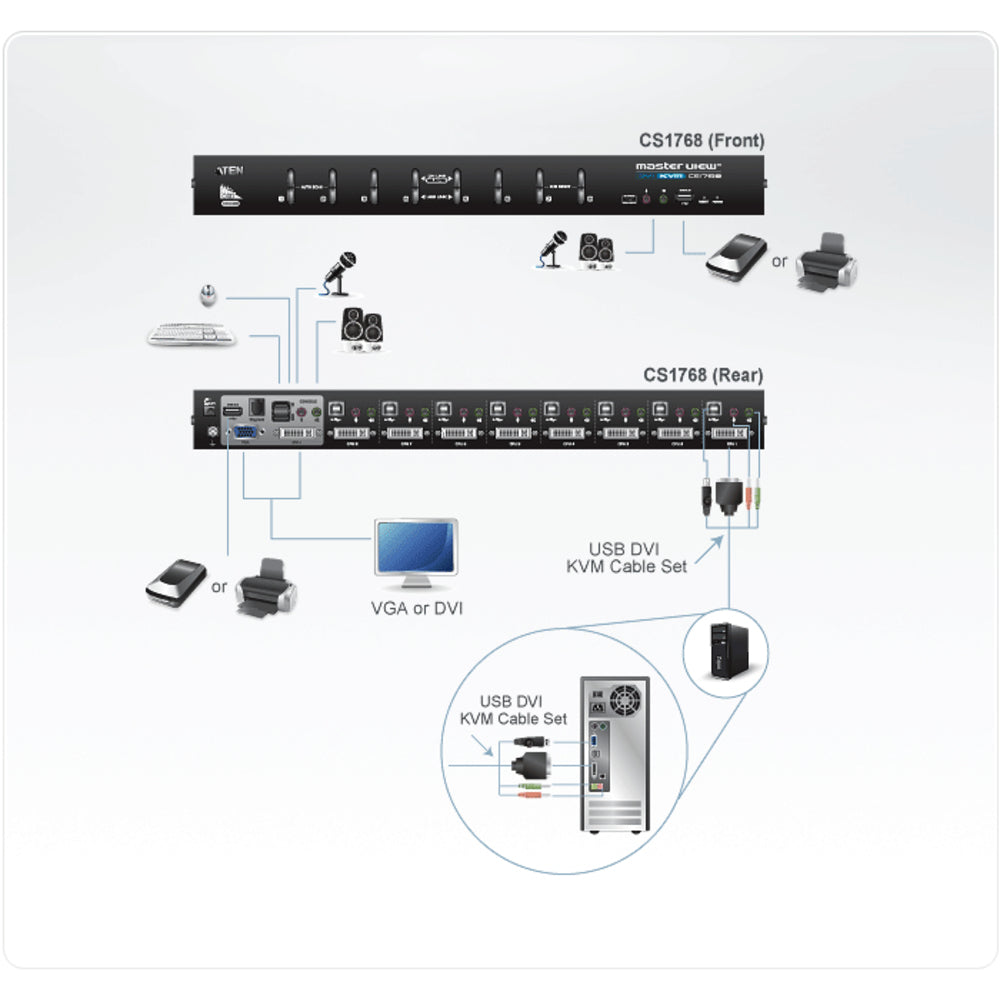

- One USB console controls eight Single Link DVI or VGA computers and two additional USB 2.0 devices
- Supports both digital (DVI) and analog (VGA) video - mixed operation Possible
- Cascadable to three levels - control up to 512 computers
- Multiview mode - stack up to four CS1768 units and display video from up to four monitors (dual view / triple view / quad view)
- Computer selection via front panel pushbuttons, hotkeys, and multilingual on-screen display (OSD)
- OSD Backup/Restore function - enables the administrator to back up the switch's configuration and user profile information
- 2-port USB 2.0 hub built in
- Fully compliant with the USB 2.0 specification
- Two-level (Administrator/User) password authorization for enhanced security protection
- Multilingual OSD supports English, German, Japanese, Traditional Chinese, Simplified Chinese, Spanish, Russian, and French
- Audio enabled - full bass response provides a rich experience for 2.1 channel surround sound systems
- Console audio ports on front panel for easy access
- Multiplatform support - Windows, Linux, Mac, Sun
- Supports widescreen resolutions
- Superior video quality - 1920 x 1200 (Single Link DVI); 2048 x 1536 (VGA); DDC2B
- Independent switching of KVM and USB focus
- DVI digital and analog monitor support - fully compliant with the DVI specifications
- HDCP compatible
- Video DynaSync - exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
- Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice Chinese, and Spanish
- Complete keyboard emulation for error-free booting
- Mac/Sun keyboard support and emulation
- Multilingual keyboard mapping - supports English (US), English (UK), French, German, Japanese, Korean, Traditional
- Auto Scan Mode for monitoring all computers
- Broadcast mode - allows you to send commands from the console to all computers to perform operations simultaneously.
- Firmware upgradable

Package Contents

- 1x CS1768 8-Port USB DVI KVM Switch with Rack Mounting Kit
- 2x 2L-7D02U USB DVI-D KVM Cable Sets
- 1x Firmware Upgrade Cable
- 1x 0AD6-1605-24EG Power Adapter
- 1x Foot Pad Set (4 pcs)
- 1x User Instructions

8-Port USB DVI KVM Switch with Audio

Features:

• Connectivity technology: Wired
• Ports quantity: 8
• Keyboard port type: USB
• Mouse port type: USB
• Video port type: DVI-I
• Number of computers controlled: 8
• Headphone outputs: 8
• Number of microphone inputs: 8
• USB 2.0 ports quantity: 10
• Weight: 2800
• Power consumption (typical): 3.76
• Certification: TW I220489, CN ZL 02824593.8, DE 202004004227.4, JP 4558319, JP 4651633, TW 203183, TW I220476, TW I285828, US 6934398, US 6957287, US 7047344, US 7269265, US 7340556, US 7472217
  RoHS
• Operating relative humidity (H-H): 0 - 80
• Operating temperature (T-T): 0 - 50
• Storage temperature (T-T): -20 - 60
• LED indicators: Y
• Maximum resolution: 2048 x 1536
• Maximum digital resolution: 1920 x 1200
• Maximum analog resolution: 2048 x 1536
• Product color: Blue
• Scan interval: 255
• DVI-I ports quantity: 8
• VGA (D-Sub) ports quantity: 1
• Housing material: Metal
• Width: 161.1
• Depth: 437.2
• Height: 44
• RoHS compliance: Y
• Cables included: KVM
• AC adapter included: Y
• Quick installation guide: Y
• Manual: Y
• Compatible operating systems: Windows, Linux, Mac, Sun

Learn More

KVM Switch Wikipedia

Product: Aten Technologies Cs1768 8Port 1Console Usb Vga Dvi Kvm Switch Audio

Brand: ATEN

Model: CS1768

Shipping Weight:

Shipping Height:

Shipping Width:

Shipping Length:
