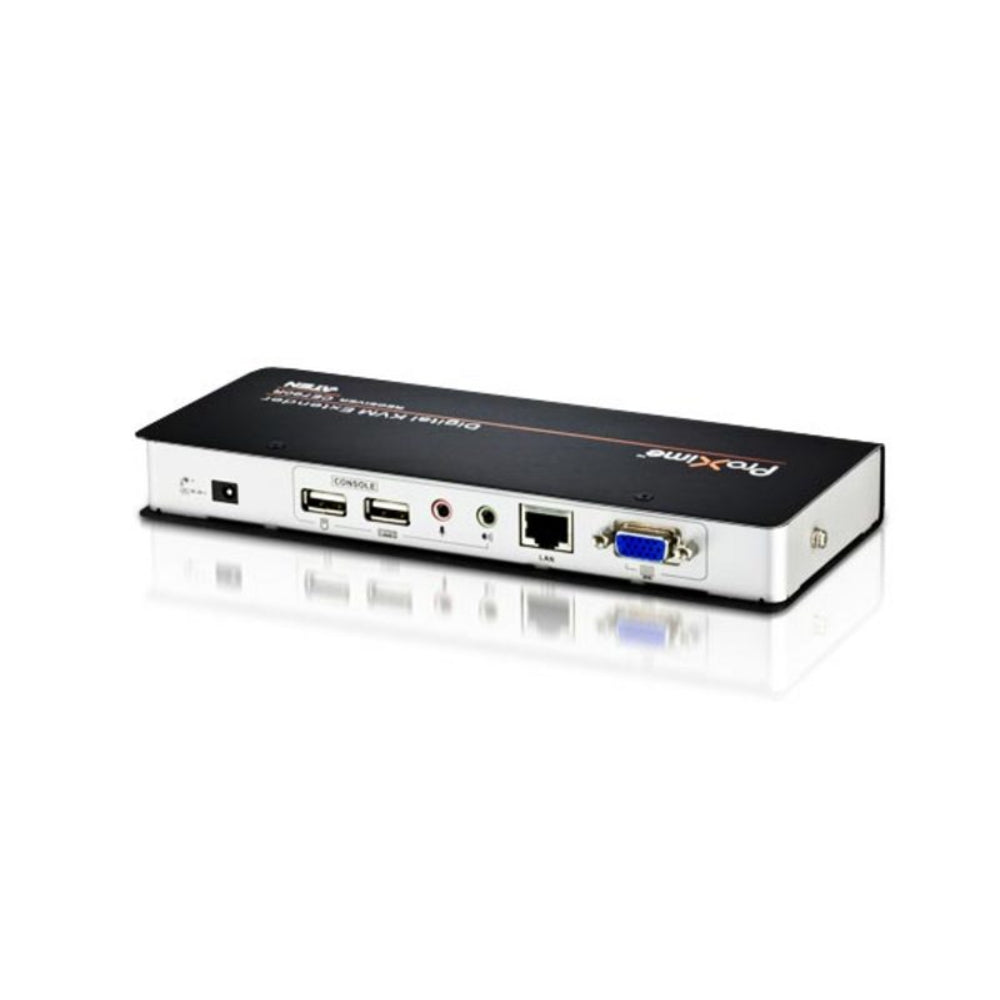

Aten CE770 USB Console Extender 1000Ft - Audio & Serial Support

The Aten CE770 USB Console Extender is a high-performance device that allows you to control your system from both the local and remote USB keyboard, monitor, and mouse consoles. With a connection distance of up to 300 meters using Cat 5e cable, this console extender offers flexibility and convenience.

Features:

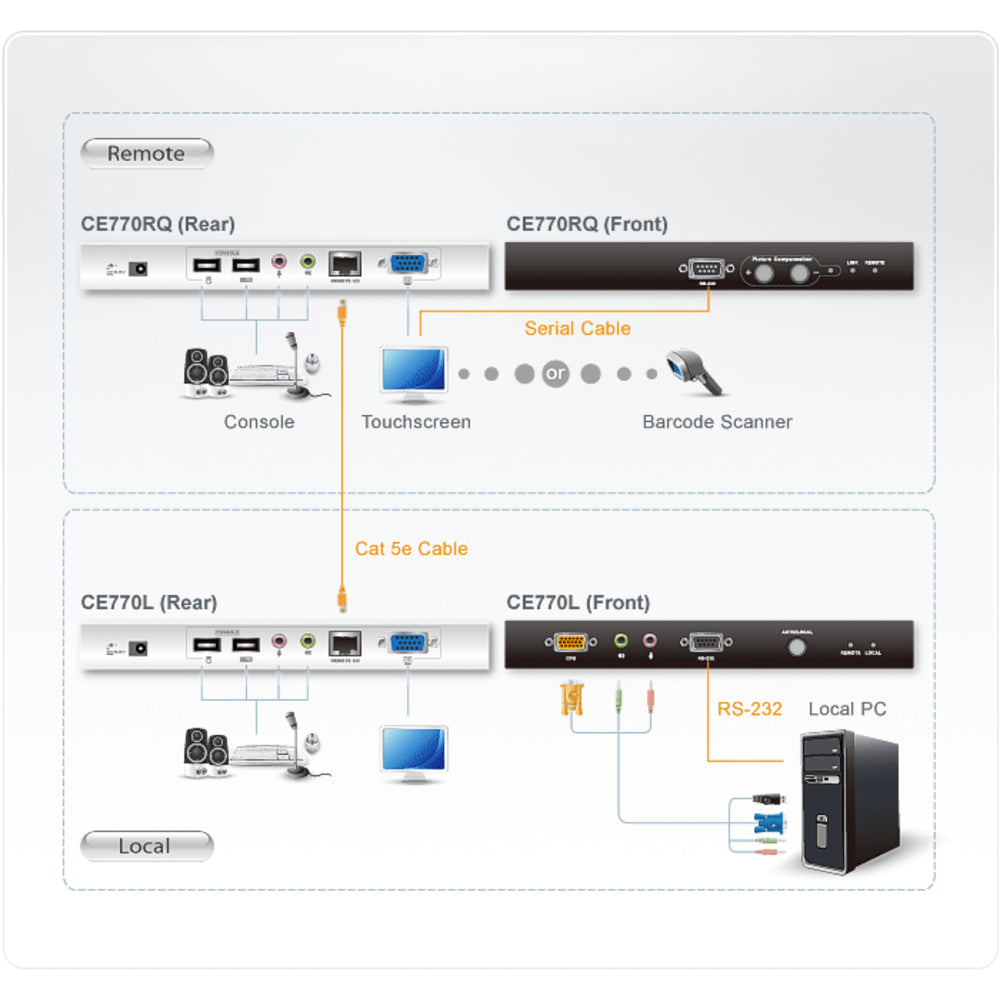

• Local and Remote Units connect at distances up to 300 m using Cat 5e cable
• Dual console operation - control your system from both the local and remote USB keyboard, monitor, and mouse consoles
• Deskew Function - automatically synchronizes the time delay of RGB signals to compensate for distance
• Built-in ASIC for greater reliability and compatibility
• Auto Signal Compensation (ASC)
• RS-232 serial ports - allow you to connect to a serial terminal, or serial devices such as touchscreens and barcode scanners
• Sun/Mac keyboard support and emulation
• Audio Enabled - supports stereo speakers and microphone
• USB overcurrent detection and prevention
• Pushbutton operating mode selection (Local Unit only) - select between Local and Auto operating modes, with the press of a single button
• Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV) and 2KV surge protection
• High resolution video - up to 1920 x 1200@60Hz (150 m); 1280 x 1024@60Hz (300 m)
• Superior Audio - no loss in audio quality at 300 m
• Supports Wide Screen formats
• Supports VGA, SVGA, SXGA (1280 x 1024), UXGA (1600 x 1200), WUXGA (1920 x 1200) and multisync monitors; local monitor supports DDC; DDC2; DDC2B
• Hot pluggable
• Rack mountable
• Easy to install - no software required - connecting cables to the devices is all it takes

Package Content:

• 1x CE770L USB KVM Extender (Local Unit)
• 1x CE770RQ USB KVM Extender (Remote Unit)
• 1x USB KVM Cable (1.8m)
• 2x Power Adapter
• 1x Rack Mount Kits
• 2x Grounding Wires
• 1x User Manual
• 1x Quick Start Guide

Specifications:

• Microphone in: Yes
• Product color: Black
• Manual: Yes
• Quick start guide: Yes
• RoHS compliance: Yes

Learn More

USB - Learn more about Universal Serial Bus on Wikipedia.

KVM Switch - Learn more about Keyboard, Video, and Mouse Switch on Wikipedia.

Serial Port - Learn more about Serial Ports on Wikipedia.

Touchscreen - Learn more about Touchscreens on Wikipedia.

Barcode Scanner - Learn more about Barcode Scanners on Wikipedia.

Product: Aten Technologies Ce770 1000Ft Usb Console Extender Audio Serial Support

Brand: Aten Technologies

Model: CE770
