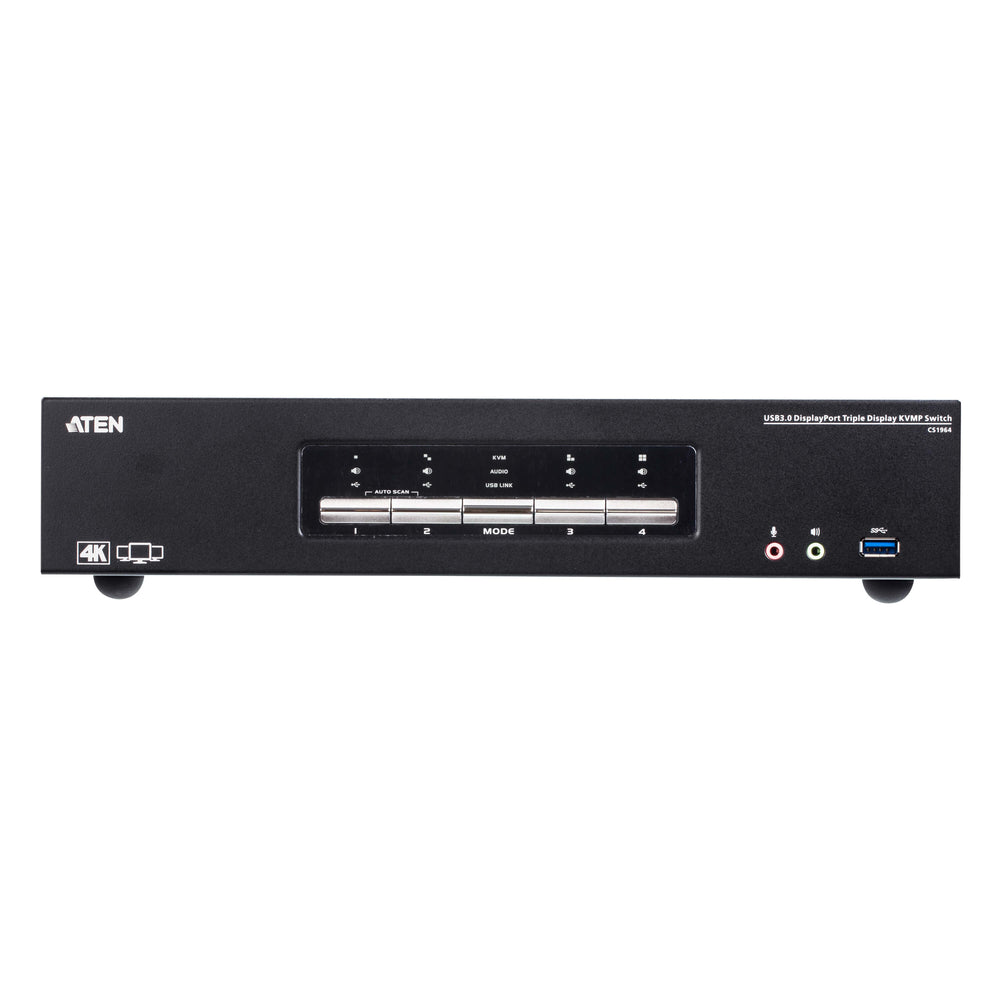

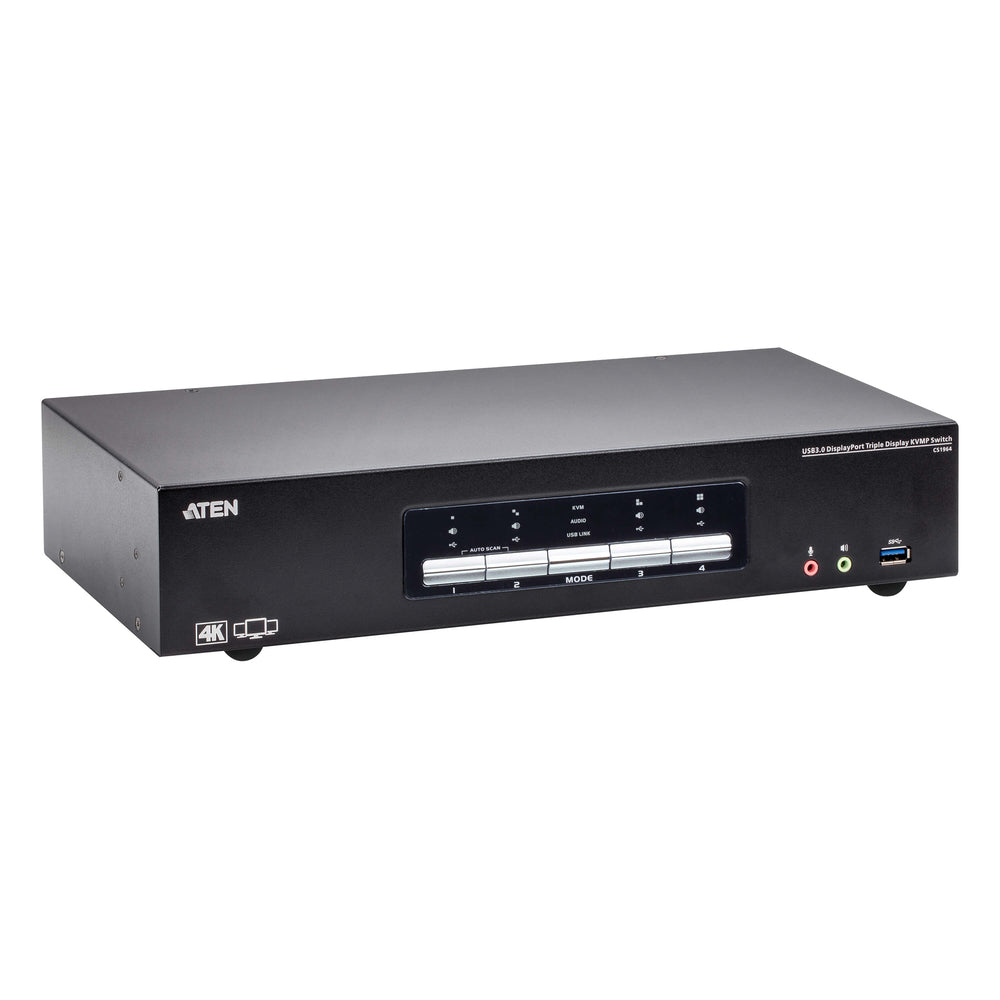

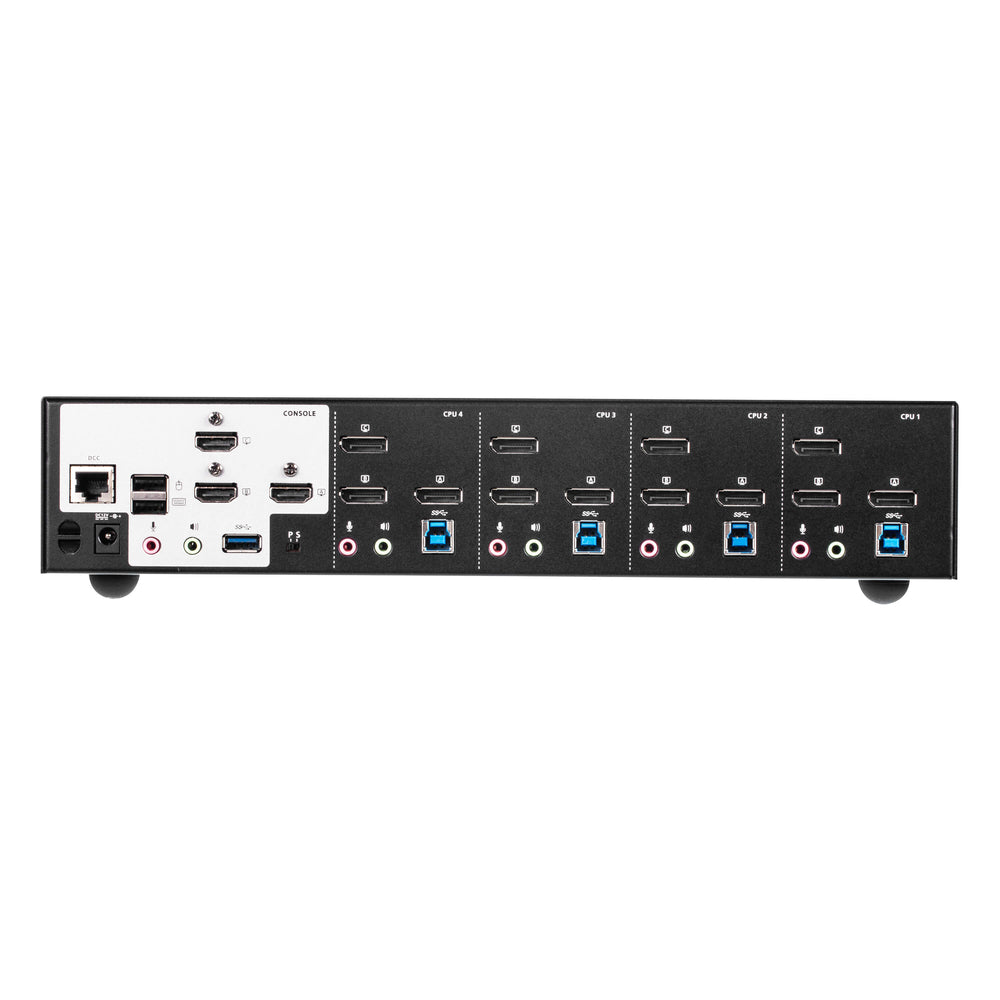

Aten CS1964 4-Port USB3.0 4K DisplayPort Triple Display KVMP Switch

The Aten CS1964 optimizes your desktop so you can effortlessly manage a triple-display multimedia workstation with instant, user-friendly access to four computers via a single USB keyboard, USB mouse, and three HDMI monitors supporting resolutions up to 4K DCI (4096 x 2160 @ 60Hz).

The CS1964 is equipped with ATEN’s patented Video DynaSync technology – which optimizes display resolution and speeds up switching between systems – as well as a built-in USB 3.1 GEN hub for data transfer rates up to 5 Gbps, allowing you to accelerate multimedia operations with ease. It also features N-key Rollover, offering support for up to 15 simultaneous keystrokes without ghosting or jamming.

Features:

• Video port type: DisplayPort
• Keyboard port type: USB
• Mouse port type: USB
• Number of computers controlled: 12
• HDMI ports quantity: 3
• DisplayPorts quantity: 12
• USB 2.0 Type-B ports quantity: 2
• USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity: 4
• Console ports: 3.5mm headphone, HDMI, USB A
• Ethernet LAN (RJ-45) ports: 1
• DC-in jack: Yes
• USB connector type: USB Type-A, USB Type-B
• Audio connections: Yes
• Maximum resolution: 4096 x 2160
• Video bandwidth: 60
• Product color: Black
• Power source: DC
• AC input voltage: 12
• Power consumption (typical): 15.49
• Scan interval: 1, 3, 4, 5, 8, 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, 70, 80, 90, 99
• Storage temperature (T-T): -20 - 60
• Operating temperature (T-T): 0 - 50
• Operating relative humidity (H-H): 0 - 80
• Housing material: Metal
• Width: 156
• Depth: 335
• Height: 655
• Weight: 1930

Learn More

For more information about KVM switches, please visit the KVM switch Wikipedia page.

For more information about DisplayPort, please visit the DisplayPort Wikipedia page.

For more information about USB, please visit the USB Wikipedia page.

Product: Aten Cs1964 4-Port Usb3.0 4K Displayport Triple Display Kvmp Switch

Brand: Aten Technologies

Model: CS1964
