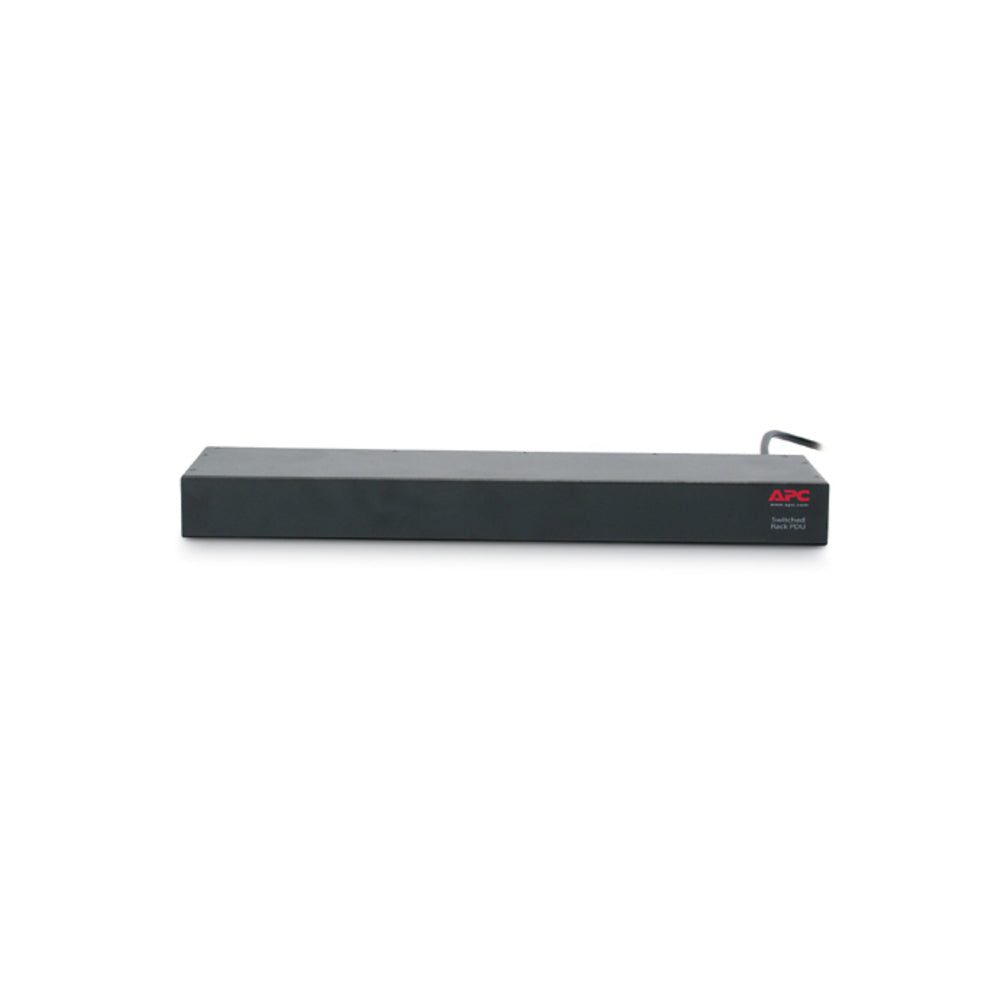

APC Schneider Electric IT USA AP7921B Rack PDU Switched 1U 16A 208/230V 8 C13

The APC Schneider Electric IT USA AP7921B Rack PDU Switched is a reliable and efficient power distribution unit designed to provide reliable power management for your rack-mounted equipment. With 8 AC outlets, this 1U rack PDU is perfect for data centers, server rooms, and other IT environments.

Features:

• PDU types: Metered, Switched
• Rack capacity: 0U/1U
• Mounting: Horizontal/Vertical
• Product color: Black
• Nominal input voltage: 200-230V
• AC input frequency: 50 - 60 Hz
• Nominal output voltage: 208-230V
• Maximum current: 16A
• Cable length: 2.5m
• Load capacity: 3680W
• Maximum input current per phase: 16A
• AC outlets quantity: 8
• AC outlet types: C13 coupler
• Input connection type: IEC-320 C20
• Dimensions (WxDxH): 445 x 108 x 44 mm
• Weight: 2270g
• Package weight: 3450g
• Package dimensions (WxDxH): 470 x 343 x 70 mm
• Operating temperature (T-T): 0 - 45&degC
• Operating relative humidity (H-H): 0 - 95%
• Storage temperature (T-T): -25 - 65&degC
• Storage relative humidity (H-H): 0 - 95%
• Non-operating altitude: 1 - 15000m
• Operating altitude: 0 - 3000m
• Certification: cUL Listed, CE, CSA, EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, GOST, IRAM, MIC, UL 60950, UL Listed, VDE, VCCI, REACH
• RoHS compliance: Yes
• Outlet control: Lock-out, Recycle, Turn off, Turn on
• Monitoring: Local Current Monitoring Display

Availability

The APC AP7921B Rack PDU integrates with StruxureWare Data Center Expert, an IT-ready, scalable access monitoring system. This system collects, organizes, and distributes critical alerts, surveillance video, and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network. It is also flash upgradeable, allowing for easy firmware upgrades via network download for future product enhancements without the need to replace already installed products in the field.

Agility

The APC AP7921B Rack PDU offers a wide range of input and output connections, including a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. It supports a single input power source, allowing you to conveniently power multiple pieces of equipment with one branch whip. The rack-mountable design provides easy installation and puts power where it is needed most - in the racks near the equipment.

Learn More

• Power Distribution Unit on Wikipedia
• StruxureWare Data Center Expert on Wikipedia

Product: Apc Schneider Electric It Usa Ap7921B Rack Pdu Switched 1U 16A 208/230V 8 C13

Brand: APC Schneider Electric

Model: AP7921B

Shipping Weight:

Shipping Height:

Shipping Width:

Shipping Length:
