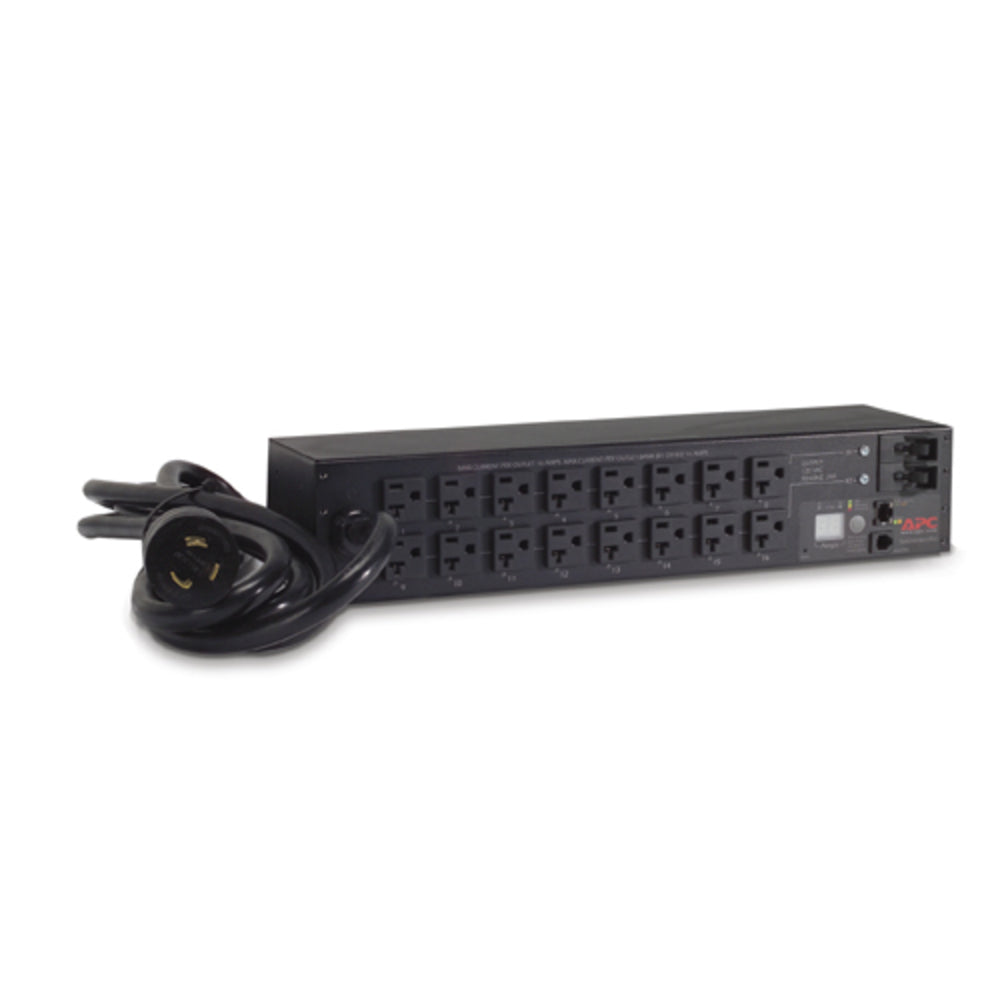

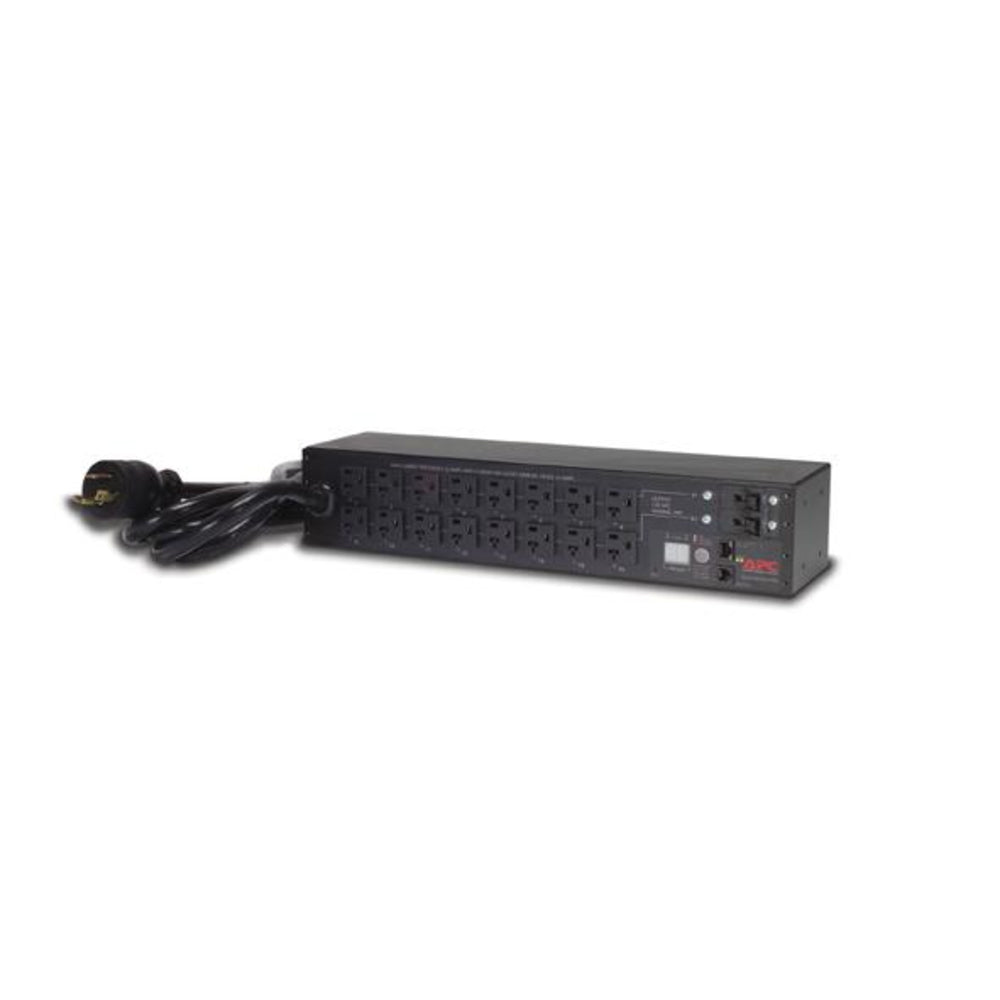

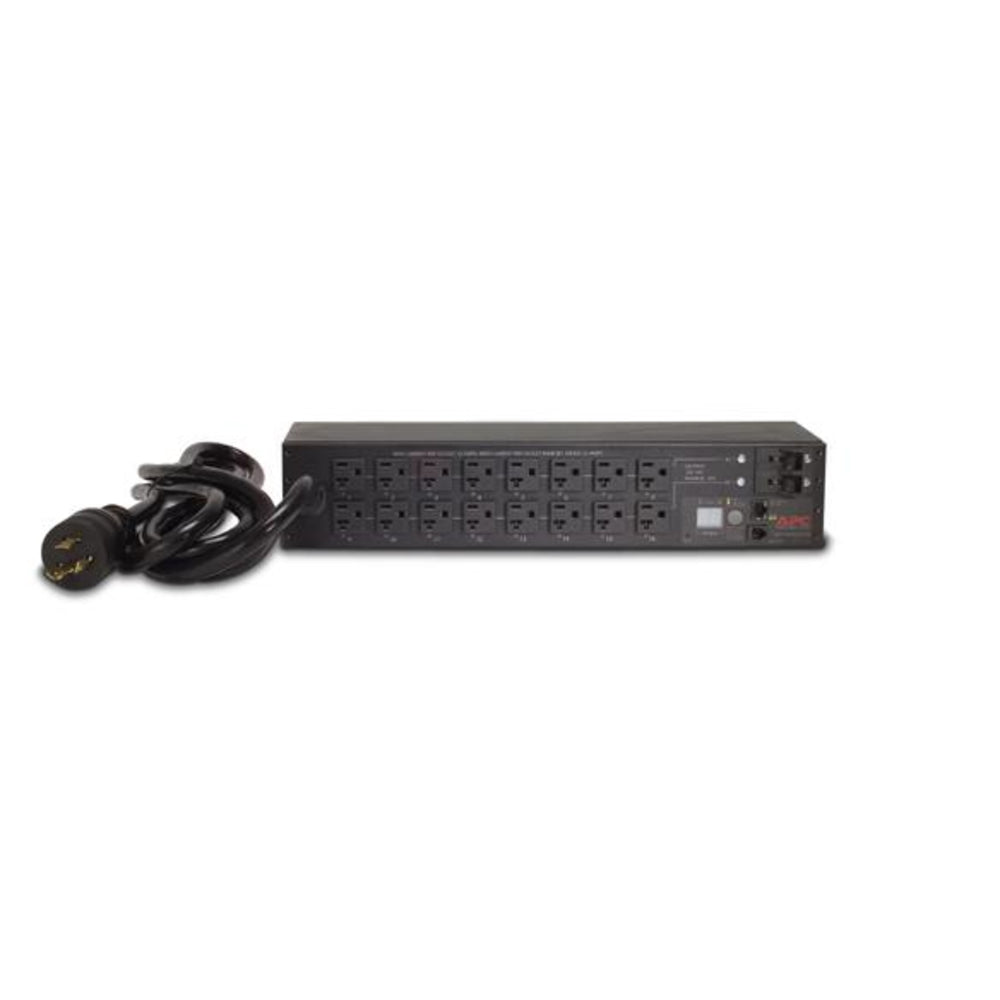

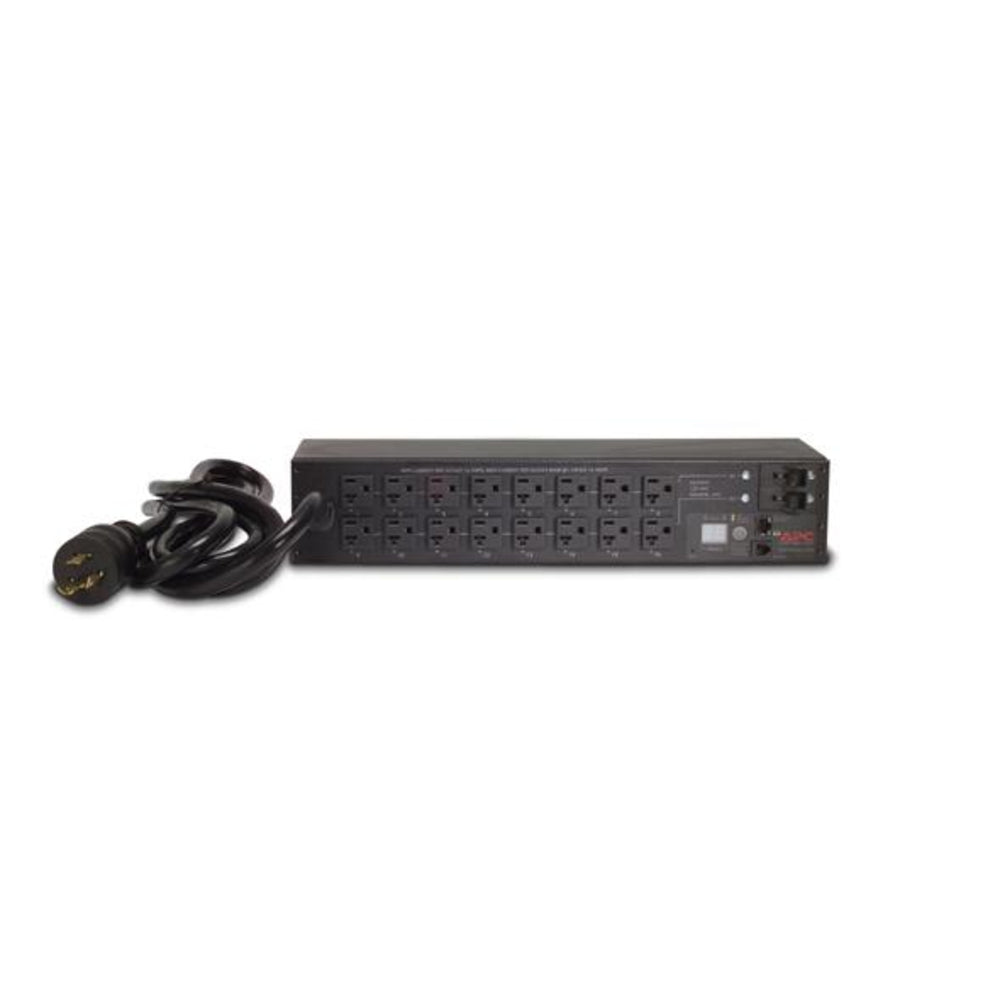

APC By Schneider Electric AP7902B Rack PDU Switched 2U 30A 120V 16 5-20

The APC AP7902B is a switched rack power distribution unit (PDU) that provides reliable power distribution and control for rack-mount equipment. With a height of 2U, it offers 16 AC outlets and is designed for use in server racks and data centers.

Features:

• Switched Rack PDU
• 2U rack-mountable design
• 30A maximum total current draw per phase
• 120V nominal input voltage
• 16 NEMA 5-20R output connections
• Resettable circuit breakers for quick recovery from overload events
• Single input power source with wide range of input and output connections
• Rack-mountable with horizontal, vertical, and toolless-mount varieties
• Local current monitoring display to avoid overloaded circuits
• Alarm thresholds to define and avoid overloaded circuits
• Full-featured network management interfaces for remote management
• Power delays for controlled sequencing of power-on/off for each outlet
• Remote individual outlet control for power management and equipment recycling
• Flash upgradeable firmware for future product enhancements
• Load indicator LED to indicate overload and warning conditions
• Integrates with StruxureWare Data Center Expert for comprehensive monitoring

Specifications:

• Nominal Output Voltage: 120V
• Maximum Total Current Draw per Phase: 30A
• Output Connections: 16 x NEMA 5-20R
• Nominal Input Voltage: 100-120V
• AC Input Frequency: 50 - 60Hz
• AC Outlets Quantity: 16
• Input Connection Type: NEMA L5-30P
• Cable Length: 3.05 ft
• Rack Capacity: 2U
• Load Capacity: 2880VA
• Maximum Current: 30A
• Dimensions (WxDxH): 445 x 114 x 89 mm
• Product Color: Black
• Weight: 4500 g
• Package Weight: 6550 g
• Package Dimensions (WxDxH): 508 x 368 x 140 mm
• Operating Temperature (T-T): 0 - 45&degC
• Operating Relative Humidity (H-H): 0 - 95%
• Operating Altitude: 0 - 3000 m
• Storage Temperature (T-T): -25 - 65&degC
• Storage Relative Humidity (H-H): 0 - 95%
• RoHS Compliance: Yes
• Certification: cUL Listed, CSA, FCC Part 15 Class A, ICES-003, Industry Canada, UL 60950, UL Listed
