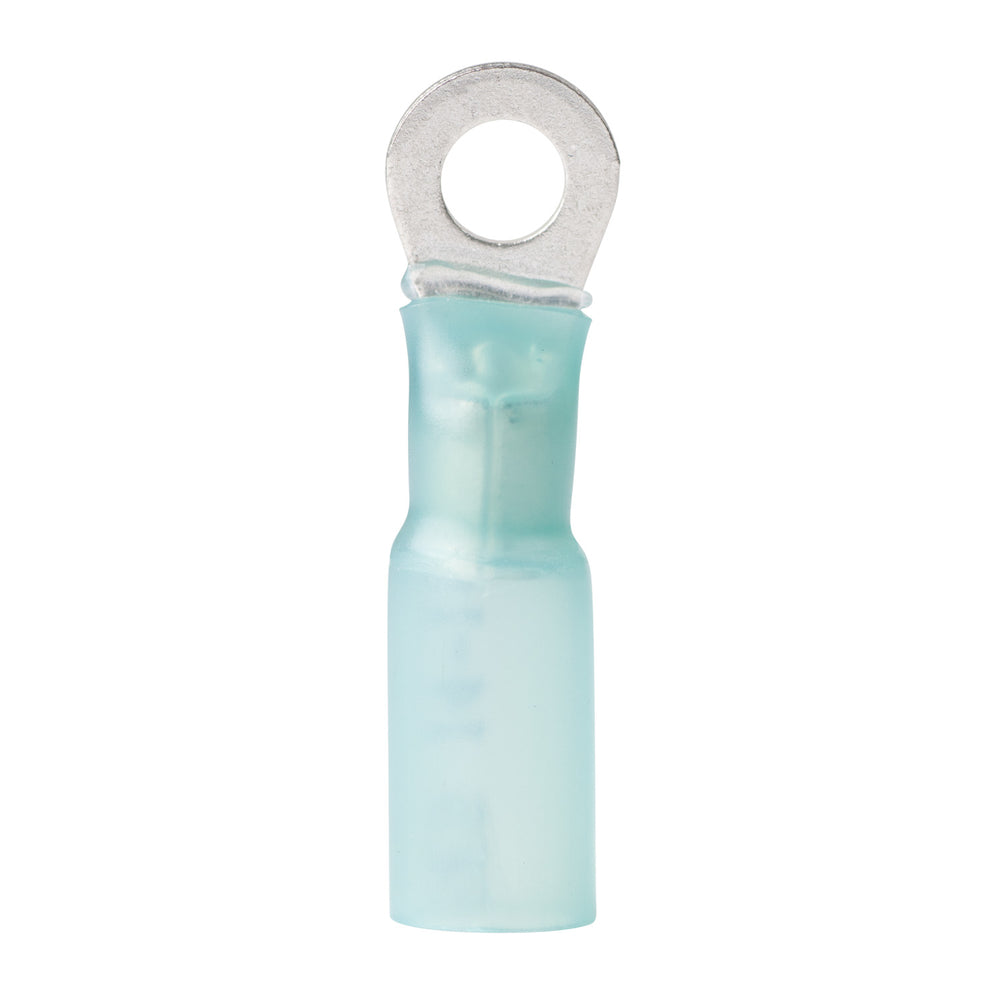

Ancor 311299 Heat Shrink Ring Terminal 100-Pack - 16-14 Gauge, Size 8

The Ancor 311299 Heat Shrink Ring Terminal 100-Pack is a high-quality electrical connector designed for various applications. This pack includes 100 ring terminals, each suitable for use with 16-14 gauge wires and featuring a #8 screw size. With its exceptional features and superior construction, this product ensures reliable and secure electrical connections.

Product Features:

• Cross Linked polyolefin tubing: The tubing used in this ring terminal is made of cross-linked polyolefin, which is significantly stronger than PVC tubing. It offers excellent durability and does not burn like PVC.
• Heat activated adhesive lining: The ring terminal is equipped with a heat-activated adhesive lining. This lining provides an impervious seal to saltwater, oil, acids, and sunlight, ensuring long-lasting performance. It also acts as a strain relief, protecting the connection from damage.
• Nylon insulator: The preferred choice of experts, the nylon insulator provides exceptional resistance to sunlight, water, oil, chemicals, vibration, and cut-through damage. It ensures reliable performance even in harsh environments.
• UL Listed and CSA Recognized: This product meets the safety standards and has been UL Listed and CSA Recognized, ensuring its quality and compliance with industry standards.
• Highest shrink ratio: The heat shrink tubing included in this ring terminal has the highest shrink ratio, shrinking to 1/3 of its original size. This ensures a tight and secure fit around the wire.
• Shrinks at 257&degF/125&degC: The heat shrink tubing shrinks when heated to a temperature of 257&degF/125&degC. This allows for easy installation and creates a water-tight seal.
• Operating temperature range: With an operating temperature range of 40&degC to 110&degC, this ring terminal can withstand a wide range of temperature variations, ensuring reliable performance in various conditions.
• Heat activated adhesive: The heat shrink connectors feature a heat-activated adhesive built into the sleeve of the heat shrink tubing. This adhesive forms a water-tight seal and provides excellent vibration and strain relief.
• Tinned for corrosion resistance: The ring terminal is tinned to offer corrosion resistance. This ensures a longer lifespan and maintains optimal conductivity.
• Pure copper construction: Made from pure copper, the ring terminal provides maximum current flow, reducing power loss and ensuring efficient electrical connections.
• Brazed seam for maximum strength: The ring terminal features a brazed seam, providing maximum strength and durability. It can withstand rigorous use and offers long-lasting performance.
• Wire Range: 16-14
• mm: 1-2

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to .

Learn More

• Heat-Shrink Tubing
• Electrical Connector
• Electrical Insulation

Product: Ancor 311299 16-14 Gauge 8 Heat Shrink Ring Terminal 100-Pack

Brand: Ancor

Model: 311299

Shipping Weight: 0.30 lb

Shipping Height: 2.00 in

Shipping Width: 3.00 in

Shipping Length: 4.00 in
