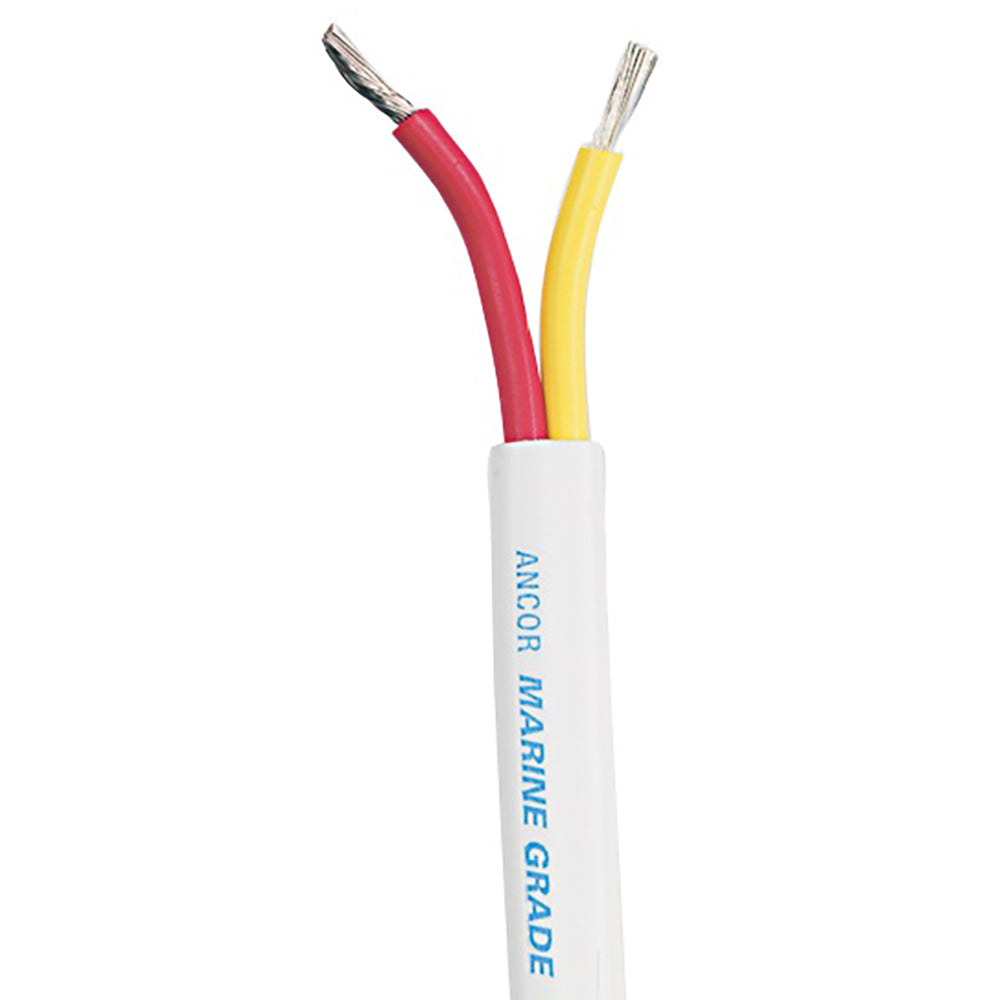

Ancor 123910 Safety Duplex Cable - 8/2 AWG Red/Yellow - 100' Flat

The Ancor safety duplex cable is an essential item for any marine or automotive electrical system. This cable features red and yellow Marine Grade primary conductors that are correctly color-coded to ABYC standards. The conductors are encased in a white common jacket that is made for easy removal while providing the best abrasion resistance available.

These cables exceed UL 1426 standards and are made from the highest quality ultra flexible (Type 3/Class K) tinned copper stranding that provides maximum protection against corrosion and electrolysis while resisting fatigue due to vibration and flexing. The premium vinyl insulation is rated at 600V, 105°C dry and 75°C wet, stays flexible even in extreme cold (-40°F/C) and resists salt water, battery acid, oil, gasoline, heat, abrasion and ultra-violet radiation.

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to .

Product Features:

• Red and yellow Marine Grade primary conductors
• White common jacket for easy removal and abrasion resistance
• Exceeds UL 1426 standards
• Ultra flexible (Type 3/Class K) tinned copper stranding for maximum protection against corrosion and electrolysis
• Premium vinyl insulation rated at 600V, 105°C dry and 75°C wet
• Flexible even in extreme cold (-40°F/C)
• Resists salt water, battery acid, oil, gasoline, heat, abrasion and ultra-violet radiation

Specifications:

• Cable Type: Safety Duplex Cable
• Wire Gauge: 8/2 AWG
• Color: Red/Yellow
• Length: 100' Flat
• Material: Tinned Copper Stranding
• Insulation Material: Premium Vinyl
• Rated Voltage: 600V
• Temperature Rating: 105°C dry, 75°C wet

Learn More:

• Marine Electrical Systems
• Electrical Wiring
• Cable Management

Product: Ancor 123910 Safety Duplex Cable 8/2 Awg Red/Yellow Flat 100'

Brand: Ancor

Model: 123910

Shipping Weight: 23.05 lb

Shipping Height: 11.00 in

Shipping Width: 11.00 in

Shipping Length: 11.00 in
