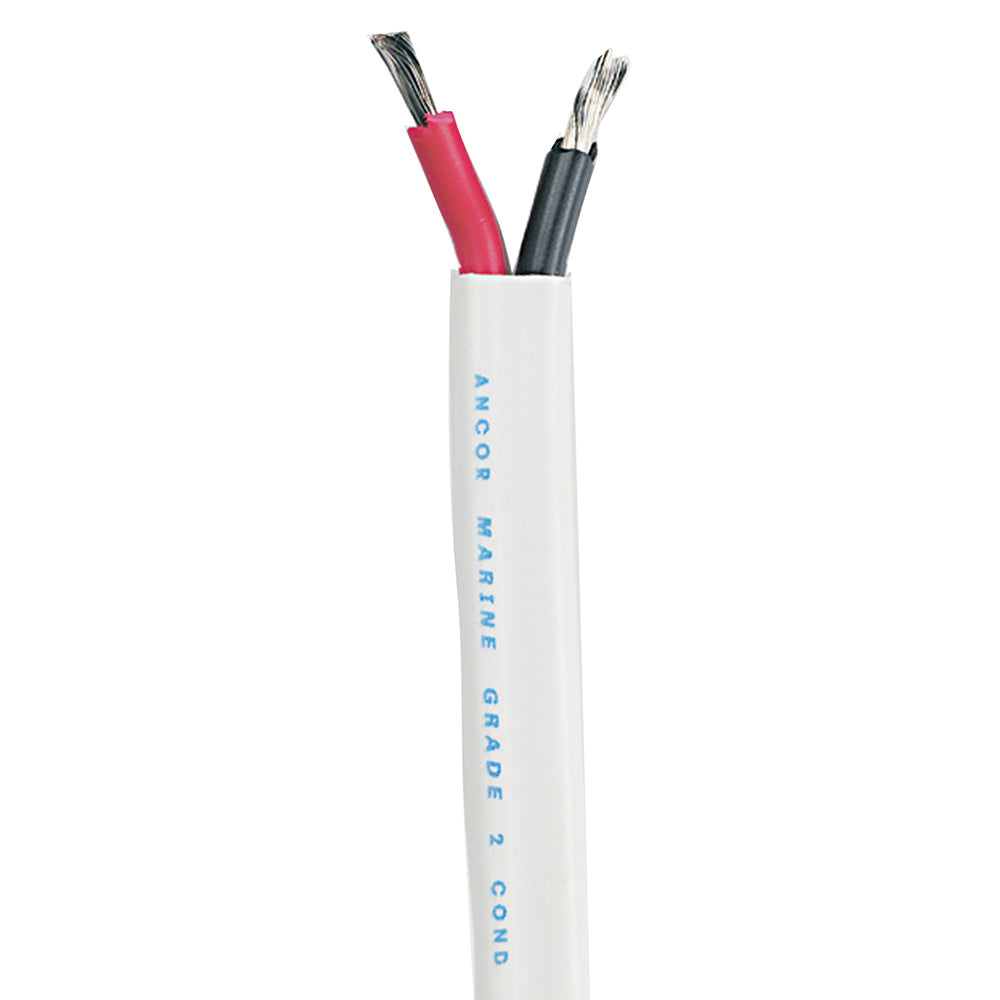

Ancor 120925 8/2 AWG Duplex Flat Cable - 250ft Red/Black - 2x8mmý Standard

Ancor 120925 8/2 AWG Duplex Flat Cable is a high-quality marine-grade wire product that offers exceptional durability and longevity. It surpasses UL 1426, ABYC, and US Coast Guard Charter boat (CFR Title 46) standards, ensuring reliable performance in various marine applications.

The cable features a flat design and consists of two conductors, each with a gauge size of 8/2 AWG (American Wire Gauge). The red and black color coding allows for easy identification and proper polarity connections.

Constructed with premium vinyl insulation, this cable is rated at 600 Volts, with a temperature rating of 105&degC in dry conditions and 75&degC in wet conditions. It remains flexible even in extreme cold temperatures as low as -40&degF/C. The insulation is resistant to saltwater, battery acid, oil, gasoline, heat, abrasion, and UV radiation, ensuring reliable performance in harsh marine environments.

The cable's tinned copper stranding is of the highest quality, featuring ultra-flexible (Type 3) construction. This provides excellent protection against corrosion and electrolysis, while also resisting fatigue caused by vibration and flexing.

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to .

Product Features:

• Marine-grade wire product designed for longevity and durability
• Exceeds UL 1426, ABYC, and US Coast Guard Charter boat (CFR Title 46) standards
• Premium vinyl insulation with a 600 Volt rating
• Temperature rated at 105&degC in dry conditions and 75&degC in wet conditions
• Remains flexible even in extreme cold (-40&degF/C)
• Resistant to saltwater, battery acid, oil, gasoline, heat, abrasion, and UV radiation
• Highest quality ultra-flexible (Type 3) tinned copper stranding
• Provides maximum protection against corrosion and electrolysis
• Resists fatigue due to vibration and flexing
• Red and black color coding for easy identification and polarity connections

Specifications:

• Cable Type: Duplex Flat
• Gauge Size: 8/2 AWG (American Wire Gauge)
• Conductor Material: Tinned Copper
• Insulation Material: Premium Vinyl
• Voltage Rating: 600 Volts
• Temperature Rating: 105&degC (dry), 75&degC (wet)
• Color: Red/Black
• Length: 250 feet

Learn More:

For more information about duplex cables, visit the Cable page on Wikipedia.

To learn about marine-grade wire products, please refer to the Marine Electrical Systems article on Wikipedia.

Product: Ancor 120925 Standard Duplex Cable Flat 8/2 Awg 2 X 8Mm² Red/Black 250'

Brand: Ancor

Model: 120925

Shipping Weight: 54.40 lb

Shipping Height: 11.00 in

Shipping Width: 11.00 in

Shipping Length: 19.00 in
