Airmar DT812PV 235kHz Thru Hull 12&deg Tilt Plastic Smart Sensor N2

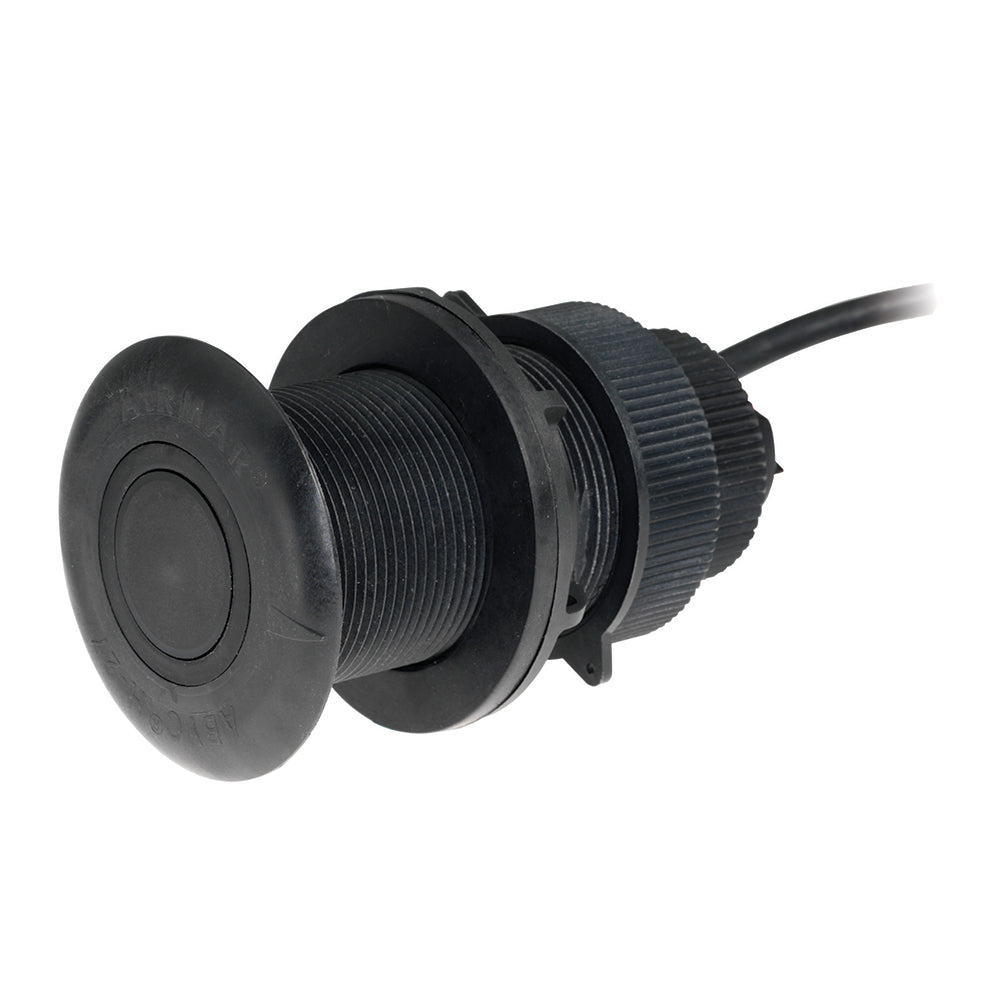

Airmar DT812PV-235-N2 is a low-profile, retractable, thru-hull smart sensor designed for power and sailboat applications. This plastic smart sensor combines Airmar's proven Tilted Element™ and broadband technologies to provide accurate depth and temperature data. It operates at a frequency of 235 kHz and can run simultaneously with other Airmar 50/200 kHz transducers on-board without any interference. The DT812PV-235-N2 is sold with a 6M cable and is compatible with NMEA 2000 displays.

Product Features:

• Broadband ceramic available with 0&deg, 12&deg, and 20&deg tilt options
• Enhanced depth performance
• Maximum Depth Range: 180M (594')
• Minimum range: 0.5M (1.6')
• Urethane face provides better sensitivity
• Excellent high-speed performance
• Fixed 12&deg tilt for 8&deg to 15&deg deadrise
• NMEA 2000 output
• 100 W RMS power
• Frequency: 235 kHz
• Cone: 12&deg
• All models have depth and temperature
• 235 kHz eliminates interference with fishfinders
• Retractable insert provides ease of serviceability
• Usable Shaft Length: 57mm (2.25")
• 6M (19.8") NMEA 2000 devicenet cable and connector
• 51mm (2") housing
• Blanking plug included
• Accommodates maximum hull thicknesses: 54 mm (2 1/8")
• Accommodates minimum hull thicknesses: 6.3 mm (0.25")

Specifications:

• Product Title: Airmar DT812PV 235kHz Thru Hull 12&deg Tilt Plastic Smart Sensor N2
• Frequency: 235 kHz
• Tilt: 12&deg
• Output: NMEA 2000
• Cable Length: 6M
• Depth Range: Up to 180M (594')
• Minimum Range: 0.5M (1.6')
• Power: 100 W RMS
• Shaft Length: 57mm (2.25")
• Housing Size: 51mm (2")
• Compatible Hull Thickness: 6.3 mm (0.25") to 54 mm (2 1/8")

Learn More:

For more information about Thru Hull Smart Sensors, please visit the Thru-hull Transducer Wikipedia page.

For more information about NMEA 2000, please visit the NMEA 2000 Wikipedia page.

Product: Airmar DT812PV 235kHz Thru Hull 12 Tilt Plastic Smart Sensor N2

Brand: Airmar

Model: DT812PV-235-N2

Shipping Weight: 1.25 lb

Shipping Height: 4.00 in

Shipping Width: 8.00 in

Shipping Length: 10.00 in
