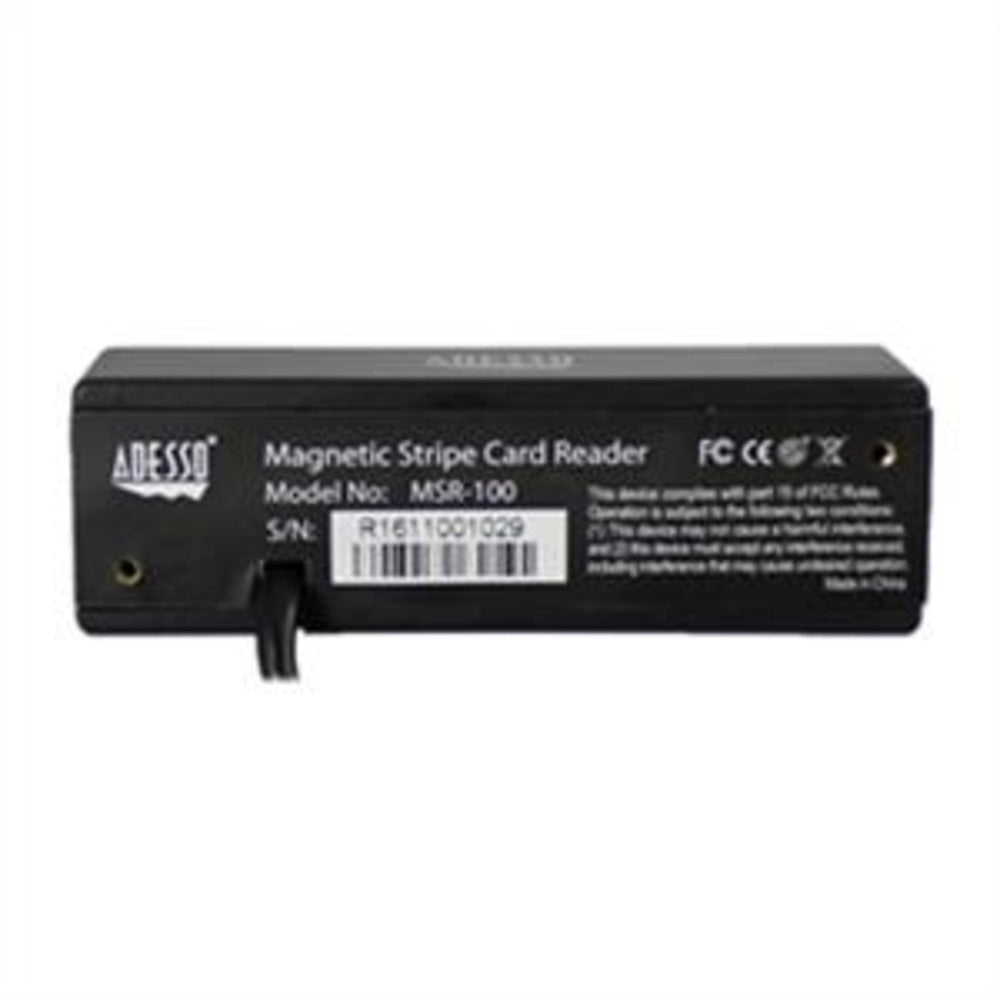

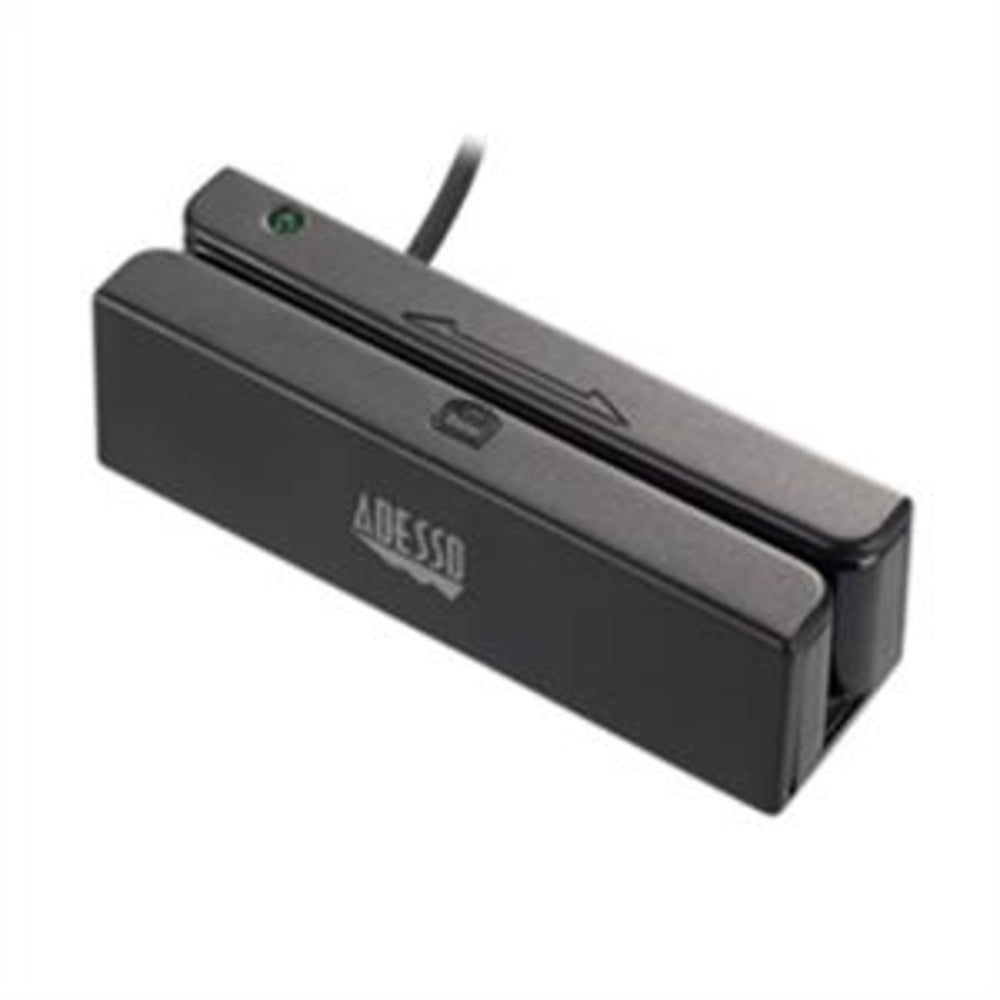

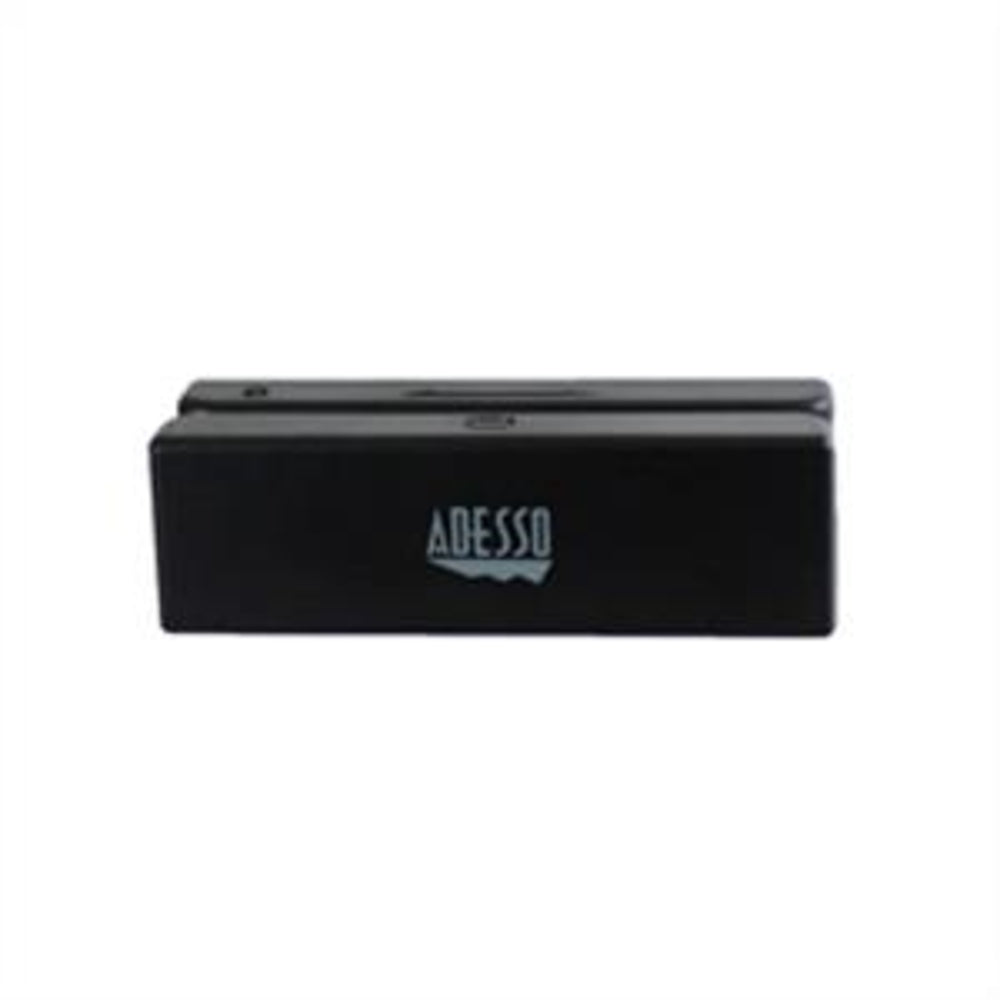

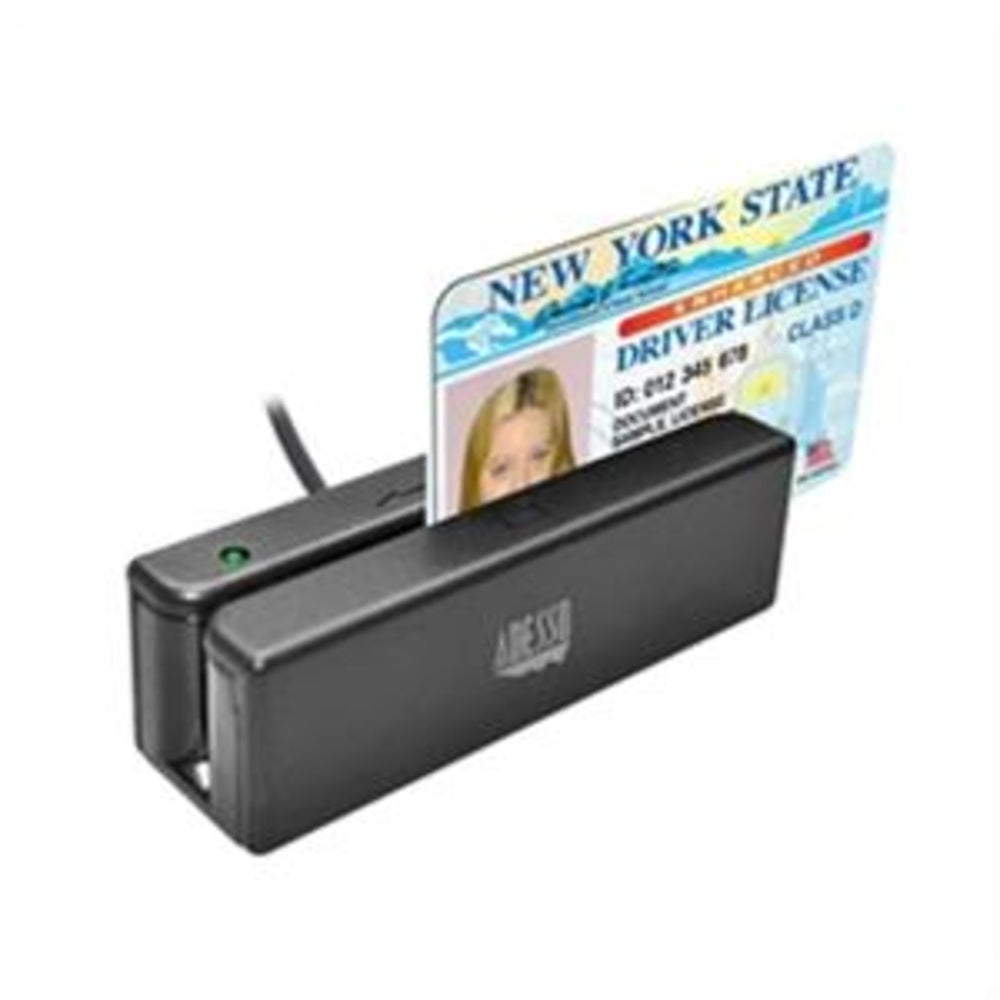

Adesso MSR-100 USB Magnetic Stripe Card Reader Bi-Directional 3Track

The Adesso MSR-100 USB Magnetic Stripe Card Reader is a versatile device that allows you to read and transmit data from any magnetic card that is swiped. With its excellent Electro-Static discharge and electromagnetic compatibility, it can be used in various areas such as POS terminals, poster terminals, access monitoring, and attendance records.

Features:

• Magnetic Stripe Reader (MSR): The MSR makes credit card transactions a breeze, making it a perfect Point of Sale feature for any POS setup.
• Bi-Directional: Swipe in any direction with accuracy and convenience, without any difference in readings or limitations.
• Up to 500,000 Passes with ISO-conforming Cards: The MSR-100 has a long lifespan of over 500,000 swipes of ISO cards, ensuring accurate readings for years.
• Single, Dual, or Three Track Capability: This card reader reads up to 3 tracks of data simultaneously, including custom formats such as 7-bit encoding on all 3 tracks.

Specifications:

• Interface: USB
• Encode Mode: F2F
• Standard: ISO7810, ISO7811-1/2/3/4/5
• Certification: FCC, CE
• Compatible Operating Systems: Windows 2000 / XP / Vista / 7 / 8 / 10
• Data Format: According to the user's requirements
• Card Swipe Speed: 10-140cm/s
• Life Circle of the Head: 500,000 times
• Coercive Force: 300-4000oe
• The Density of Magnetic Stripe:
  • Track 1 - 210BPI with max 75 characters
  • Track 2 - 210BPI with max 75 characters or 75BPI with 37 characters
• Environment:
  • Working Temperature: 0-40&degC
  • Working Humidity: 10%-90%
  • Working Voltage: DC+5V +/-5%
  • Working Current: 50mA
  • Storage Temperature: -20-50&degC
• Item Dimension (LxWxH): 6 x 4 x 2 inches
• Weight: 1.00 lb
• Warranty Information: NA

Learn More:

• Magnetic Stripe Card
• Point of Sale
• ISO/IEC 7810
• Federal Communications Commission (FCC)
• CE Marking

Product: Adesso Msr-100 Magnetic Stripe Card Reader Usb Standalone Bi-Directional 3Track

Brand: Adesso

Model: MSR-100

Shipping Weight: 0.30 lb

Shipping Height: 1.70 in

Shipping Width: 3.40 in

Shipping Length: 4.60 in
