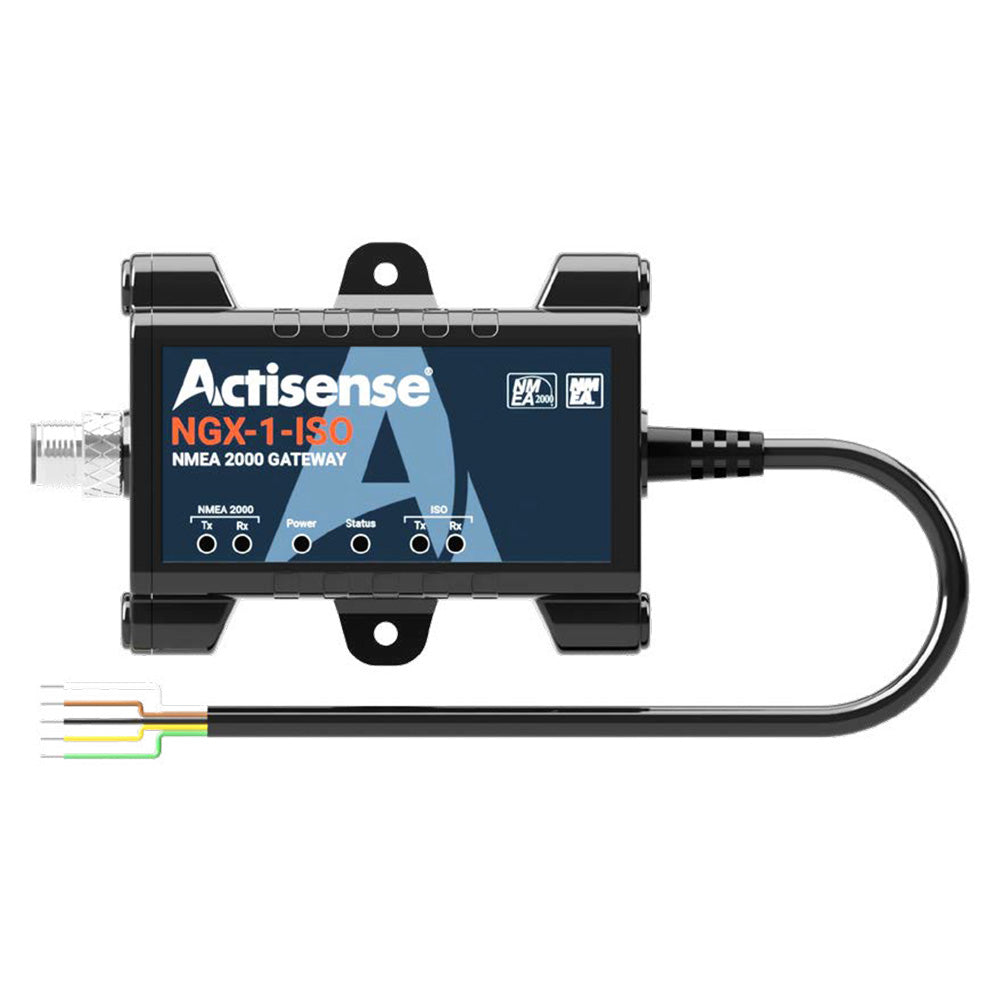

Actisense Ngx-1-Iso NMEA 0183 to N2K Gateway with PC Interface

The Actisense Ngx-1-Iso NMEA 0183 to N2K Gateway with PC Interface is an intelligent gateway that converts NMEA 0183 data to NMEA 2000 (and vice versa), allowing seamless sharing of information between devices from the two standards. This gateway creates the possibility of upgrading some of the vessel's electronics to NMEA 2000 while keeping the remaining NMEA 0183 devices, helping to reduce the initial upgrade cost.

The ISO variant of the Actisense Ngx-1-Iso NMEA 0183 to N2K Gateway features OPTO-Isolation on the input and groundbreaking ISO-DriveTM technology on the output, ensuring the safety of connected devices. This variant also connects easily to NMEA 0183 devices with a dedicated pair of data wires for transmit and receive, allowing for bi-directional data sharing if required.

The Actisense Ngx-1-Iso NMEA 0183 to N2K Gateway is low power, powered directly from the NMEA 2000 network, eliminating the need for an independent power supply. It also features diagnostic LEDs on both input and output, as well as an integrated 0.75m ISO cable for added convenience.

Advanced configuration using the Actisense Toolkit allows for setting Tx/Rx lists and Tx rates, and the gateway supports fast-heading at 10Hz with a data transfer rate of up to 230,400 baud. Additionally, the Actisense Ngx-1-Iso NMEA 0183 to N2K Gateway integrates seamlessly with Raymariner products using the STNG-A06045 adaptor cable.

Features:

• ISO version has OPTO-isolated input and ISO-Drive output for safely interfacing with NMEA 0183 or RS232/RS422.
• Advanced configuration using the Actisense Toolkit allows Tx/Rx lists and Tx rates to be set.
• Supports fast-heading at 10Hz.
• Up to 230,400 baud rate data transfer rate.
• Integrated 0.75m ISO cable.
• Diagnostic LEDs on both input and output.

Specifications:

• Input: NMEA 0183
• Output: NMEA 2000
• Power: Low power, powered directly from NMEA 2000 network
• Advanced Configuration: Actisense Toolkit for setting Tx/Rx lists and Tx rates
• Support: Fast-heading at 10Hz
• Data Transfer Rate: Up to 230,400 baud

Learn More

For more information, visit the NMEA 0183 Wikipedia page and the NMEA 2000 Wikipedia page.

Product: Actisense Ngx-1-Iso NMEA 0183 to N2K Gateway with PC Interface

Brand: Actisense

Model: NGX-1-ISO

Shipping Weight: 0.35 lb

Shipping Height: 2.00 in

Shipping Width: 6.00 in

Shipping Length: 6.00 in
