Supermicro CSE-825MBTQC-R802LPB Cs 2U 3X3.5Hs Sas Sata 800W Black Brown Box

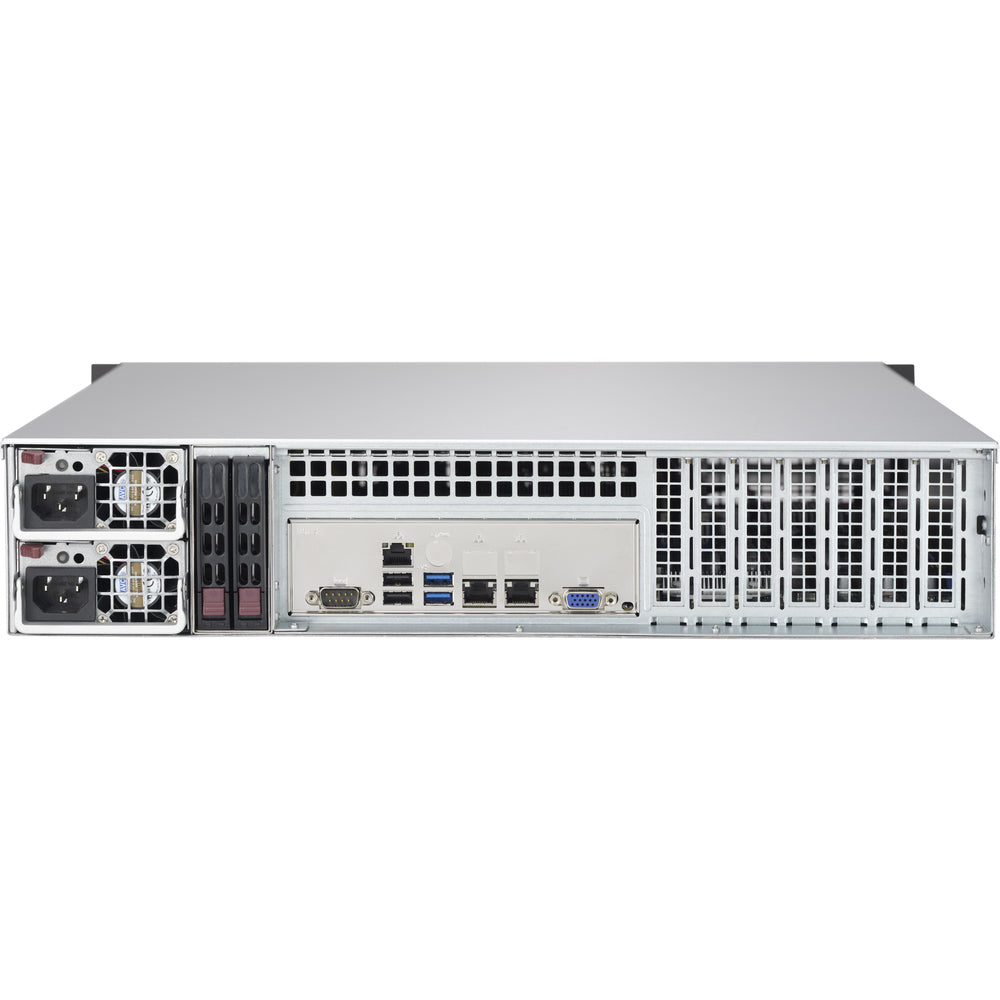

The Supermicro CS CSE-825MBTQC-R802LPB 2U 3x3.5HS SAS SATA 800W Black Brown Box is a high-performance server chassis designed to support maximum motherboard sizes of EE-ATX 13.68" x 13", E-ATX 12" x 13", and ATX 12" x 10". It features 3 hot-swap SAS/SATA drive bays with SGPIO and optional 2.5" hot-swap SAS/SATA drive bays with full SES-II support on SAS motherboards. The 3-port SC825M SAS3 12Gbps TQ backplane supports up to 3x 3.5-inch SAS3/SATA3 HDD/SSD. The chassis also includes a 1U 800W Redundant Power Supply, 7 low-profile expansion slots, and high-performance PWM fans for optimal cooling. This product is suitable for dual and single Intel and AMD processors and comes in a sleek black color.

Specifications

• Form Factor: 2U chassis supports for maximum motherboard sizes - EE-ATX 13.68" x 13", E-ATX 12" x 13", ATX 12" x 10" motherboards
• Processor Support: Dual and Single Intel and AMD processors
• Available Color: Black
• Expansion Slots: 7 low-profile expansion slot(s)
• Drive Bays:
  • 3 x 3.5" hot-swap SAS/SATA drive bay with SGPIO
  • Optional 2 x 2.5" hot-swap SAS/SATA drive bay w/ full SES-II support on SAS motherboards
• Backplane: 3-port SC825M SAS3 12Gbps TQ backplane, support up to 3x 3.5-inch SAS3/SATA3 HDD/SSD
• Peripheral Drives:
  • Optional 1 x slim DVD-ROM drive bay
  • Optional 2 x USB 2.0 ports
  • Optional 1 x COM port tray
• Front Panel:
  • Buttons: Power On/Off button, System Reset Button
  • LEDs: 2 Network Activity LEDs, HDD activity LED, Power Status LED, Power Fail LED, System Information LED
• Systems Cooling: 4 x 4cm high-performance counter-rotating PWM fan(s) with optimal fan(s) speed control
• Operating Environment (System):
  • Operating Temperature Range: 5&degC - 35&degC (41&degF - 95&degF)
  • Non-Operating Temperature Range: -40&degC - 70&degC (-40&degF - 158&degF)
  • Operating Relative Humidity Range: 8% - 90% (non-condensing)
  • Non-Operating Relative Humidity Range: 5% - 95% (non-condensing)
• Power Supply:
  • 1U 800W Redundant Power Supply 76mm width, W/PMbus, Titanium
  • Power Efficiency: 96%
  • Total Output Power and Input: 800W with Input 100 - 240Vac, 800W with Input 200 - 240Vdc
  • AC Input Frequency: 50-60Hz
  • Output Type: Backplanes (gold finger)
  • +12V: Max: 66A (100Vac - 240Vac), Max: 66A (200 - 240)
  • +5Vsb: Max: 4A / Min: 0A
  • Power Distributor: PDB-PT825-8824, O/P: 12V/75, +5V Max: 30, +3.3V Max: 24, -12V Max: 0.6
  • Certification: 80 Plus Titanium (certification pending)
• Regulatory (Power Supply): BSMI, CCC, CE/EMC, FCC class A, TUV/CB, UL/CUL
• Item Dimension (L x W x H): 33 x 24 x 10
• Weight: 57.00lb
• Warranty Information: 1 Year
