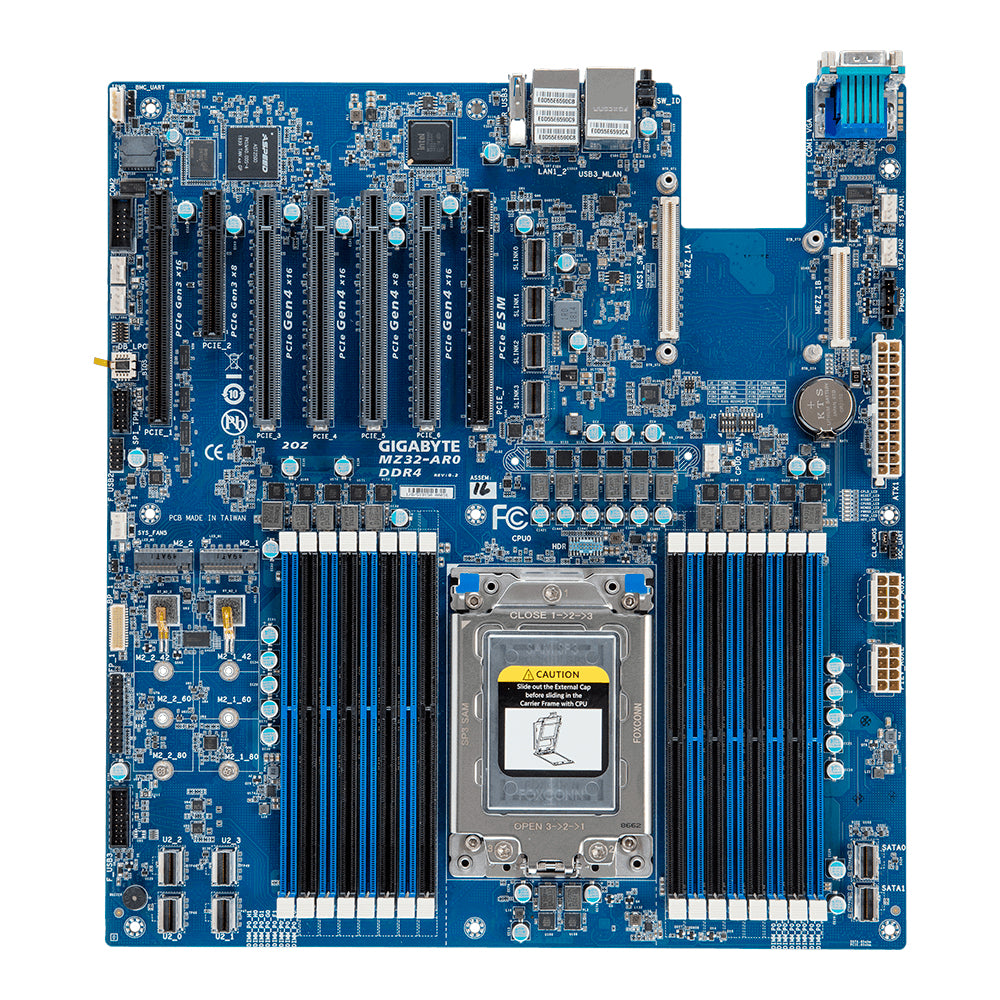

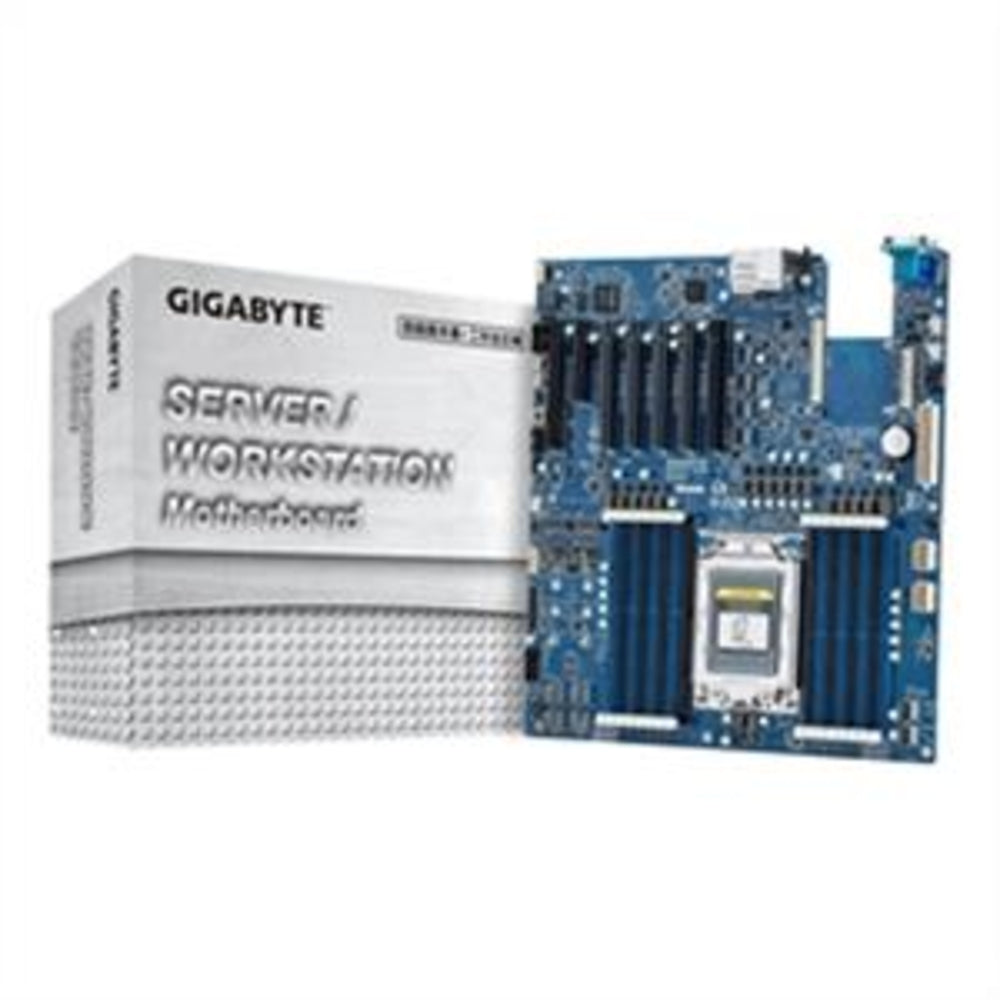

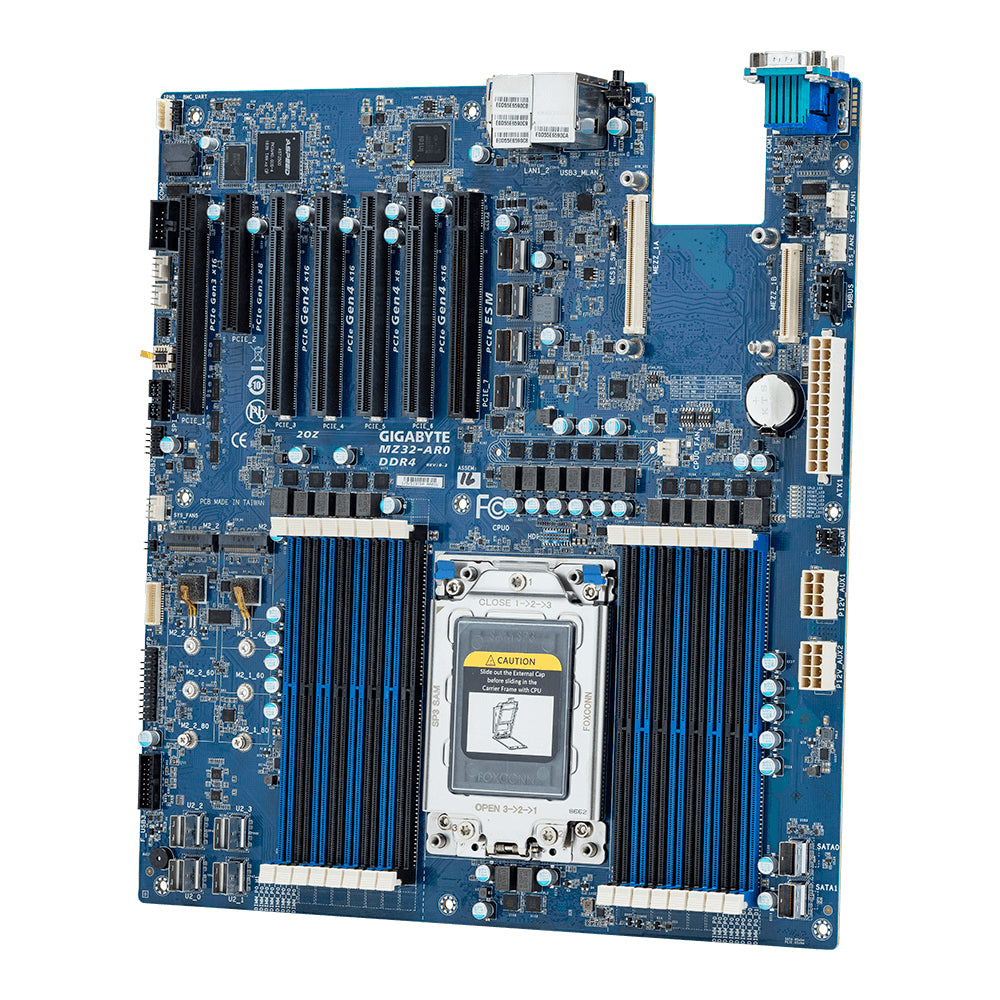

Gigabyte MZ32-AR0 AMD EPYC 7002 SP3 DDR4 PCIe EATX Server Motherboard

The Gigabyte MZ32-AR0 server/workstation motherboard Socket SP3 Extended ATX System on Chip is a high-performance motherboard designed to meet the demands of big data analytics, HPC, and cloud computing. It features the AMD EPYC 7002 Series Processor (Rome) which provides incredible compute, IO, and bandwidth capabilities. Built on 7nm advanced process technology, this motherboard supports up to 64 cores per CPU and features PCIe Gen 4.0 with a bandwidth of up to 64GB/s.

Features:

• Processor manufacturer: AMD
• Processor socket: Socket SP3
• Compatible processor series: AMD EPYC
• Number of processors supported: 1
• Processor number of cores supported: 64
• Thermal Design Power (TDP): 240
• Lithography: 7
• Trusted Platform Module (TPM): Yes
• RoHS compliance: Yes
• PCI Express x8 (Gen 3.x) slots: 1
• PCI Express x16 (Gen 3.x) slots: 6
• Number of M.2 (M) slots: 2
• Supported memory types: DDR4-SDRAM
• Number of DIMM slots: 16
• Supported memory clock speeds: 2933, 3200
• Maximum internal memory: 128
• Memory channels: Octa
• Hard drive interface: M.2, Serial ATA III, Serial Attached SCSI (SAS)
• Number of hard drives supported: 14
• On-board graphics adapter model: Aspeed AST2500

Learn More:

AMD EPYC Wikipedia

Product: Gigabyte MZ32-AR0 AMD EPYC 7002 SP3 DDR4 PCIe EATX Server Motherboard

Brand: Gigabyte

Model: MZ32-AR0
