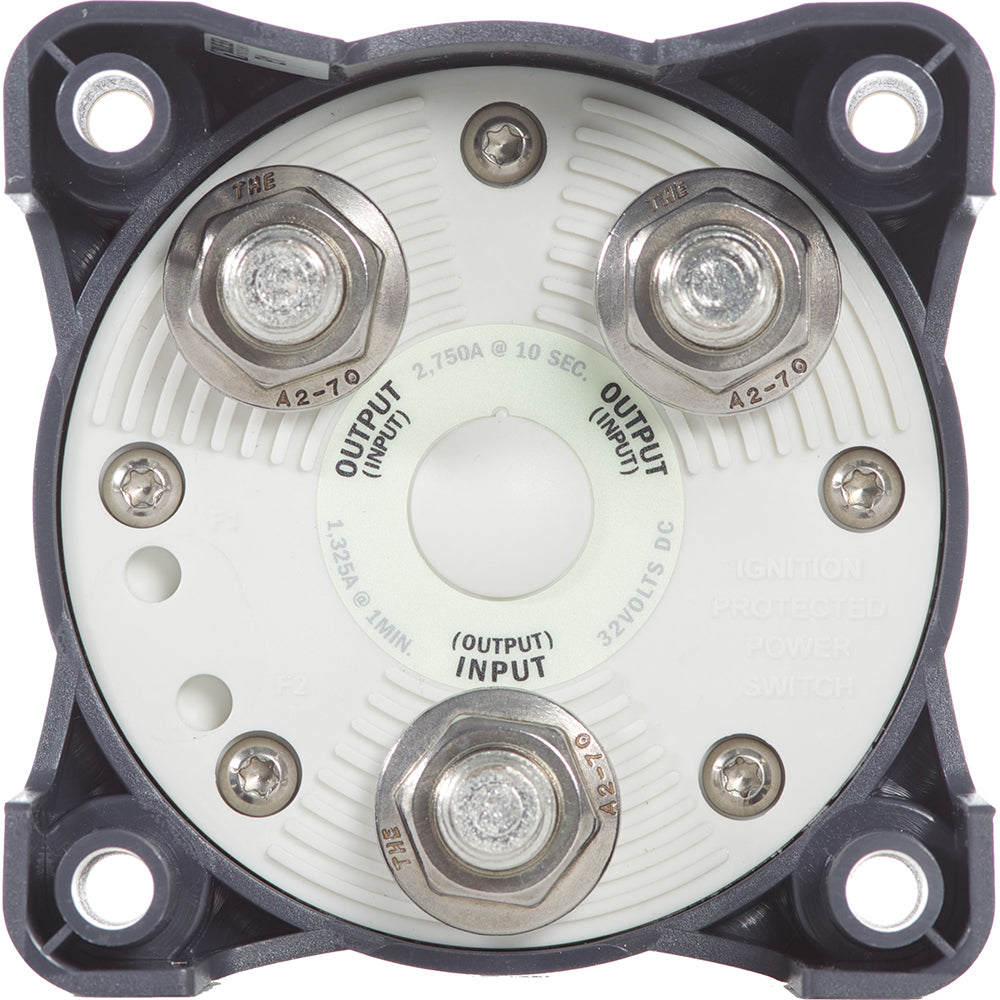

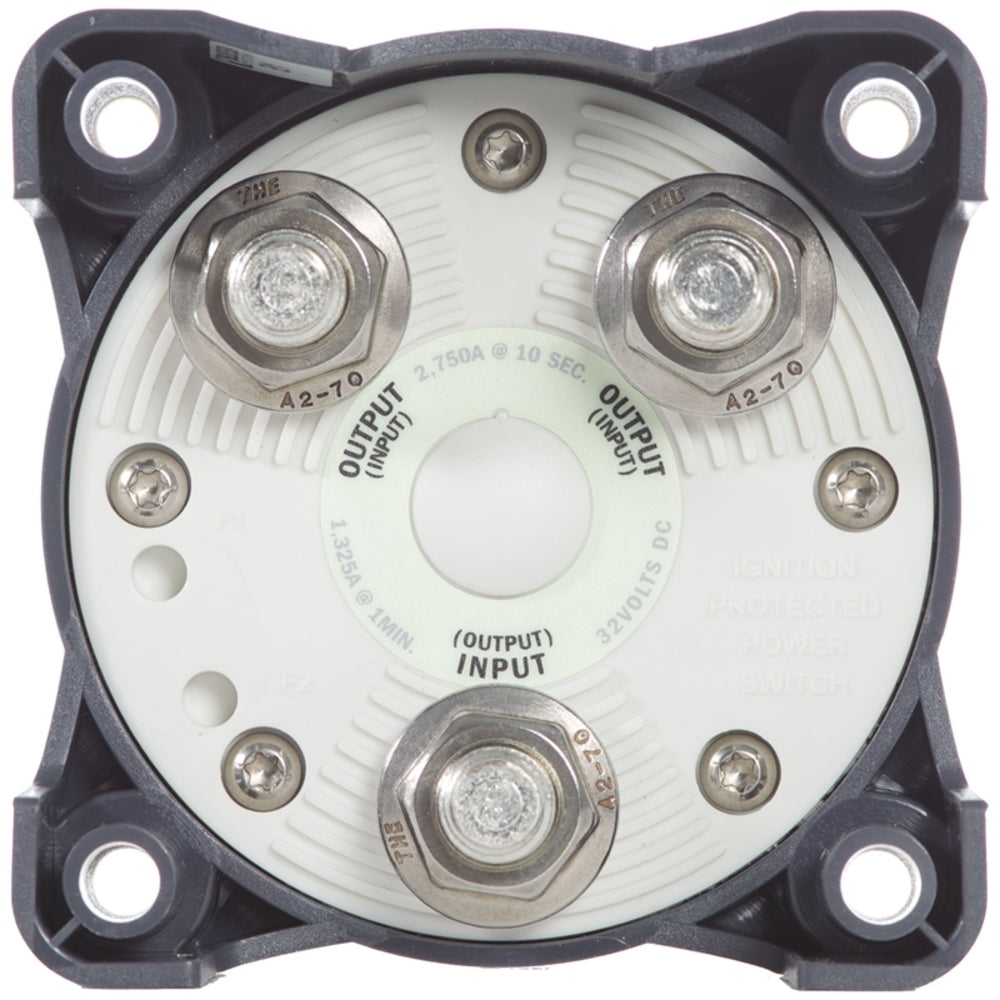

Blue Sea Systems 3000 HD-Series Battery Switch Single Circuit On/Off

MPN: 3000-BSS

SKU: 0632085030001

Shipping Weight: 1.30 lb

Sale price
$77.15
Regular price
$131.34
You save
$54.19 (42%)
Taxes and shipping calculated at checkout
Ready to Ship: 59 In Stock - Ships Out Fast!

Frequently Bought Together

We Accept

Amazon
American Express
Apple Pay
Diners Club
Discover
Meta Pay
Google Pay
Mastercard
PayPal
Shop Pay
Venmo
Visa

Free Shipping & Returns

No Minimum Purchase Required

90-Day Returns

100% hassle free

Note: We Only Offer Shipping Across The US

Have a question?

HD SERIES BATTERY SWITCH (BLUE SEA SYSTEMS)

The HD Series Battery Switch by Blue Sea Systems is a high-quality and reliable battery selector switch designed for maximum conductivity and corrosion resistance. It features tin-plated copper studs that accept up to 4/0 AWG battery cables and 1/2" (M12) ring terminals. The 7/8" (22mm) stud length allows for multiple cable terminals, and the one-piece terminal stud design ensures a secure connection that never loosens over time.

This battery switch is compatible with most Perko and Guest low amperage battery switch hole patterns, making it versatile and easy to install. Whether you prefer surface, rear, or front panel mounting, the case design of the HD Series Battery Switch offers multiple mounting options to suit your needs.

The switch positions of this battery switch are tactilely indicated, allowing you to easily determine the knob position by feel. It is also waterproof, rated IP66, making it resistant to water projected in powerful jets. Additionally, it is ignition protected, making it safe for installation aboard gasoline-powered boats.

The make-before-break contact design of the HD Series Battery Switch allows for seamless switching between battery banks without any power interruption. This feature ensures a smooth and uninterrupted power supply, especially in situations where multiple batteries are used.

Features:

  • Tin-plated copper studs for maximum conductivity and corrosion resistance
  • Accepts up to 4/0 AWG battery cables
  • Studs accept 1/2" (M12) ring terminals
  • 7/8" (22mm) stud length accepts multiple cable terminals
  • Blue Sea Systems one-piece terminal stud design never loosens over time
  • Fits most Perko and Guest low amperage battery switch hole patterns

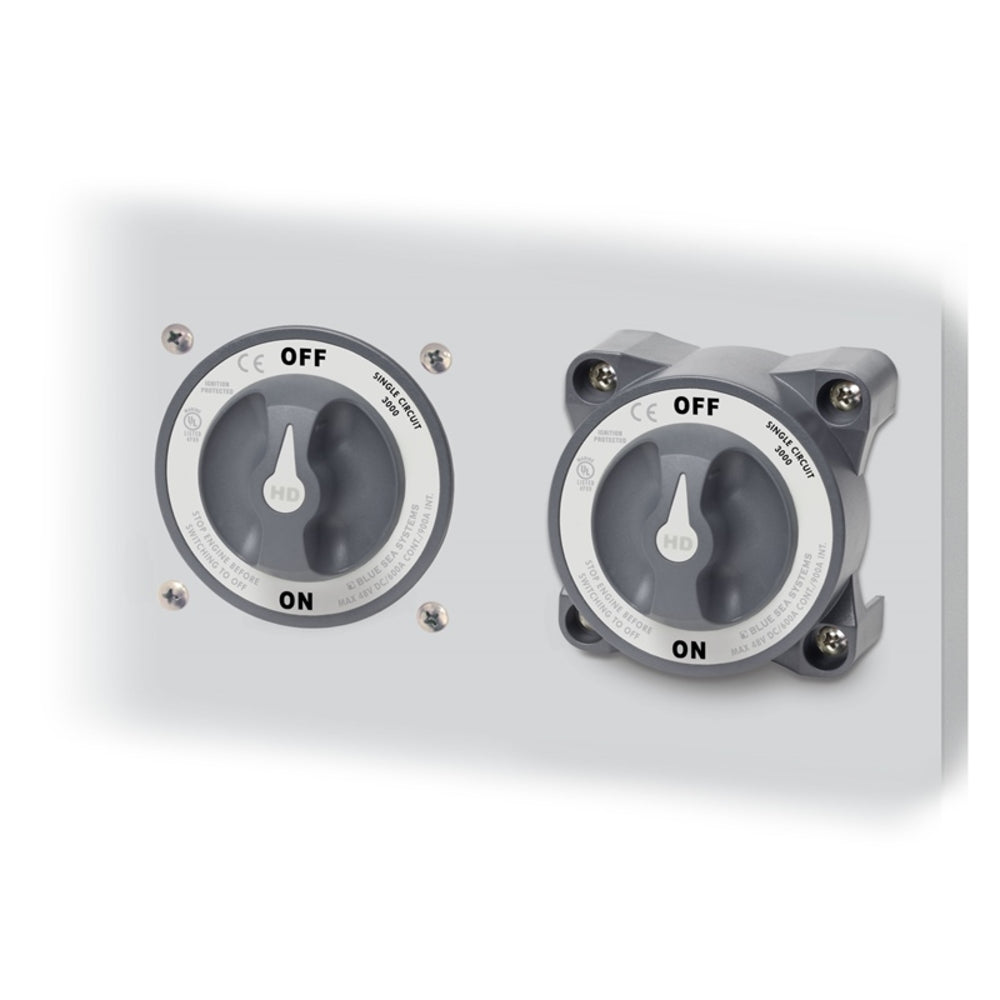

  • Case design allows surface, rear, or front panel mounting options
  • Tactile indicator conveys knob position by feel
  • Waterproof — rated IP66 from water projected in powerful jets
  • Ignition protected—safe for installation aboard gasoline powered boats
  • Make-before-break contact design allows switching between battery banks without power interruption

Specifications:

  • Switch Type: Selector 4 Position
  • Color: Grey
  • Switch Positions: 4
  • Battery Combine: Yes
  • Alternator Field Disconnect: No
  • Maximum Voltage: 32V DC
  • Terminal Stud Torque: 220 in-lb (24.86 Nm)
  • Continuous Rating: 500A
  • Intermittent Rating: 700A (5 min)
  • Cranking Rating 30 sec: 1600A
  • Battery Inputs: 2
  • Cable Clearance For 4/0 AWG Cables: 1.10in (27.94 mm)
  • Cable Quantity to Meet Ratings: Two Cables / Terminal
  • Cable Size to Meet Ratings: 4/0 AWG (120mm)
  • Mounting Holes: Accept 1/4" (M6) Screw
  • Terminal Stud Size: 1/2" (M12)

Learn More:

Product: Blue Sea Systems 3000 HD-Series Battery Switch Single Circuit On/Off

Brand: BLUE SEA

Model: 3000-BSS

Shipping Weight: 1.30 lb

Shipping Height: 2.90 in

Shipping Width: 6.37 in

Shipping Length: 8.62 in
